Waterproof Stage Rental LED Display High Definition Outdoor For Event Living Show
Pixel Pitch 3.91mm Outdoor Waterproof Rental LED Display With 500 x 500mm / 500x1000mm Cabinet
Features
1 ) Ultra-thin and Super-light: only 9KG per cabinet of 500mm W*500mm H and 15 KG per cabinet of 500mm W*1000mm H and depth is only 80mm, can stand on floor independently.
2) 500*1000mm cabinet can work with our 500*500mm die-casting aluminum cabinet so the height of LED screen can be both 1m and 0.5m
3) The appearance is very simple and elegant,looks very high end
4) With specially designed fast lock system, easy to install and dismantle
5) The new structure design enables diversified installation to meet the hanging-up and stacking requirements.
6) The tolerance is less than 0.2mm so the gap between adjacent cabinet can be made to minimum.Surface is very flat,viewing angle is very wide.
7) High refresh rate with NOVA control system,no scaning line when photographed.
8) Due to the light weight and low power consumption, it can reduces the labor cost,operating cost and transportation cost
9) 16 bit color showing very clear and vivid video and images.
10) Good thermal design, excellent heat dissipation.
Specification:
| BOR-Ⅲ-3 | BOR-Ⅲ-4 | |
| Physical Pitch | 3.91mm | 4.81mm |
| Pixel Configuration | SMD1921 | SMD2727 |
| Pixel Density | 65,536 pixels/㎡ | 43,264 pixels/㎡ |
| Module Dimensions(W x H) (mm) | 250 x 250 | 250 x 250 |
| Panel Dimensions (mm) | 500 x 500 x 80 / 500 x 1000 x 80 | 500 x 500 x 80 / 500 x 1000 x 80 |
| NO. of Modules Per Panel (W x H) | 2 x 2 / 2 x 4 | 2 x 2 / 2 x 4 |
| Physical Resolution of Module (W x H) | 64 x 64 | 52 x 52 |
| Physical Resolution of Panel (W x H) | 128 x 128 / 128 x 256 | 104 x 104 / 104 x 208 |
| Panel Material | Die-Casting Aluminum | Die-Casting Aluminum |
| Single Cabinet Weight | 9 / 15 kg/panel | 9 / 15 kg/panel |
| Processing | 16bit | 16bit |
| Colours | 281 trillion | 281 trillion |
| Contrast Ratio | 4,000 : 1 | 4,000 : 1 |
| Average Power Consumption | 75 /150 W /panel | 75 /150 W /panel |
| Max Power Consumption | 225 /550 W /panel | 225 /550 W /panel |
| Operating Temp/Humidity | -20℃ - 60℃ / 10℃ - 60℃ | -20℃ - 60℃ / 10℃ - 60℃ |
| Storage Temp/Humidity | -30℃ - 60℃ / 10℃ - 60℃ | -30℃ - 60℃ / 10℃ - 60℃ |
| Refresh Rate | ＞1,920 Hz | ＞1,920 Hz |
| Brightness | ≥6,000nits | ≥6,000nits |
| Horizontal Viewing Angle | 160° | 160° |
| Vertical Viewing Angle | 140° | 140° |
| Expected Lifetime | 100,000 Hrs | 100,000 Hrs |
| Max Stacking | 20/10 | 20/10 |
| Max Hanging | 20/10 | 20/10 |
| Servicing | Front / Rear | Front / Rear |
| IP Rating (Front/Rear) | IP 65 / IP 54 | IP 65 / IP 54 |

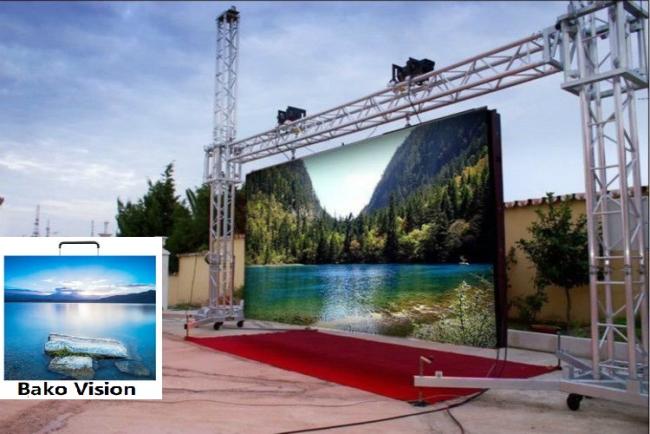

Case:
Pre-sale service
1. Reply enquiries in 24 hours.
2. Market research and forecast for customer.
3. Provide professional solutions based on customer's requirement.
4. Offer sample and all document as customers required.
5. Other services, such as factory visiting and so on.
In-sale service
1. Tracking report of production.
2. Quality test report for every order.
3. Photos and videos as per customer's requirement.
After-sale service
1. Lifetime maintenance and software upgrade.
2. Complaint respond period not exceed 24 hours, maintenance guidance and problem solution supplied in 48 hours.
3. Free technician training.
4. Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance manual and control system software CD and so on.
5. Engineer guide installation onsite if needed.
