Flexible P16 Outdoor Full Color LED Display Stadium Perimeter Waterproof IP65
Flexible P16 Outdoor Full Colo Stadium Perimeterr LED Display Waterproof IP65
P16 Stadium Perimeter LED Display , Outdoor Full Color Waterproof IP65 and 2 years warranty
Feature
1. Soft Mask
Soft mask design delivers good protection to the players and also decreases damage to LEDs.
2. Bigger pixel pitch, Long view distance, High definition, Good display vision
3. All weather designs
With an IP65 rating, our cabinets offer ventilation and protection from rain or water damage.
4. Superior Electrical Features

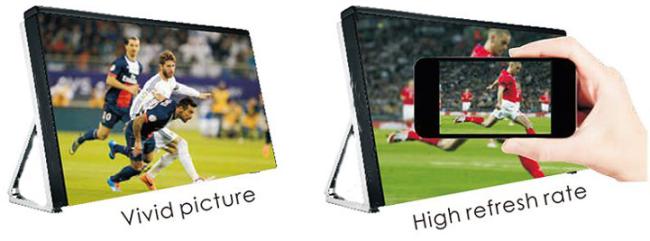

Vivid and brilliant colors
16 Bit signal processing, 2500-4000Hz refresh rate
5. Supports full front maintenance.
Power supply and receiving card can be taken off and replaced in front of cabinet for maintenance by which you can use more convenient
Specifications
| BSP-16 | |
| Physical Pitch | 16mm |
| Pixel Configuration | SMD3535 |
| Pixel Density | 3,906 pixels/m² |
| Module Dimensions(W*H)(mm) | 256*128 |
| Panel Dimensions(mm) | 1280*896*187 |
| NO. of Modules Per Panel (W*H) | 5*7 |
| Panel Material | Steel/ Aluminum |
| Colors | 281 trillion |
| Weight (kg/m²) | 70/50 |
| Processing | 16 bit |
| Refresh Rate | >1920 Hz |
| IP Rating | IP65/ IP54 |
| Viewing Angle | V:160 degree H: 140 degree |
| Expected Lifetime | 100,000 Hrs |
| Operating Temp/Humidity | -20ºC-50ºC/ 10%-90% |
| Storage Temp/Humidity | -20ºC-50ºC/ 10%-90% |
| Physical Resolution of Module(W*H)(mm) | 16*8 |
| Physical Resolution of panel(W*H)(mm) | 160*56 |
| Avg./ Max. Power Consumption | 360/900W/ panel |
| Servicing | Front/Rear |
High Refresh Rate 1920Hz outdoor 16mm Stadium Led Sport Perimeter Screen Flicker Free are patented designed for outdoor stadium, IP 65 waterproof, it's refresh rate reach 1920Hz, create perfect image quality even facing HD camera. It's also easy to set up and use, helping customer save labor cost and time, widely applied for all kinds of sport stadium.
Stability
1.) Connectors for power cables ensure stability of the power supply and voltage.
2.) Our cable connectors guarantee perfect signal communication.

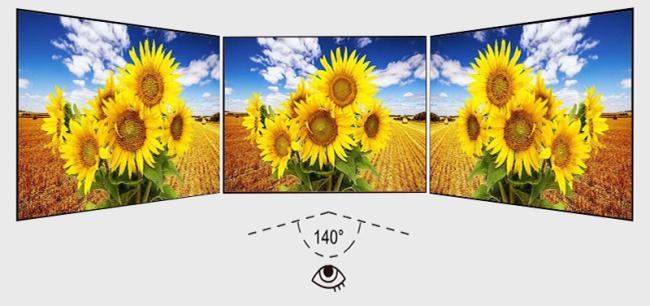

Wide viewing angle.
SMD LED panel makes the viewing angle Horizontal Viewing Angle 160° and Verical Viewing Angle 140° .
Details:
1. Football and basktball sports perimeter large led screen display
2.Our company specailly design ,fastly to connecting each cabinet and let the screen fixed stand stable on the ground
3. 24/7 Online support service
4. Software rubber mask , no worry hurt when player hit on the screen
5. Lift time service always, No worry on afterservice
6. High quality raw material used like Nationstar lamp, Nova controller, MBI IC etc.
About us
Why choose BAKOVISION?

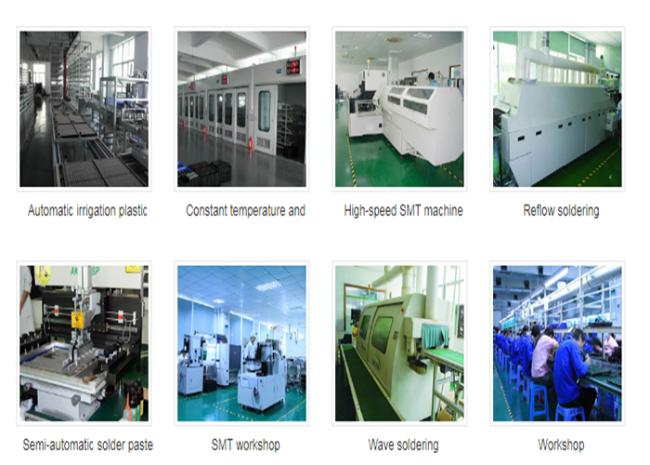

1. Strict processing procedures makes perfect product. Every production procedure, we have QC to check the quality
2.more than 10 years experience in led display industry, we have most talented engineers to design best products for our clients;
3. Top quality machines to make top quality products;
4. Most competitive price make our led displays are afordable.
Our avantages:
- The unit price depends on the quantity, we can offer you at a competitive price.
- Your inquiry related to our products or prices will be replied in 24hours.
- Well-trained and experienced staffs to answer all your enquiry regarding products.
- Distributorship are offered for your unique design and some our current models.
- Protection of your sales area, ideas of design and all your private information.
Get in Touch
Have questions about our products or want to discuss a custom order? Our team is ready to help you.
