Slim Outdoor Fixed LED Display Curtain P25 Waterproof 6500 Nits Screen 3840 Hz

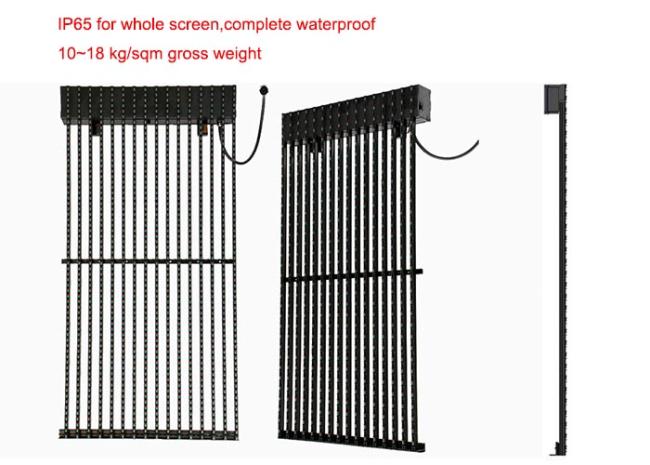

P25 Slim Outdoor Fixed LED Display Curtain Use Waterproof 6500 Nits Screen
Usually they are mounted on the wall of the high building displaying advertising contents. The pixel pitch range is from P15 to P50
Features:
1. lower power consumption ,longer lifetime,can effectively reduce the power consumption 50%;Natural air cooling ,no need cooling equipment,less noise;Low carbon environmental protection for clients to save money for power.
2. Hollow design, lower wind resistance.
3. 40%-60% lighter than traditional one, reduce the structure load and installation cost.
4. Both front and rear accessible for maintenance,easy to install and save space
Parameters:
| Pixel Pitch | 25mm | 25mm(H),35mm(V) | 25mm(H),50mm(V) | 31.25mm |
| LED configuration | 1R1G1B | |||
| Pixel Density | 1,600pixel/m² | 1,120pixel/m² | 800pixel/m² | 1,024pixel/m² |
| Unit Size | ≧1500 x 250mm | |||
| Resolution of Unit | 60 x 10 | 60 x 7 | 60 x 5 | 48 x 8 |
| Panel Material | Aluminum | |||
| Cabinet Weight | 15kg/m² | 10.6kg/m² | 8.5kg/m² | 15kg/m² |
| Grey Level | 16 bit(281 trillion colors) | |||
| Contrast Ratio | 2000 : 1 | |||
| Average Power Consumption | 150w/m² | 115w/m² | 85w/m² | 107w/m² |
| Max Power Consumption | 450w/m² | 345w/m² | 255w/m² | 329w/m² |
| Refresh Rate | 3840 Hz | |||
| Brightness | 7500 nits | 6500 nits | 5000 nits | 6500 nits |
| Viewing Angle(H/V) | 120 ° / 60 ° | |||
| Life Span | 100,000 Hours | |||
| Servicing | Front / Rear | |||
| IP rating | IP67 | |||
| Operating Temp/Humidity | -30℃~60℃ / 10%~90% | |||
| Storage Temp/Humidity | -40℃~85℃ / 10%~95% | |||
| Certification | CCC,CE,ETL,FCC,TUV | |||

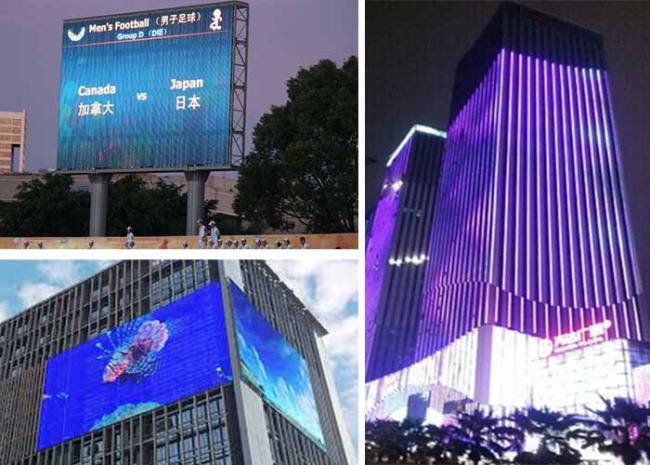

Cases:
About Bako Vision:
LED Vision Technology Limited , started in Shenzhen in 2005, a world class manufacturer of technologically advanced LED displays, focusing on high end professional customers among domestic and overseas markets. BAKOVISION is fully capable to provide the tailor work of OEM, ODM, creative LED models beside of standard LED screens.
BAKO VISION contains of experienced team leaders and each of them has been working in LED display industry over 10 years. All of our R&D, Production, Sales, Technical Support depts….are running efficiently and smoothly by our great team work, moreover, delivering qualified product and offering timely pre-after service are also assured by BAKO VISION team.
FAQ:
1. How shall I make the payment?
We accept T/T,T/C and Western Union.
2. How can I choose a proper product?
Then we need to clarify some questions firstly:
A: Where will you install this display?Outdoor or indoor/Fixed or rental?
B: How do you plan to control it?By USB or Computer?
C: What context do you want to display?
3. How do you ensure the quality?
A: We have been in LED display manufacture for more than 10 years and own our professtional team.
B: From LED to module,to cabinet,to screen and anything like power supply and control system,we have a QC team to control at every step.
C: Everytime before delivery,there will be aging testing for several days to ensure normal working.You are also welcomed to check the products in our factory.
D: We offer 2~5 years warranty and 18/7 online engineering help.
