Waterproof IP65 Full Color Outdoor LED Display SMD P5.95mm Rental Application
SMD P5.95mm Waterproof IP65 Full Color Outdoor LED Display For Rental Application
Products features

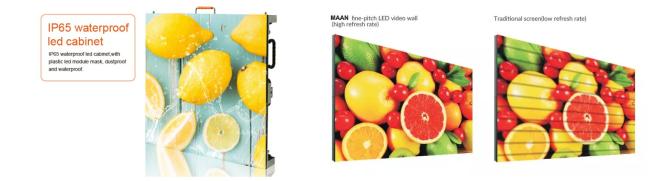

1.High Ingress protection:IP65/IP54(front/rear).
2.Equipped with exclusive quick assembly components for easy large screen assembly.
3.High resolution could guarantee superior performance even with small screen size.
4.Seamless splicing :Give you a better visual experience.
5.Support a series of detection functions, for example detection of cables failure, detection whether the door of cabinets closed or not, fans` speed monitoring, three-way voltage monitoring and temperature monitoring etc.
6.Compatible with front and rear maintenance mode, optional for pre-magnetic maintenance and post-screw maintenanceSelf-locking connection for second speed installation
Parameter
| BOR-III-5 | |
| Physical Pitch | 5.95mm |

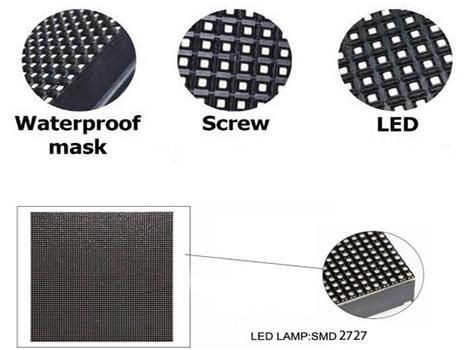

| Pixel Configuration | SMD 2727 |
| Pixel Density | 28,224 pixels/ m² |
| Module Dimensions(W*H)(mm) | 250*250 |
| Panel Dimensions(mm) | 500*500*80/500*1000*80 |
| NO.Of Modules Per Panel (W*H) | 2*2/2*4 |
| Panel Material | Die-Casting Aluminum |
| Colors | 281Trillion |
| Processing | 16 Bit |
| Physical Resolution of Module(W*H)(mm) | 42*42 |
| Physical Resolution of Panel(W*H)(mm) | 84*84 / 84*168 |
| Single Cabinet Weight | 9/15 kg/ panel |
| Average Power Consumption | 75/ 150W / panel |
| Max Power Consumption | 225/ 550w / panel |
| Brightness | >6,000 nits |
| Viewing Angle | H:160°/ V:140° |
| Operating Temp/ Humidity | -20ºC-60ºC / 10%-60% |
| Storage Temp/ Humidity | -30ºC-60ºC / 10%-60% |
| Expected Lifetime | 100,000 Hrs |
| Servicing | Front / Rear |
| IP Rating(Front/Rear) | IP65 / IP 54 |
| Max Stacking and Hanging | 20/10 |
| Refresh Rate | >1920 HZ |
Pruduct details

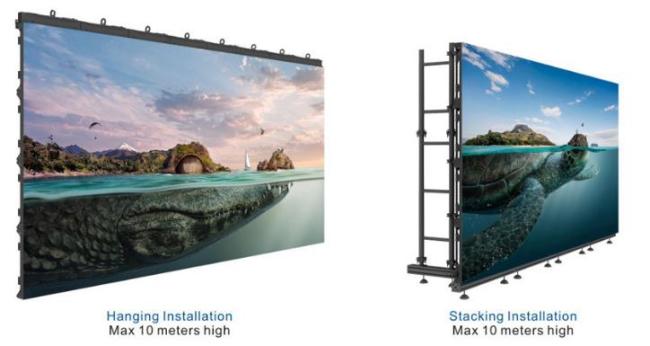

Hanging and stacking installation both available.
Rental die-casting aluminum structure:Rock solid, not easy to deform.
Seamless splicing : give you a better visual experience.
Good quality:All products have passed CE, ROHS, FCC certification.
Lower power consumption: Average Power Consumption is 420w/m²,energy saving and environmental protection.

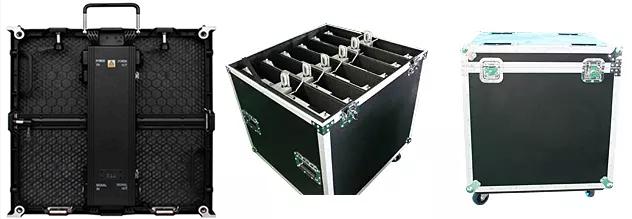

Packing- Flight case
Outdoor Rental LED Display is really popular in today's market,it has various applications.

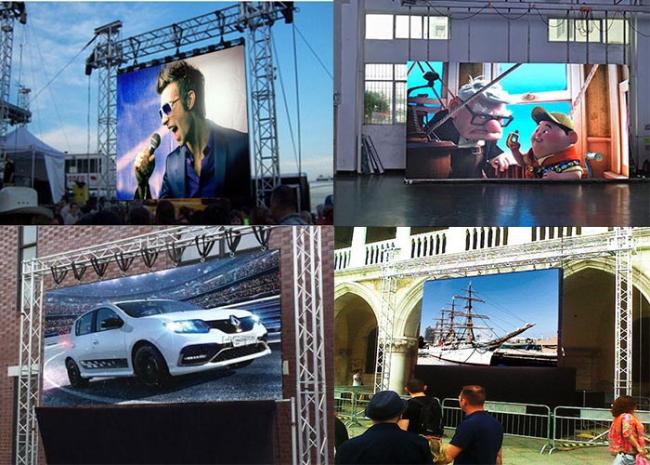

Application
Outdoor advertising, outdoor shows, entertainment occasion, event, stage, touring, show, festival, conference, exhibition, wedding, party, theme parks, etc.
Our company.
BAKO VISION product lines have include UHD fine pitch, I/O rental, I/O fixed install, transparent screen, advertising poster, foldable screen, flexible screen, curtain, floor LED, perimeter display… meanwhile, based on our experienced R&D team and comprehensive management, we are always open and been proficient in breaking new model and tooling for customized solutions as well as creative products.
Feedback
1. We rely on our product quality and customer satisfaction to succeed. Therefore, your feedback is extremely important, please leave good feedback if you get satisfied with our goods and service.
2. We care about our valued customers, and will always try to help you. Please give us the opportunity to resolve any problem. We understand the concerns and frustrations you might have, and will try our best to resolve the issues.
3. Please email us before leaving any negative feedback or opening any dispute on the site. We will help you to resolve the problem.
Tips
* Package:Wooden package, Flight case.
* Shipment:By road,sea and air
* Delivery time:20-25 working days
* Payment:T/T, 30% deposits, 70% balance before delivery
* Shipping port:Shenzhen,China
* Warranty time:2 years
