Glass Wall Transparent LED Screens 1920Hz High Brush Clear Image 5500 Nits IP30

Price Negotiable
Price: 500~1600US$/sqm
MOQ: 1 sqm
Delivery Time: 15~20 days
Brand: Bako Vision
Product Description



Glass Wall High Transparent LED Screen 1920Hz High Brush Clear Image







Features:





1. Transparency difference

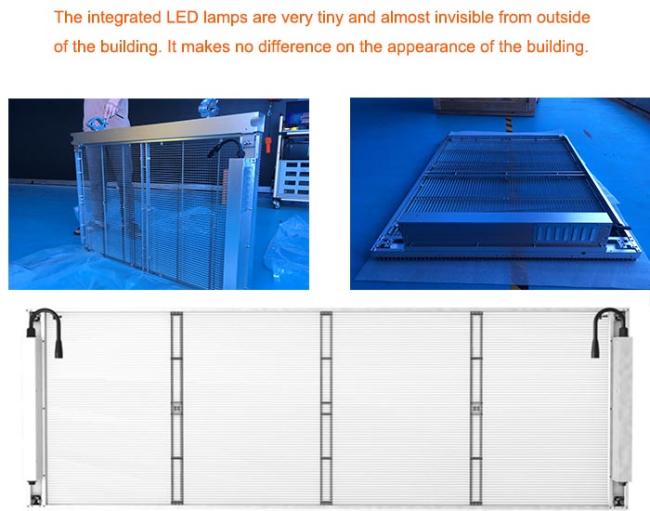

Transparent LED displays offer unparalleled transparency (60% to 80%). Traditional LED window displays block sunlight, so your indoor areas need to rely on unnatural lighting and shoppers can’t see in. Transparent LED displays are virtually unnoticeable, from five meters and more away, and offer your interior space the best of both words: displays that let natural sunlight filter inside, while allowing outside passers-by to see in.



2. Lightweight and compact


Designed with efficiency and functionality in mind, transparent LED displays are constructed using lightweight engineered aluminum and proprietary LED technology. This means our display panel weigh as little as 10 kilograms per square meter, making them lower cost to transport and easier and safer to assemble.

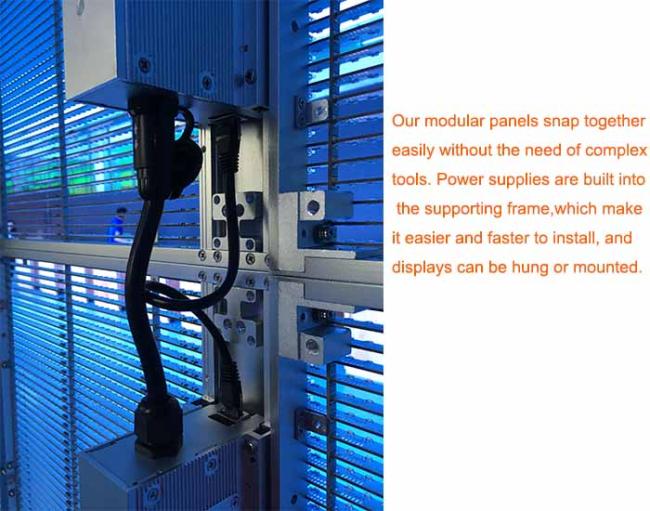

Elegantly constructed making your displays clean and even the noise-free power box is hidden within the display support frames.



3. The highest density for the highest resolution


Select the right pixel pitch for your display—from 3.75x6.67mm pixel up to 20x20mm pixel. Our super high-density pixel pitch means sharper, more attractive, and noticeable imagery on your transparent display screen.



4. Easy to maintain


Your transparent LED display requires minimal maintenance—LED strips have a long life expectancy and can be replaced quickly and easily when needed without the need to replace the entire module. With repairs done in minutes and at a very low-cost, your digital LED sign will last for years.

















Parameters:



Pixel Pitch 3.75x6.67mm 3.75x8mm 5x6.67mm 5x8mm
Pixel Configuration SMD 1921 SMD 1921 SMD 3528 SMD 3528
Pixel Density 39,900 pixls/m² 33,250 pixls/m² 30,000 pixls/m² 25,000 pixls/m²
Module Dimension 480 x 320 mm
Panel Dimention 960 x640 mm
Resolution of Module 128 x48 128 x 40 96 x 48 96 x 40
Panel Material Aluminum
Weight 11 kg/m² 10.2 kg/m² 10 kg/m² 9.5 kg/m²
Gray Scale 16 bits(281 trillion colors)
Conntrast Ratio 2000 : 1
Average ower Consumption 207 W/sqm 201 W/sqm 209 W/sqm 203 W/sqm
Max ower Consumption 690 W/sqm 670 W/sqm 696 W/sqm 670 W/sqm
Refresh Rate 1920 Hz
Brightness 5500 nits
Expected Lifetime 100,000 Hrs
IP Rating(front/rear) IP30
Servicing Rear
Certification

CCC,CE,ETL,FCC

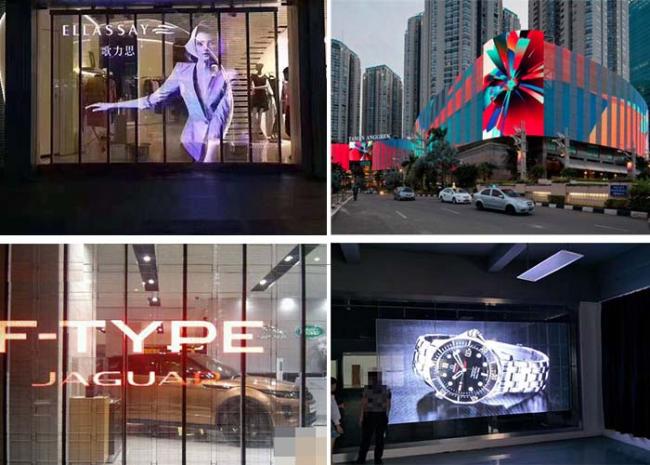

 Where can we use it?









About Our Company:



LED Vision Technology Limited  , started in Shenzhen in 2005, a world class manufacturer of technologically advanced LED displays, focusing on high end professional customers among domestic and overseas markets. BAKOVISION is fully capable to provide the tailor work of OEM, ODM, creative LED models beside of standard LED screens.



BAKO VISION contains of experienced team leaders and each of them has been working in LED display industry over 10 years. All of our R&D, Production, Sales, Technical Support depts….are running efficiently and smoothly by our great team work, moreover, delivering qualified product and offering timely pre-after service are also assured by BAKO VISION team.



BAKO VISION product lines have include UHD fine pitch, I/O rental, I/O fixed install, transparent screen, advertising poster, foldable screen, flexible screen, curtain, floor LED, perimeter display… meanwhile, based on our experienced R&D team and comprehensive management, we are always open and been proficient in breaking new model and tooling for customized solutions as well as creative products.
