Refresh Rate 2880Hz Led Poster Display Full Color Aluminum With 2 Years Warranty
P1.9-P2.5mm Ultra Slim And Form Changeable Digital Ads LED Poster Display
Poster LED Display Player Advantages:
1. Light and portable design enables quick installation and different installation modes.
2. Vivid and colorful picture provide fantastic visual effect. Brightness increased 3 times compared with conventional LCD (400 nits). Easy Operation only needs 3 minutes, guaranteeing wonderful user experience.
3. Delicate appearance and customized border color attract more attention, and numbers of visitors increase by 42% at least.
Products Feature
1,Ultra slim and light-weight body, easy to lift up
The tickness of Our this series poster screen only 35mm. While others 45mm.making installation easy and fast .
2, HD visual experience
1.9 mm and 2.5 mm pixel pitch, high refresh rate (2880Hz) and brightness (1000 nits) provide users with perfect display effect.
3,Equipped with fast-locking system assures 100% no tools installation, which makes it easy to assemble,dismantle and maintenance.
4. Various work modes
Besides single display work mode, multiple led display screen can be combined together creatively to bring a variety of display effect and improve the advertising efficiency.
5.Front service ability
Module replacement from front side with a handle magnet
Specifications
| BP-1 | BP-2 | |
| Physical Pitch | 1.9 mm | 2.5mm |
| Pixel Configuration | SMD1010 | SMD2020 |
| Pixel Density | 276,676 pixels/m² | 160,000pixels/m² |
| Module Dimensions(W*H)(mm) | 280*210 | 280*210 |
| Panel Dimensions(mm) | 572*1920*35 | 572*1920*35 |
| NO. of Modules Per Panel (W*H) | 2*9 | 2*9 |
| Panel Material | Aluminum | Aluminum |
| Colors | 281 trillion | 281 trillion |
| Sigle Cabinet Weight | 32kg | 32kg |
| Processing | 16 bit | 16 bit |
| Refresh Rate | >=2800 Hz | >=2800 Hz |
| IP Rating | IP40 | IP40 |
| Viewing Angle | 160°/140° | 160°/140° |
| Expected Lifetime | 100,000 Hrs | 100,000 Hrs |
| Operating Temp/Humidity | -10ºC-60ºC/10%-60% | -10ºC-60ºC/10%-60% |
| Storage Temp/Humidity | -30ºC-60ºC/10%-60% | -30ºC-60ºC/10%-60% |
| Physical Resolution of Module(W*H)(mm) | 147*110 | 112*84 |
| Physical Resolution of Whole Set(W*H)(mm) | 301*1010 | 228*768 |
| Avg/ Max Power Consumption | 250/750W/Set | 250/750W/Set |
| Servicing | Front | Front |
| Driving Method | 1/28 Dynamic Scan | 1/28 Dynamic Scan |
| Frame Rate | 60 fps | 60 fps |
Products details
The integration of the lamp and the driver IC, combined with the multi-circuit structure, achieved a uniform distribution of current, low power consumption, and rapid heat dissipation.

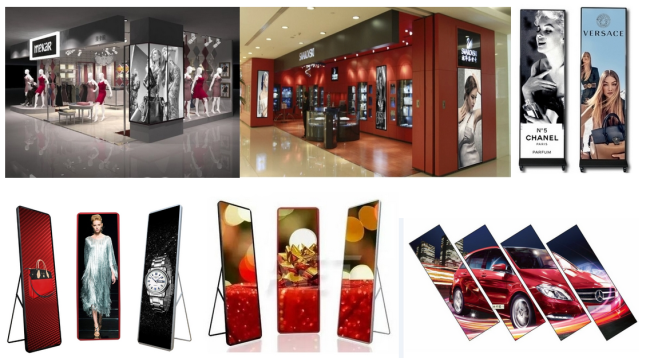

Variable Installation Ways and application
1. Wall Mounted
2.Hanging
3. Bracket Standing
4.Ground Standing / Multi-Screen Cascade
Proucts details
Packing
Flight case or Carry bag
Two pieces in one Flight case, Bottem shell have installed, save labor cost.
Carry bag easy to take.
About us
LED Vision Technology Limited , started in Shenzhen in 2005, a world class manufacturer of technologically advanced LED displays, focusing on high end professional customers among domestic and overseas markets. BAKOVISION is fully capable to provide the tailor work of OEM, ODM, creative LED models beside of standard LED screens.
Our avantages:
- The unit price depends on the quantity, we can offer you at a competitive price.
- Your inquiry related to our products or prices will be replied in 24hours.
- Well-trained and experienced staffs to answer all your enquiry regarding products.
- Distributorship are offered for your unique design and some our current models.
- Protection of your sales area, ideas of design and all your private information.
Tips
* Package: Wooden package, Flight case.
* Shipment:By road,sea and air
* Delivery time:20-25 working days
* Payment: T/T, 30% deposits, 70% balance before delivery
* Shipping port: Shenzhen,China
* Warranty time: 2 years
