P10 SMD Module Size 320X320mm Full Color 6500 Nits Outdoor Fixed Advertising Screen
P10 SMD Module Size 320X320mm Full Color 6500 Nits Outdoor Fixed Advertising Screen
Product Description:
2. Low consumption, stable performance, highly durable
3. High definition, high refresh rate 1,920Hz and 16bits gray scale, give you more colorful video and image.
4. Quick and accurate installation location type, suitable for many different installation environment
5. High screen flatness, location accuracy and seamless connection
6. Environmental adaptability, outdoor all-weather work, IP 65 waterproof.
Specifications, the catalogue can be download⇒
| BOF-10 | |
| Physical Pitch | 10 mm |
| Pixel Configuration | SMD 3535 |
| Pixel Density | 10,000pixels/m² |
| Module Dimensions(W*H)(mm) | 320*320 |
| Panel Dimensions(mm) | 1280*960*150 |
| NO. of Modules Per Panel (W*H) | 4*3 |
| Panel Material | Steel/ Aluminum |
| Colors | 281 trillion |
| Brightness | >6,500 nits |
| Weight (kg/m²) | 65/45 |
| Processing | 16 bit |
| Refresh Rate | >1920 Hz |
| IP Rating | IP65/ IP54 |
| Viewing Angle | V:160 degree H: 140 degree |
| Expected Lifetime | 100,000 Hrs |
| Operating Temp/Humidity | -20ºC-50ºC/ 10%-90% |
| Storage Temp/Humidity | -20ºC-50ºC/ 10%-90% |
| Physical Resolution of Module(W*H)(mm) | 32*32 |
| Physical Resolution of panel(W*H)(mm) | 128*96 |
| Avg./ Max. Power Consumption | 360/900W/ panel |
| Servicing | Front/Rear |
Outdoor rate
IP65 rating for front and rear
suitable brightness adjustable for outdoor day and night.
Strong and high bright LED
IP65 Waiterproof, you can click the photo as follow and then you will get the video. ↓↓↓↓↓↓↓↓
Control system
Front and Rear Maintence
1.Easy to assemble and dissemble with special hexagon wrench
2. All modules are cross color enhancing, and the edge compression is strong, not deformation, the flatness of display cabinet will be better

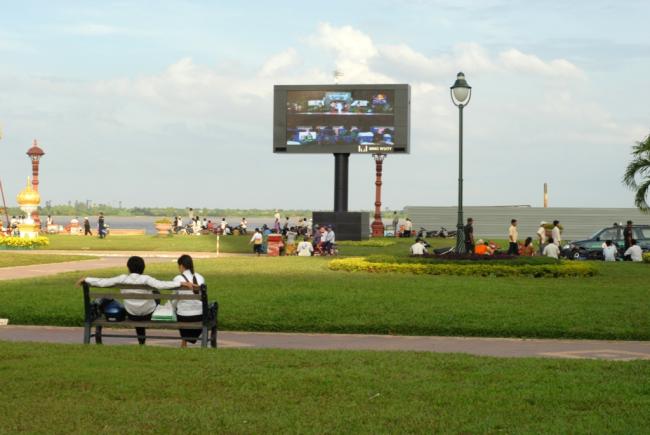

Widely application.
For 16:9 Aspect Ratio .Best view angle
Display brightness adjustable:According to changes in ambient light to adjust the brightness of the display (6500nit), to ensure that the human eye best viewing comfort and display while saving energy and environmental protection, greatly reducing your operating costs.
Main Export Markets:
- North America
- South America
- Europe
- Asia
- Mid East/Africa
- Pacific
Why choose BAKOVISION?
1. Strict processing procedures makes perfect product. Every production procedure, we have QC to check the quality;
2. more than 10 years experience in led display industry, we have most talented engineers to design best products for our clients;
3. Top quality machines to make top quality products;
4. Most competitive price make our led displays are afordable;
5. "Customer first" is our belief. We promise to offer best products w
ith good service for our clients;
