P5-P10mm WiFi/ 4G/USB/Cloud Control Outdoor Commercial Advertising Billboard
P5-P10mm Wifi/ 4G/USB/Cloud Control Outdoor Commercial Advertising Billboard
Key Specifications:
Outdoor Commerical Fixed LED Display:
- Pixel Pitch:P5,P6,P8,P10.
- Cabinet Size:Can be customized
- Relatively low cost (factory), meets your budget
- Stable capability, pass professional testing
- Easy installment and low maintenance cost
- Waterproof and dustproof: IP65
- Large viewing angle: H:140°, V:160°
- Good heat emission capability,Aluminum or steel cabinet
- Exported to 120+ countries .
Outdoor Commerical Fixed LED Advantages:
- Frequently-used outdoor full color led screen.
- High quality and brightness. Wide color space and long lifespan.
- Adopting high reliability and antistatic led chips from famous factory automatic equipment producing.
- Constant current, led panel and driving panel is designed separately,which improve reliability and maintainability.
- High quality sealed silicone , passing by water spraying test before delivery.
- High accuracy and numerical control metal plate cabinet.
Outdoor Commerical Fixed Specifications
| BOF-6 | BOF-8 | BOF-10 | |
| Physical Pitch | 6.67 mm | 8 mm | 10 mm |
| Pixel Configuration | SMD 2727 | SMD 3535 | SMD 3535 |
| Pixel Density | 22,500 pixels/m² | 15,625 pixels/m² | 10,000 pixels/m² |
| Module Dimensions(W*H)(mm) | 256*256 | 256*256 | 256*256 |
| Panel Dimensions(mm) | 1280*768*150 | 1280*768*150 | 1280*960*150 |
| NO. of Modules Per Panel (W*H) | 4*3 | 5*3 | 4*3 |
| Physical Resolution of Module (W*H) | 48*48 | 32*32 | 32*32 |
| Physical Resolution of Panel (W*H) | 192*144 | 160*96 | 128*96 |
| Panel Material | Steel/ Aluminum | Steel/ Aluminum | Steel/ Aluminum |
| Colors | 281 trillion | 281 trillion | 281 trillion |
| Brightness | >6,500 nits | >6,500 nits | >6,500 nits |
| Weight (kg/m²) | 65/45 | 65/45 | 65/45 |
| Processing | 16 bit | 16 bit | 16 bit |
| Refresh Rate | >1920 Hz | >1920 Hz | >1920 Hz |
| IP Rating | IP65/ IP54 | IP65/ IP54 | IP65/ IP54 |
| Viewing Angle | V:160 degree H: 140 degree |
V:160 degree H: 140 degree |
V:160 degree H: 140 degree |
| Expected Lifetime | 100,000 Hrs | 100,000 Hrs | 100,000 Hrs |
| Operating Temp/Humidity | -20ºC-50ºC/ 10%-90% |
-20ºC-50ºC/ 10%-90% |
-20ºC-50ºC/ 10%-90% |
| Storage Temp/Humidity | -20ºC-50ºC/ 10%-90% |
-20ºC-50ºC/ 10%-90% |
-20ºC-50ºC/ 10%-90% |
| Avg./ Max. Power Consumption | 360/900W/ panel | 360/900W/ panel | 360/900W/ panel |
| Servicing | Front/Rear | Front/Rear | Front/Rear |
Procesure Details
Supporting kinds of communication types like internet access, USB, 4G,WIFI and cloud control.
Light sensor , Automatically brightness adjustment, real-time display temp and humidity.
Main Export Markets:
- North America
- South America
- Europe
- Asia
- Mid East/Africa
- Pacific

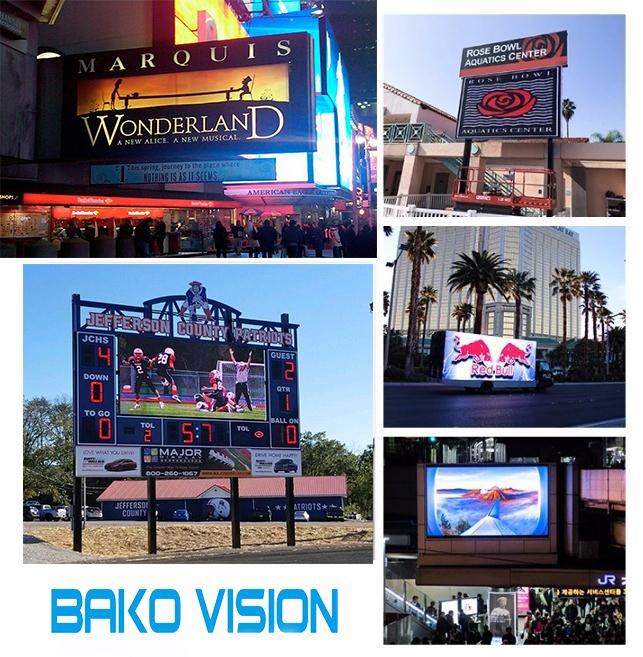

Widely Application:
Our products have been widely used in venues as banks, stock exchange centers, schools, telecommunications, customs, stadiums, studio, shopping malls, railways, airports, harbors, city squares, courts, schools, restaurants etc
Our company
LED Vision Technology Limited , started in Shenzhen in 2005, fully capable to provide the tailor work of OEM, ODM, creative LED models beside of standard LED screens.Main markets are among America, Europe, Middle East and Asia.
Tips:
Package: Wooden package, Flight case.
Shipment:By road,sea and air
Delivery time:20-25 working days
Payment: T/T, 30% deposits, 70% balance before delivery
Shipping port: Shenzhen,China
Warranty time: 2 years
Price term: EXW Shenzhen
Service:
1) Your inquiries related to our products or prices will be replied in 24H
2) Well-trained and experienced staffs to answer all your enquire in fluent English
3) Customized design is available, OEM and ODM are accepted
4) Protection of your sales area, ideas of design and all your private information
5) Technology training
(A) We provide the technical training for free, which contains the operation training and maintenance training in the factory
(B) We will send our engineers to your country if necessary.
