Outdoor Transparent Glass Led Display Curtain For Building Surface Advertising
Outdoor Transparent Glass Led Display Curtain For Building Surface Advertising
Curtain Transparent Glass Led Screen Quick Details:
1, Pixel Pitch:DIP Lamps.
2, Full colors: 281trillions.
3, Wide viewing angle: 120°/ 60°.
4, Input Voltage: AC110V/220V, 50/60Hz.
5, Standard cabinet size: 1500 x 250 mm, weight: 8.5kg/Sqm.
6, Recommended minimum viewing distance: 10m.
Curtain Transparent Glass Led Screen Application:
Waterproof IP67 Transparent Led Display are specially designed for being mounted on any building wall, applied for bank, large shopping mall, theatres, chain stores, hotels, and landmarks etc. It can achieve a great visual effect and adds creativity to the building design. It's 15kg lightweight, making it the perfect choice for creative designing company.
Curtain Transparent Glass Led Screen Features and Advantages:
1. Bright and visible
2. Light weight and ultra thin
The cabinet is only 15kg, requires little space for the installation
3. Stability and reliability
Using DIP led which is stability and reliability compare with SMD Led. High brightness and high refresh rate ≥3,840Hz
Up to 80% transparency rate allow natural lighting go inside the building.
5. Simple maintenance
Quick and simple, repairing Led without taking out single module or entire panel
6. Wide applications
All kinds of building with glass window or wall, for example, bank, large shopping mall, theatres, chain stores, hotels, and landmarks etc.
7. Easy and quick installation
Fast lock systems ensure efficient installation and efficient.
Curtain Transparent Glass Led Screen Specification:
| Physical Pitch | 25mm | 25mm (H), 35 mm (V) | 25mm (H), 50 mm (V) | 31.25mm | 31.25mm (H), 50 mm (V) |
| Pixel Configuration | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B |
| Pixel Density | 1,600 pixels/Square Meter | 1,120 pixels/Square Meter | 800 pixels/Square Meter | 1,024 pixels/Square Meter | 640 pixels/Square Meter |
| Unit Size (W x H) (mm) | ≥1500 x 250 | ≥1500 x 250 | ≥1500 x 250 | ≥1500 x 250 | ≥1500 x 250 |
| Panel Material | Aluminum | Aluminum | Aluminum | Aluminum | Aluminum |
| Weight | 15 kg/Square Meter | 10.6 kg/Square Meter | 8.5 kg/Square Meter | 15 kg/Square Meter | 9.6 kg/Square Meter |
| Processing | 16bit | 16bit | 16bit | 16bit | 16bit |
| Colours | 281 trillion | 281 trillion | 281 trillion | 281 trillion | 281 trillion |
| Contrast Ratio | 2,000 : 1 | 2,000 : 1 | 2,000 : 1 | 2,000 : 1 | 2,000 : 1 |
| Average Power Consumption | 150 W /panel | 115 W /panel | 85 W /panel | 107 W /panel | 67 W /panel |
| Max Power Consumption | 450 W /panel | 345 W /panel | 255 W /panel | 329 W /panel | 200 W /panel |
| Brightness | ≥7,500nits | ≥6,500nits | ≥5,000nits | ≥6,500nits | ≥4,000nits |
| Refresh Rate | ≥3,840 Hz | ≥3,840 Hz | ≥3,840 Hz | ≥3,840 Hz | ≥3,840 Hz |
| Horizontal Viewing Angle | 120° | 120° | 120° | 120° | 120° |
| Vertical Viewing Angle | 60° | 60° | 60° | 60° | 60° |
| Expected Lifetime | 100,000 Hrs | 100,000 Hrs | 100,000 Hrs | 100,000 Hrs | 100,000 Hrs |
| Servicing | Front / Rear | Front / Rear | Front / Rear | Front / Rear | Front / Rear |
| IP Rating (Front/Rear) | IP 67 | IP 67 | IP 67 | IP 67 | IP 67 |
| Operating Temp/Humidity | -30ºC - 60ºC / 10ºC - 90ºC | -30ºC - 60ºC / 10ºC - 90ºC | -30ºC - 60ºC / 10ºC - 90ºC | -30ºC - 60ºC / 10ºC - 90ºC | -30ºC - 60ºC / 10ºC - 90ºC |
| Storage Temp/Humidity | -40ºC - 85ºC / 10ºC - 95ºC | -40ºC - 85ºC / 10ºC - 95ºC | -40ºC - 85ºC / 10ºC - 95ºC | -40ºC - 85ºC / 10ºC - 95ºC | -40ºC - 85ºC / 10ºC - 95ºC |
| Certification | CCC, CE, ETL, FCC, TUV | CCC, CE, ETL, FCC, TUV | CCC, CE, ETL, FCC, TUV | CCC, CE, ETL, FCC, TUV | CCC, CE, ETL, FCC, TUV |

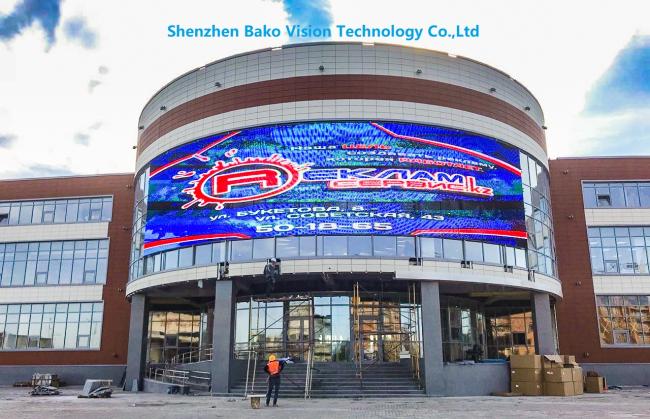

Curtain Transparent Glass Led Screen Case:
