HD Pixels Indoor Fixed LED Display P1.6mm SMD1010 480X480mm Chassis For Stage
P1.6mm HD Pixels Indoor LED Display 480mm X 480mm Chassis For Stage
Product Features:
• Small pixel pitch series, ultra high definition LED display, the high resolution brings delicate display effect.
• Wide color range, excellent color uniformity, no rainbow effect, broadcasting strong stability.

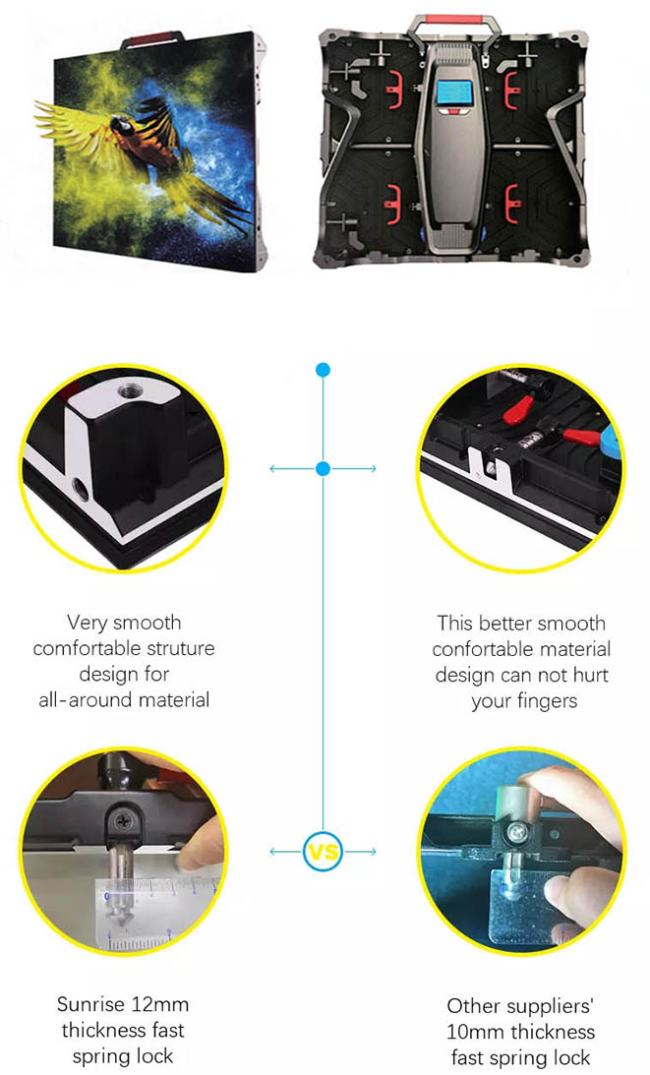

• Die-castting magnesium alloy cabinet, seamless, bezel-free, size-free splicing with adjusting accuracy 0.01mm.
• Metal cooling structure, magnesium alloy material ensures perfect heat dissipation, no noise and no fan.
• Perfect for indoor rental and fixed application, ultra light and thin, dual handles and quick lock desing, easy on-site installation.
Main Features
HD Pixels for Stage and Fixed Install
1. TUV EMC Certificated
2. Both Front and Rear Service Available
3. High Definition Indoor Display
4. 480mm X 480mm Chassis
Unsurpassed Color Uniformity
Unique color calibration process
Tight bin selection for LED wavelength
Deep black levels, contrast ratio 4000:1
Advantage
1.Goods be examined before delivery,Professional QC team.
2. Top Quality & Reasonable Price & Responsible After Service.
3. Deep black levels, contrast ratio 4000:1.
4. High refresh rate with NOVA control system,no scaning line when photographed.
Parameter
| BHD-P1.6 | |
| Physical Pitch | 1.667 mm |
| Pixel Configuration | SMD1010 |
| Pixel Density | 360,000 pixels/m² |
| Module Dimensions(W*H)(mm) | 240*240*80 |
| Panel Dimensions(mm) | 480*480 |
| NO. of Modules Per Panel (W*H) | 2*2 |
| Panel Material | Die-Casting Aluminum |
| Colors | 281Trillion |
| Processing | 16 Bit |
| Physical Resolution of Module(W*H)(mm) | 144*144 |
| Physical Resolution of Panel(W*H)(mm) | 288*288 |
| Single Cabinet Weight | 7 kg/panel |
| Average Power Consumption | 264 W/panel |
| Max Power Consumption | 680 W/panel |
| Brightness | 600-1000 nits |
| Viewing Angle | H:160°/ V:140° |
| Expected Lifetime | 100,000 Hrs |
| Servicing | Front/Rear |
| IP Rating(Front/Rear) | IP 40/IP21 |
| Scan Method | 1/32 |
| Refresh Rate | >2,880 Hz |
Pruduct details
Unsurpassed Color Uniformity
Unique color calibration process
Tight bin selection for LED wavelength
Deep black levels, contrast ratio 4000:1
Application Widely
P1.667 LED Modules are applied Widely in Stadiums, Advertisement, Banks, Securities exchange, Stations,Shoping malls Postal officees, Schools, Monitoring, Restaurants, Entertainment, Enterprises etc.
About us
LED Vision Technology Limited , started in Shenzhen in 2005, a world class manufacturer of technologically advanced LED displays, focusing on high end professional customers among domestic and overseas markets. BAKOVISION is fully capable to provide the tailor work of OEM, ODM, creative LED models beside of standard LED screens.
Pre-producing:
- Get complete requirements of clients.
- To do a thorough analysis.
- Offer a most reasonable and scientific solution.
- Customized design.
- Producing progress updating for clients
- Particular Installation CAD and Design Diagram for clients.
- 2 years free maintenance
- 7 days a week, 24 hours a day for 5 years on-line service for any technical support for any customers
- Free training for customers in factory
- Local Partner Installation Service
