IP65 6500Nits 90W/m² Outdoor Advertising LED Billboard Display Rear Service
IP65 6500Nits 90W/m² Outdoor Advertising LED Billboard Display Rear Service
Description:
1. SMD led encapsulation confirm wide view angle and good uniformity
2. Good waterproof IP65, hight brightness up to 6500nits, long life span>100000Hours
3. Traditional steel/aluminum cabinet,strong for transportation
4. Low power consumption, low noise created, energy-saving and good environment protection
5. Different kinds of installation way according to your needs and using places.
Parameters:
| BOF-B-4 | BOF-B-5 | BOF-B-6 | BOF-B-8 | |
| Physical Pitch | 4 mm | 5 mm | 6.67 mm | 8 mm |
| Pixel Configuration | SMD 1818 | SMD 2727 | SMD 2727 | SMD 3535 |
| Pixel Density | 62,500 pixels/m² | 40,000 pixels/m² | 22,376 pixels/m² | 15,625 pixels/m² |
| Module Dimensions (W × H) (mm) | 320 × 160 | 320 × 160 | 320 × 160 | 320 × 160 |
| Panel Dimensions (mm) | 960 × 960 × 150 | 960 × 960 × 150 | 960 × 960 × 150 | 960 × 960 × 150 |
| NO .of Modules Per Panel (W × H) | 3 × 6 | 3 × 6 | 3 × 6 | 3 × 6 |
| Physical Resolution of Module (W × H) | 80 × 40 | 64 × 32 | 48 × 24 | 40 × 20 |
| Physical Resolution of Panel (W × H) | 240 × 240 | 192 × 192 | 144 × 144 | 120 × 120 |
| Panel Material | Steel / Aluminum | Steel / Aluminum | Steel / Aluminum | Steel / Aluminum |
| Weight(m²) | 65/45 | 65/45 | 65/45 | 65/45 |
| Processing | 16 bit | 16 bit | 16 bit | 16 bit |
| Colours | 281 trillion | 281 trillion | 281 trillion | 281 trillion |
| Contrast Ratio | 2,000 : 1 | 2,000 : 1 | 2,000 : 1 | 2,000 : 1 |
| Average Power Consumption | 360 W/m² | 36 W/m² | 360 W/m² | 360 W/m² |
| Max Power Consumption | 900 W/ m² | 900 W/ m² | 900 W/ m² | 900 W/ m² |
| Average Power After Energy Saving | - | - | 90 W/ m² | 90 W/ m² |
| Max Power After Energy Saving | - | - | 230 W/ m² | 230 W/ m² |
| Brightness | ≥6500 nits | ≥6500 nits | ≥6500 nits | ≥6500 nits |
| Refresh Rate | ＞1,920 Hz | ＞1,920 Hz | ＞1,920 Hz | ＞1,920 Hz |
| Horizontal Viewing Angle | 160° | 160° | 160° | 160° |
| Vertical Viewing angle | 140° | 140° | 140° | 140° |
| Expected Lifetime | 100, 000 Hrs | 100, 000 Hrs | 100, 000 Hrs | 100, 000 Hrs |
| Servicing | Rear | Rear | Rear | Rear |
| IP Rating | IP 65 | IP 65 | IP 65 | IP 65 |
| Operating Temp/Humidity | -20℃-50℃ / 10%-90% | -20℃- 50℃ / 10%-90% | -20℃-50℃ / 10%-90% | -20℃ - 50℃ / 10% - 90% |
| Storage Temp/Humidity | -20℃-50℃ / 10%-90% | -20℃-50℃ / 10%-90% | -20℃-50℃ / 10%-90% | -20℃ - 50℃ / 10% - 90% |
| Scan Method | 1/8 Scan | 1/8 Scan | 1/10 Scan | 1/4 Scan |

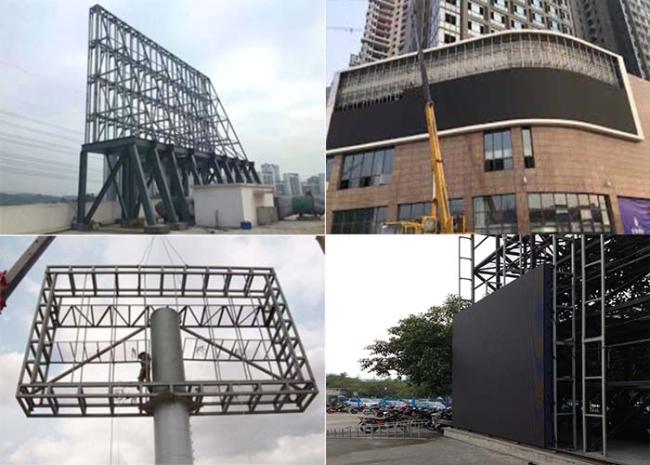

Project Reference:
Advantages:
With strict quality control process, from raw materials to finished products, all steps of indoor LED screen are supervised with guarantee of best quality.
IP65 protection level to ensure that the LED screen to work all day in outdoor environments and avoid being affected by the weather.
All sides could playadvertising to guarantee people on the street could see it clearly at different angles.
It can be shown at any time, communication, publicity coverage extensively,and interact with the audience at any time. At the same time get the best effect of advertising.
Our Promise:
24 hours response for your inquiry.
7 days per week to help you.
365 days after serbice support.
All lifetime guarantee and free charge within two years.
