P5 Waterproof Digital Outdoor LED Advertising Billboard Full Color for Street AD billboard and Building roof
Waterproof Outdoor Led Billboard for Advertising and Billboard
Quick Details:
1, Pixel Pitch: 5mm.
2, Full colors: 281trillions.
3, SMD, Wide viewing angle: 160°/ 140°.
4, Standard cabinet size: Customized, weight: 40kg/Sqm for steel frame.
5, Recommended minimum viewing distance: 5m.
6, Warranty: 2years.
Description:
Bako outdoor led digital billboards pixel include 4.81mm, 5mm,6.67mm, 8mm,10mm,16mm, within these pixels, 4.81mm is the most hot-selling and highest cost-effective series. Even you can use it on car as mobile screen.
Features and Advantages:
- High brightness from 6,500nits to 9,000nits, visible from every direction even face to direct sunshine.
- SMD LEDs ensure large viewing angle, up to 160° horizontally and 140° vertically.Image no distortion, no color cast in any angle within this range.
- Cabinet design lightweight, side handle for easy carrying and assemble job.
- IP65 waterproof and dust resistance, durable for any weather condition.
- Meanwell brand power supply, saving energy and high efficiency.
- Digital process: 16bits, contrast ratio 2,000:1, vivid color.
- Front access make easy maintenance.
![]()
- Fast lock system design guarantees a quick and easy installation.
- Intelligent control and player system by cloud technology.

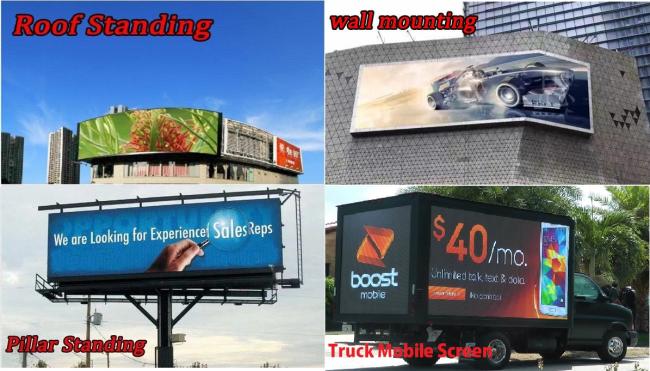

- Various use way, you can use it on building roof, or wall mounting on building etc.
Specification
| Physical Pitch | 5mm |
| Pixel Configuration | SMD2727 |
| Pixel Density | 40,000 pixels/square meter |
| Module Dimensions(W x H) (mm) | 320 x 160 |
| Panel Dimensions (mm) | 960 x 960 |
| Physical Resolution of Panel (W x H) | 64 x 32 |
| Panel Material | Steal / Aluminum |
| Processing | 16bit |
| Colours | 281 trillion |
| Contrast Ratio | 2,000 : 1 |
| Average Power Consumption | 360 W /panel |
| Max Power Consumption | 900 W /panel |
| Brightness | >6,500 nits |
| Refresh Rate | >1,920 Hz |
| Vertical Viewing Angle | 160° |
| Horizontal Viewing Angle | 140° |
| Expected Lifetime | 100,000 Hrs |
| Servicing | Front / Rear |
| IP Rating (Front/Rear) | IP 65 / IP 54 |
| Operating Temp/Humidity | -20ºC - 50ºC / 10ºC - 90ºC |
| Storage Temp/Humidity | -20ºC - 50ºC / 10ºC - 90ºC |

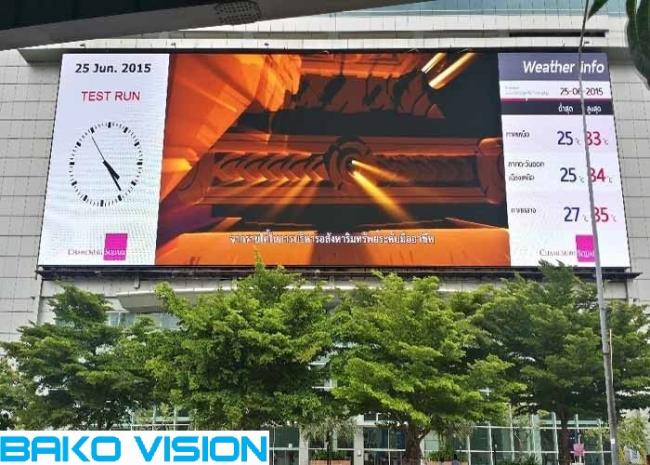

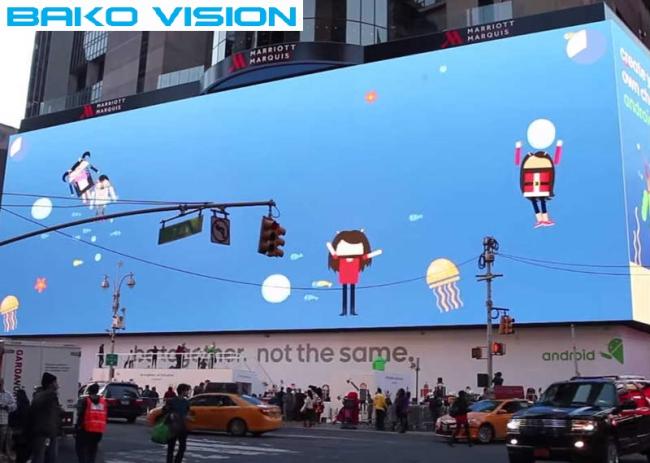

Case
FAQ
1. How to payment?
We accept the L/C, T/T.
2.What is the packing method?
We usually use plywood case or flight case.
3.How about the delivery time?
We will ship within 15-25 working days after you placed the order.
4.What's the warranty of your Screen?
We have a 2-year warranty for our led display screen, and 100,000 hours life span of the led lamps
Our services
Pre-producing
1. Get complete requirements of clients.
2. To do a thorough analysis.
3. Offer a most reasonable and scientific solution.
4. Customized design.
In producing
1. Producing progress updating for clients.
2. Particular installation CAD and design diagram for clients.
After service
1. 2 years free warrenty.
2. 7 days a week, 24 hours a day for 5 years on-line service for any technical support for any customers.
3. Can arrange engineer to go to your place to support your installation and free training.
