3500~7000 Nits Mobile LED Screen , Taxi LED Screen Waterproof Digital Advertising Billboard
3500~7000 Nits Mobile Taxi LED Screen Waterproof Digital Advertising Billboard
Description:
1. High Brightness
Taxi top led display enable to reach 7000nits by using high intesity outdoor LEDs to make sure brighter and clear enough under the direct sunlight.
2. Remote control anytime, anywhere
Advertising Management System;

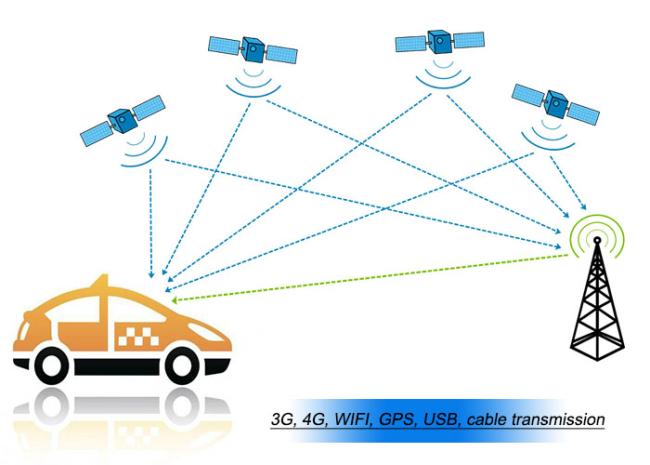

3G/4G/WIFI/USB control;
GPS real-time monitoring.
3. Stable
All weatherproof, good heat dissipation, anti-bump for different road conditions
4. Built-in Delay Protector
The Built-in delay protector prevents the screen from
over-temperature, over-current, over-voltage impacting
when the car starts
Parameters:

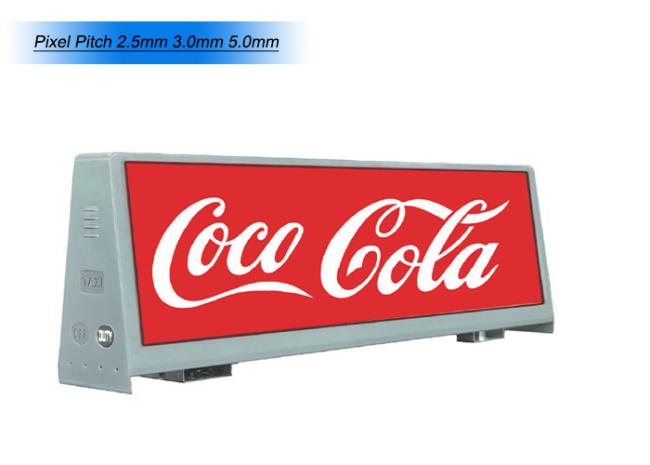

| BT-2 | BT-3 | BT-5 | |
| Physical Pitch | 2.5 mm | 3 mm | 5 mm |
| Pixel Configuration | SMD 2121 | SMD 2121 | SMD 2727 |
| Pixel Density | 160,000 pixels/m² | 111,111 pixels/m² | 40,000 pixels/m² |
| Module Dimensions (W × H) (mm) | 160 × 160 | 192 × 196 | 160 × 160 |
| Screen Size (mm) | 960 × 320 | 768 × 288 | 960 × 320 |
| Screen Resolution | 384 × 128 | 256 × 96 | 192 × 64 |
| Physical Resolution of Module (W × H) | 64 × 64 | 64 × 32 | 32 × 32 |
| Frame size (mm) | 1,100 (L) x 410 (H),164 (bottom) / 99 (top) | 820 ( L) x 390 (H),170(bottom) / 99 (top) | 1,100 ( L) x 410 (H),164(bottom) / 99 (top) |
| Panel Material | Aluminum | Aluminum | Aluminum |
| Screen Weight | 26 kg | 15 kg | 23 kg |
| Gray Scale | 16 bit | 16 bit | 16 bit |
| Colours | 281 trillion | 281 trillion | 281 trillion |
| Contrast Ratio | 4,000 : 1 | 4,000 : 1 | 2,000 : 1 |
| Average Power Consumption | 180 W/Set | 80 W/Set | 150 W/Set |
| Max Power Consumption | 480 W/Set | 250 W/Set | 450 W/Set |
| Operating Temp/Humidity | -40℃- 75℃ / 10% - 90% | -40℃- 75℃ / 10% - 90% | -40℃- 75℃ / 10% - 90% |
| Storage Temp/Humidity | -30℃- 60℃ / 10% - 60% | -30℃- 60℃ / 10% - 60% | -30℃- 60℃ / 10% - 60% |
| Refresh Rate | > 1,920 Hz | > 1,920 Hz | > 1,920 Hz |
| Brightness | 5,000nits | 3500nits | 5,500nits |
| Driving Method | 1/16 Scan | 1/16 Scan | 1/8 Scan |
| Horizontal Viewing Angle | 160° | 160° | 160° |
| Vertical Viewing angle | 140° | 140° | 140° |
| Expected Lifetime | 100,000 Hrs | 100,000 Hrs | 100,000 Hrs |
| Servicing | Back | Back | Back |
| IP Rating (Front/Rear) | IP 65 | IP 65 | IP 65 |
About Bako Vision:
LED Vision Technology Limited , started in Shenzhen in 2005, a world class manufacturer of technologically advanced LED displays, focusing on high end professional customers among domestic and overseas markets. BAKOVISION is fully capable to provide the tailor work of OEM, ODM, creative LED models beside of standard LED screens.
BAKO VISION contains of experienced team leaders and each of them has been working in LED display industry over 10 years. All of our R&D, Production, Sales, Technical Support depts….are running efficiently and smoothly by our great team work, moreover, delivering qualified product and offering timely pre-after service are also assured by BAKO VISION team.
BAKO VISION main markets are among America, Europe, Middle East and Asia, all of our products are certificated by RoHS,CCC,CE,FCC,ETL,UL. Standing firmly by quality, winning firmly by proficient, in the past years of development, BAKO VISION continuous growth and brand positioning are all relied onto the long term partnership with variety channel customers over 120+ countries.
1) Aftersales service
Two years quality warranty with lifelong led display maintenance.
2) Free guarantee repair
Including labor and material: free for repair service in quality warranty period and reasonable charge for spare parts and maintaining service after the quality warranty period. Never exempt our responsibilities on product owned defects, modules, power supply, who set led display all repair.
3) Spare Parts and free CAD drawing
Necessary 2% spare parts are provided together with products to customers.
4) Free Technical Training
Integrative and normative technology training is available for free to technical personnel from customer, to ensure trainees to be skilled in regular operation of hardware and software of the products, and be able to estimate and solve small problems, synchronizatrion assitance for led screen.
5) Customer Investigation
Our after-sales team will telephone or e-mail user every month in warranty period to follow up the working condition of the products, and to discover problem and solve the problem instantly.
6) Software Upgrade
Lifelong maintenance of control system,
