SMD Full Color (P2.97/P3.91/P4.81) Indoor Rental LED Video Display For Stage
SMD Full Color (P2.97/P3.91/P4.81) Indoor Rental LED Video Display For Stage
LED Video Display Brief description
Installation: Hanging, lifting,standing on floor.
Connection : Connected to your computer .Camera,DVI , SDMI or other equipment.
Tool-free assembly and disassembly.
OEM&ODM, any your customized lightings we can help you to design and put into product
LED Video Display Products features
1.Meanwell brand power supply, saving energy and high efficiency. power supply and receiving cards can be replaced separately and quickly, even in 1 second.
2.Cabinet with fast lock design quickens installation and saves labor cost.

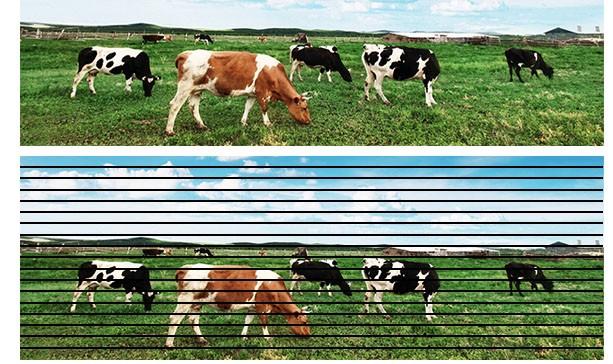

3.High refresh rate with NOVA control system,no scaning line when photographed.
4.Noiseless-The aluminum structure requires no fan. Combined with the noiseless power supply, the cabinet is totally silent.
5. The integration of lamp and driving IC, together with the multi-circuit structure, achieves evenly-distributed current, low power consumption and fast heat dissipation.
6.User-friendly design with fast locks, more convenient & fast to install and dismantle.
LED Video Display Parameter
| BIR-II 2.97 | BIR-II-3.91 | BIR-II-4.81 | |
| Physical Pitch | 2.97mm | 3.91mm | 4.81mm |
| Pixel Configuration | SMD2121 | SMD2121 | SMD2121 |
| Pixel Density | 112,896 pixels/m² | 65,536 pixels/m² | 43,264 pixels/m² |
| Module Dimensions(W*H)(mm) | 250*250 | 250*250 | 250*250 |
| Panel Dimensions(mm) | 500*500*80/500*1000*80 | 500*500*80/500*1000*80 | 500*500*80/500*1000*80 |
| NO. of Modules Per Panel (W*H) | 2*2/2*4 | 2*2/2*4 | 2*2/2*4 |
| Panel Material | Die-Casting Aluminum | Die-Casting Aluminum | Die-Casting Aluminum |
| Colors | 281Trillion | 281Trillion | 281Trillion |
| Processing | 16 Bit | 16 Bit | 16 Bit |
| Physical Resolution of Module(W*H)(mm) | 84*84 | 64*64 | 52*52 |
| Physical Resolution of Panel(W*H)(mm) | 168*168/168*336 | 128*128/ 128*256 | 104*104/ 104*208 |
| Single Cabinet Weight | 8/14kg/panel | 8/14kg/panel | 8/14kg/panel |
| Average Power Consumption | 400 W/panel | 325 W/panel | 310 W/panel |
| Max Power Consumption | 800 W/panel | 780 W/panel | 750 W/panel |
| Brightness | 1200 nits | 1200 nits | 1200 nits |
| Viewing Angle | H:160°/ V:140° | H:160°/ V:140° | H:160°/ V:140° |
| Operating Temp/ Humidity | -10ºC-60ºC/10%-60% | -10ºC-60ºC/10%-60% | -10ºC-60ºC/10%-60% |
| Storage Temp/ Humidity | -30ºC-60ºC/10%-60% | -30ºC-60ºC/10%-60% | -30ºC-60ºC/10%-60% |
| Servicing | Front/Rear | Front/Rear | Front/Rear |
| IP Rating(Front/Rear) | IP 40/IP21 | IP 40/IP21 | IP 40/IP21 |
| Max Stacking and Hanging | 20/10 | 20/10 | 20/10 |
| Refresh Rate | >1,920 Hz | >1,920 Hz | >1,920 Hz |
| Scan Method | 1/28 Scan | 1/16 Scan | 1/13 scan |
LED Video Display Pruduct details

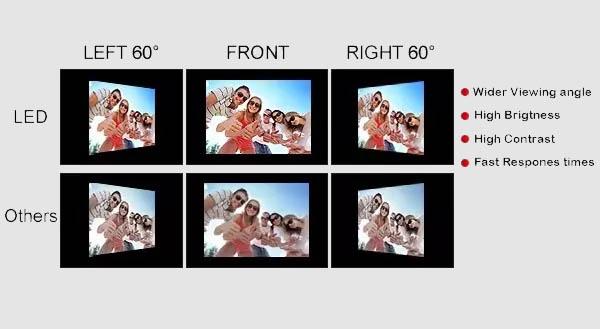

1. Wider Viewing angle
2. High Brightness
3. High Contrast
4. Fast Respones Times
Application
Widely applied to traffic information distribution of station, quay and airport, conference, shopping mall, brand presentation,TV station, stage show, concert and so on.
Packing/ Shipping -Flight case/ By sea or by air
