High Refresh P3.91/P4.81 Video Wall 500*500 Panel RGB Indoor Rental LED Display
High Refresh P3.91/P4.81 Video Wall 500*500 Panel RGB Indoor Rental LED Display

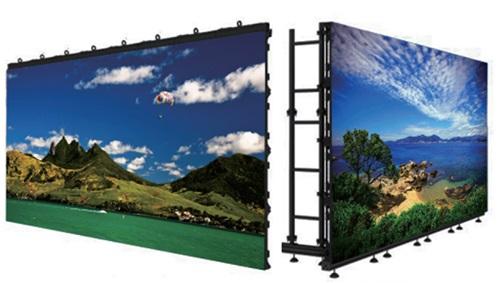

LED Video Wall Brief description
Installation: Hanging, lifting,standing on floor.

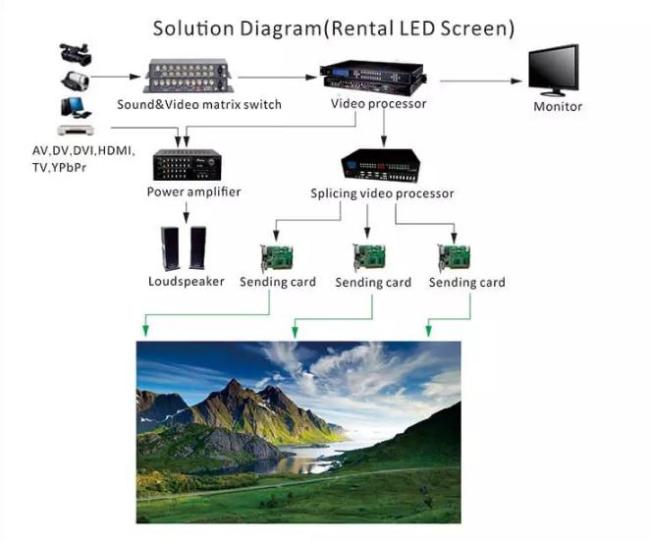

Connection : Connected to your computer .Camera,DVI , SDMI or other equipment.
Tool-free assembly and disassembly.
OEM&ODM, any your customized lightings we can help you to design and put into product
LED Video Wall Products features
1.Easy to install- No need of other tools. It takes 15 minutes for 2workers to finished 20 sqm installation.
2.Seamless connection
The aluminum die-casting technology, together with the high-precision CNC procession, makes the precision reach ±0.05mm so as to achieve seamless assembly.
3.High refresh rate with NOVA control system,no scaning line when photographed.
4.Noiseless-The aluminum structure requires no fan. Combined with the noiseless power supply, the cabinet is totally silent.
5. The integration of lamp and driving IC, together with the multi-circuit structure, achieves evenly-distributed current, low power consumption and fast heat dissipation.
6.Low brightness and high gray scale
16Bit gray scale to bring excellent performance when brightness reduced to 20%.
7. Hanging and Standing , Max Hanging 10 meters.
LED Video Wall Parameter
| BIR-II-3.91 | BIR-II-4.81 | |
| Physical Pitch | 3.91mm | 4.81mm |
| Pixel Configuration | SMD2121 | SMD2121 |
| Pixel Density | 65,536 pixels/m² | 43,264 pixels/m² |
| Module Dimensions(W*H)(mm) | 250*250 | 250*250 |
| Panel Dimensions(mm) | 500*500*80/500*1000*80 | 500*500*80/500*1000*80 |
| NO. of Modules Per Panel (W*H) | 2*2/2*4 | 2*2/2*4 |
| Panel Material | Die-Casting Aluminum | Die-Casting Aluminum |
| Colors | 281Trillion | 281Trillion |
| Processing | 16 Bit | 16 Bit |
| Physical Resolution of Module(W*H)(mm) | 64*64 | 52*52 |
| Physical Resolution of Panel(W*H)(mm) | 128*128/ 128*256 | 104*104/ 104*208 |
| Single Cabinet Weight | 8/14kg/panel | 8/14kg/panel |
| Average Power Consumption | 325 W/panel | 310 W/panel |
| Max Power Consumption | 780 W/panel | 750 W/panel |
| Brightness | 1200 nits | 1200 nits |
| Viewing Angle | H:160°/ V:140° | H:160°/ V:140° |
| Operating Temp/ Humidity | -10ºC-60ºC/10%-60% | -10ºC-60ºC/10%-60% |
| Storage Temp/ Humidity | -30ºC-60ºC/10%-60% | -30ºC-60ºC/10%-60% |
| Servicing | Front/Rear | Front/Rear |
| IP Rating(Front/Rear) | IP 40/IP21 | IP 40/IP21 |
| Max Stacking and Hanging | 20/10 | 20/10 |
| Refresh Rate | >1,920 Hz | >1,920 Hz |
| Scan Method | 1/16 Scan | 1/13 scan |
LED Video Display Pruduct details
2.High gray level
The display of the screen is almost perfect with low brightness, and the appearance of the screen is higher than the traditional display.
That can show more image details, no information loss.
3.High refresh rate
The screen intake five black screen picture stability without ripples, dealing with the dynamic display screen, the image edge is clear, the screen has good dynamic performance, the image information accurately real reduction, make the video screen clear fluid, bring good visual enjoyment.
1. Wider Viewing angle
2. High Brightness
3. High Contrast
4. Fast Respones Times
Application
Widely applied to traffic information distribution of station, quay and airport, conference, shopping mall, brand presentation,TV station, stage show, concert and so on.
Packing/ Shipping -Flight case/ By sea or by air
Our company
BAKO VISION contains of experienced team leaders and each of them has been working in LED display industry over 10 years. All of our R&D, Production, Sales, Technical Support depts….are running efficiently and smoothly by our great team work, moreover, delivering qualified product and offering timely pre-after service are also assured by BAKO VISION team.
