HD Rgb Digital Electronic Rental Led Display, Aluminium Panel Stage 500*500mm
HD Rgb Digital Electronic Rental Led Display, Aluminium Panel Stage 500*500mm
Quick Detail
1. Super lighter and thinner.
2. Easy to connection and uninstall.
3. It can display,words,texts,graphics and videos.
4. Quickly replace power and data core without tools.
5. Perfect images, sharp color and brightness uniformity.
6. Front or rear serviceable with universal modules
Features
1. The new structure design enables diversified installation to meet the hanging-up and stacking requirements.
2. 500*500/500*1000mm P3.91/P4.81 indoor rental led cabinet size to choose.
3.Die-Casting Aluminum, good thermal design, excellent heat dissipation even no fan installation.
4. Curving brackets are available, Unlimited concave curves, Up to 10° convex curves.
5. Support both rear and front service, seamless tiled display, <0.03mm.
Advantages
1. Constant voltage chip driving reduces the power consumption and prompts the stability. Simple modular design is low cost and easy to maintain.
2. Neat appearance, light weight, small size and safe 5V low voltage power supply system all make the module more attractive.
3. Besides, high definition effect comes with uniform luminance and soft color is suitable for indoor range viewing closely.
Digital Electronic Display Parameter
| BIR-II-3.91 | BIR-II-4.81 | |
| Physical Pitch | 3.91mm | 4.81mm |
| Pixel Configuration | SMD2121 | SMD2121 |
| Pixel Density | 65,536 pixels/m² | 43,264 pixels/m² |
| Module Dimensions(W*H)(mm) | 250*250 | 250*250 |
| Panel Dimensions(mm) | 500*500*80/500*1000*80 | 500*500*80/500*1000*80 |
| NO. of Modules Per Panel (W*H) | 2*2/2*4 | 2*2/2*4 |
| Panel Material | Die-Casting Aluminum | Die-Casting Aluminum |
| Colors | 281Trillion | 281Trillion |
| Processing | 16 Bit | 16 Bit |
| Physical Resolution of Module(W*H)(mm) | 64*64 | 52*52 |
| Physical Resolution of Panel(W*H)(mm) | 128*128/ 128*256 | 104*104/ 104*208 |
| Single Cabinet Weight | 8/14kg/panel | 8/14kg/panel |
| Average Power Consumption | 325 W/panel | 310 W/panel |
| Max Power Consumption | 780 W/panel | 750 W/panel |
| Brightness | 1200 nits | 1200 nits |
| Viewing Angle | H:160°/ V:140° | H:160°/ V:140° |
| Operating Temp/ Humidity | -10ºC-60ºC/10%-60% | -10ºC-60ºC/10%-60% |
| Storage Temp/ Humidity | -30ºC-60ºC/10%-60% | -30ºC-60ºC/10%-60% |
| Servicing | Front/Rear | Front/Rear |
| IP Rating(Front/Rear) | IP 40/IP21 | IP 40/IP21 |
| Max Stacking and Hanging | 20/10 | 20/10 |
| Refresh Rate | >1,920 Hz | >1,920 Hz |
| Scan Method | 1/16 Scan | 1/13 scan |
Digital Electronic Display Pruduct details
High gray scale
4000:1 contrast ratio,16 bit gray level, More than 1920Hz refresh rate.
Digital Electronic Display Case
Project Accomplished: June 12, 2016
Location:US, American Idol Show
Screen Dimension: 256m²
Product Model: BIR-3, pixel pitch 3.9mm

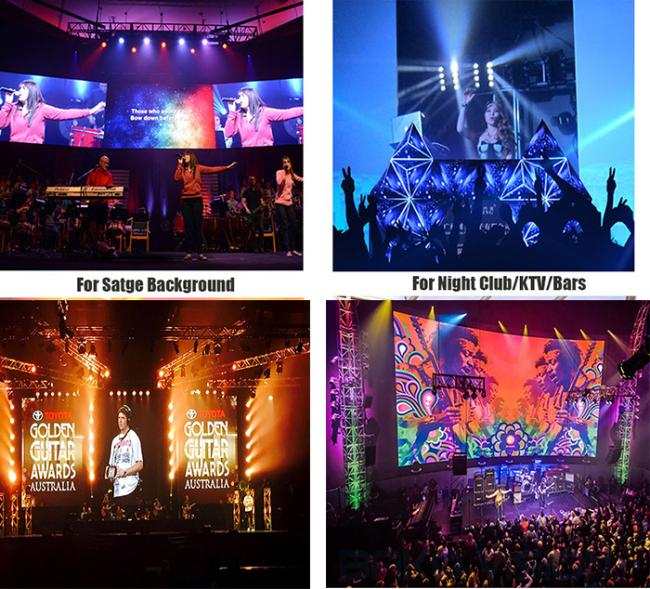

Application
Widely applied to traffic information distribution of station, quay and airport, conference, shopping mall, brand presentation,TV station, stage show, concert and so on.
Packing/ Shipping -Flight case/ By sea or by air
Our company
BAKO VISION contains of experienced team leaders and each of them has been working in LED display industry over 10 years. All of our R&D, Production, Sales, Technical Support depts….are running efficiently and smoothly by our great team work, moreover, delivering qualified product and offering timely pre-after service are also assured by BAKO VISION team.
Quality assurance
- Every production process has a special person to test 72 hours to ensure quality.
- Have professional engineers to check the quality.
- All products have passed CE, FCC, ROHS and other certifications.
- We have the local agency and you can enjoy the local service.
