Dance Floor Height Adjustable Led Video Display Board SMD1921 500*1000mm Cabinet
500*1000mm Cabinet Dance Floor Height Adjustable LED Display Screen
Dance Floor Features:
1. Unique encapsulation resin design and glue quality control, deliver excellent wave length consistency, color balance consistency and chroma consistency.
2. Lower cost and durable material
This series have aluminum cabinet for option. The material is durable for lomg time use under different environment. It adop the energy-saving technology to save the cost a lot.
3.Higher refresh rate
This video dance floor adopt high quality MBI IC with high refresh function for indoor appliacation. It can reach a better levl between brightness, grey level and refresh rate.
4.High Contrast LED display
Non glare, module mask has superfire abrasion performance and anti-skid treatment on surface.
Advantages
1. Interactive ----Radar system
If you want have a interactive led floor , the Radar system is emssentail .
It can be radiation 10 meters of the diameter , when people walk on the area floor , it can be interactive .
2. LED tiles screen has super PC cover bearing design which reaches load-bearing 1.5 tons.
3. Automatic brightness control
Front service , Strict quality control process, ensure 100,000 hours' service time, enjoy peace of mind for years to come
Parameter
| BD-3 | BD-5 | |
| Physical Pitch | 3.91mm | 5.2mm |
| Pixel Configuration | SMD1921 | SMD1921 |
| Pixel Density | 65,536 pixels/m² | 36,864 pixels/m² |
| Module Dimensions(W*H)(mm) | 250*250 | 250*250 |
| Panel Dimensions(mm) | 500*1000 | 500*1000 |
| NO. of Modules Per Panel (W*H) | 2*4 | 2*4 |
| Panel Material | Die-Casting Aluminum | Die-Casting Aluminum |
| Colors | 281Trillion | 281Trillion |
| Processing | 16 Bit | 16 Bit |
| Physical Resolution of Module(W*H)(mm) | 64*64 | 48*48 |
| Physical Resolution of Panel(W*H)(mm) | 128*256 | 96*192 |
| Single Cabinet Weight | 20kg/panel | 25kg/panel |
| Average Power Consumption | 300 W/panel | 300 W/panel |
| Max Power Consumption | 880 W/panel | 880 W/panel |
| Brightness | 2500 nits | 2000 nits |
| Viewing Angle | H:160°/ V:140° | H:160°/ V:140° |
| Operating Temp/ Humidity | -10ºC-60ºC/10%-60% | -10ºC-60ºC/10%-60% |
| Storage Temp/ Humidity | -30ºC-60ºC/10%-60% | -30ºC-60ºC/10%-60% |
| Expected Lifetime | 100,000 Hrs | 100,000 Hrs |
| Servicing | Front | Front |
| IP Rating(Front/Rear) | IP 40/IP21 | IP 40/IP21 |
| Best viewing distance | 4m-60m | 6m-60m |
| Refresh Rate | >1,920 Hz | >1,920 Hz |
| Scan Method | 1/16 Scan | 1/6 scan |
Pruduct details
Module .
1. Materials :
Use the top quality Nationstar brand led and good IC MBI5124 .
2 . size :
250*250mm module size is better to assemble the 500*1000mm cabinet for rental or fixed .

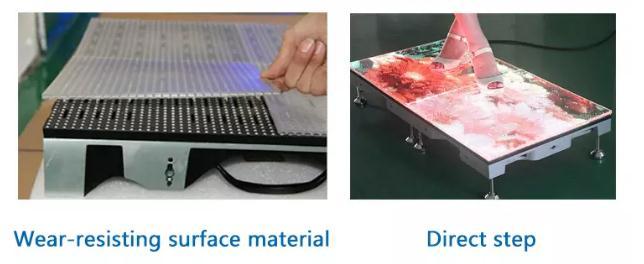

3. Surface :
The surface coverd by the high quality Acrylic to protect the led lamps .

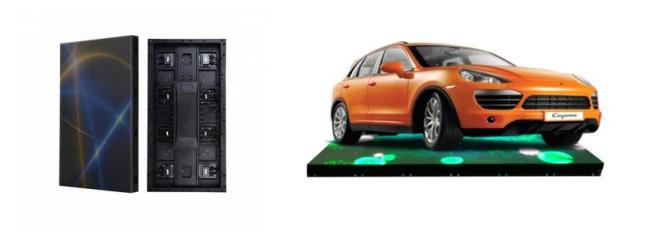

Cabinet
1. Strong bearing :
2, Use the aluminum or die casting aluminum , thiner and lighter to delivery and installation .

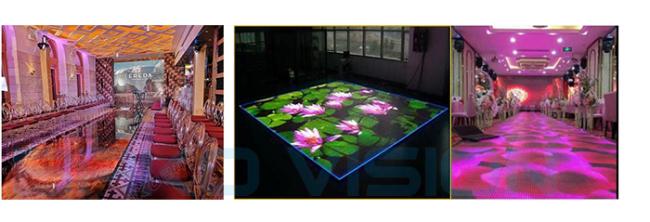

Application Application
1. Shopping Centres
2. Shops - Parties
3. Exhibitions and Trade Fairs
4. Corporate Events
5. Discotheques / Night Clubs
6. Children´s Entertainment
7. Seminars
8. Award Ceremonies
9. Product Launches
10. Advertising, Company Reception Areas
Packing/ Shipping -Flight case/ By sea or by air
Our company
BAKO VISION contains of experienced team leaders and each of them has been working in LED display industry over 10 years. All of our R&D, Production, Sales, Technical Support depts….are running efficiently and smoothly by our great team work, moreover, delivering qualified product and offering timely pre-after service are also assured by BAKO VISION team.
FAQ:
1. What is LED?
LED is sanded for light emitting diode, a kind of semiconductor which is used to give and receive the electronic signal into infrared rays or light, using the characteristics of compound semiconductor. This is used for household appliances, remote controller, electric bulletin board, various kinds of automation appliances.
2. What are pixel pitch, pixel density, LED QTY and pixel configuration?
Pixel pitch is the distance between neighboring pixels.
Pixel density is the quantity of pixels per square meter.
LED qty is the quantity of LED lamps per square.
Pixel configuration is the description of the consistence of a pixel, for instance, we use 1 red lamp, 1 green lamp, and 1 blue lamp to compose a pixel, the pixel configuration is 1R1G1B.
3. What are LED type, module size and module resolution?
LED type is the description of LED lamp, for instance, the brand, the shape in physical, the size of the lamp
Module size is the measurement of a module.
Module resolution is the number of pixels per module.
