Full Color Interactive Indoor Rental LED Display IP65 Waterproof HD Video P3.91-P8
P3.91-P8 Full Color Interactive Dancing Floor LED Screen IP65 Waterproof HD Video
Key words:
BD Series, LED Dance Floor
1. Height Adjustable
2. Quick and Easy Installation
3. Ultra Wide Viewing Angle
4. Adapt to Multifarious Ground
5. IP65 Waterproof
Main features:

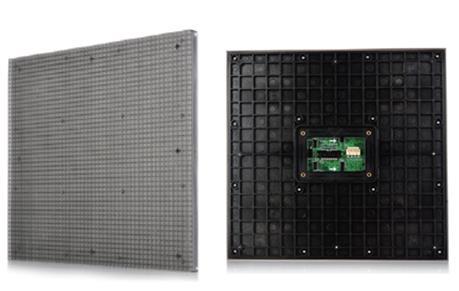

1.Standard Modular Design
Standard module design: 250mmx250mm
Seamless connection
PC material mask with highly scrach-resistant
2. Easy and Fast Installation
Cable-less between modules
Tools free installation
Easy maintenance after cabinets assembled
3.High Bearing Capability
Bearing Capability up to 1.8 tons per square meter
Height adjustable,adapt to multifarious ground
4. Interactive Effect
AvailableInteractive system with inductor built in
Quick response within 0.02s.
Parameter (Click on this and then you will get the catalogue► )
| BD-3 | BD-8 | |
| Physical Pitch | 3.91mm | 8.928mm |
| Pixel Configuration | SMD1921 | SMD3528 |
| Pixel Density | 65,536 pixels/m² | 25600 pixels/m² |
| Module Dimensions(W*H)(mm) | 250*250 | 250*250 |
| Panel Dimensions(mm) | 500*1000 | 500*1000 |
| NO. of Modules Per Panel (W*H) | 2*4 | 2*4 |
| Panel Material | Die-Casting Aluminum | Die-Casting Aluminum |
| Colors | 281Trillion | 281Trillion |
| Processing | 16 Bit | 16 Bit |
| Physical Resolution of Module(W*H)(mm) | 64*64 | 28*28 |
| Physical Resolution of Panel(W*H)(mm) | 128*256 | 56*112 |
| Single Cabinet Weight | 20kg/panel | 25kg/panel |
| Average Power Consumption | 300 W/panel | 300 W/panel |
| Max Power Consumption | 880 W/panel | 880 W/panel |
| Brightness | 2500 nits | 4500nits |
| Viewing Angle | H:160°/ V:140° | H:160°/ V:140° |
| Operating Temp/ Humidity | -10ºC-60ºC/10%-60% | -10ºC-60ºC/10%-60% |
| Storage Temp/ Humidity | -30ºC-60ºC/10%-60% | -30ºC-60ºC/10%-60% |
| Expected Lifetime | 100,000 Hrs | 100,000 Hrs |
| Servicing | Front | Front |
| IP Rating(Front) | IP 65 | IP 65 |
| Best viewing distance | 4m-60m | 8m |
| Refresh Rate | >1,920 Hz | >1,920 Hz |
| Scan Method | 1/16 Scan | 1/3scan |

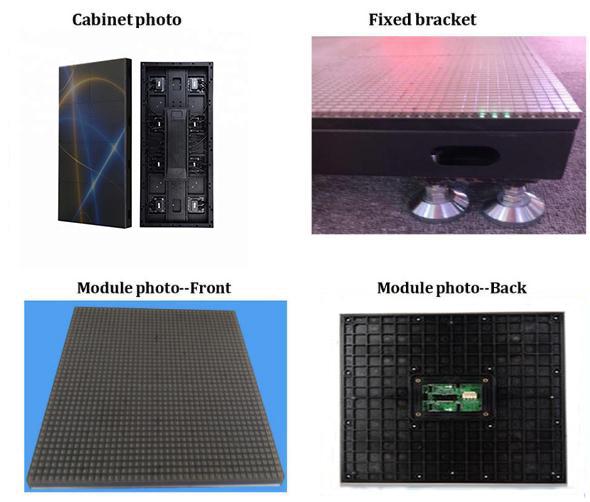

Pruduct details
1. HD Visual Feast, Adjustable height, Convenient maintenance
2. As an action flash memory can be add to each module for on-board storage.
3. Good loading-bearing ability and temporary dance floor function solutation available.

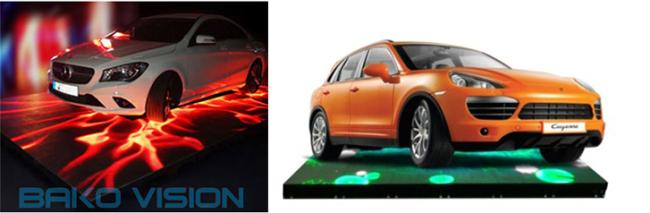

Application Application
It widely used in the Commercial stage,TV Interview,Car exhibition,Mode stage etc some important place.
Packing/ Shipping -Flight case/ By sea or by air
Our company
LED Vision Technology Limited , started in Shenzhen in 2005, a world class manufacturer of technologically advanced LED displays, focusing on high end professional customers among domestic and overseas markets. BAKOVISION is fully capable to provide the tailor work of OEM, ODM, creative LED models beside of standard LED screens.
Get in Touch
Have questions about our products or want to discuss a custom order? Our team is ready to help you.
