SMD 1921 Transparent LED Screens , P3.9mm Invisible LED Display For Advertising
P3.9mm SMD 1921 Digital High Transparent Invisible LED Display for Advertising
Advantage:
1. High Degree of Visibility
65% transparent see-through, so it is convenient for people inside and outside to look-through. The integreted LED lamps are ery tiny and almost invisible from outside of the building.
2. With the front and back wear-resistant PC board protection, no discoloration, no deformation, endure high temperature and antiflaming.
3. Light weight ,about 10.2kg/m².The display is clean and clear, the screen picture is good and beautiful.
4. Energy saving: lower current ,saved 50% energy than normal SMD display,and high brighness.
5.Stable and reliable
Tips
1. Package: Wooden package, Flight case.
2. Shipment: By road, sea, air.
3.Delivery time: 20-25 working days.
4. Payment: T/T 30% deposites, 70% balance before delivery.
5. Shipping port: Shenzhen, China.
6. Warranty: 2 years.
Price term: EXW Shenzhen
Specifications
| BG-3.9-7.8 | BG-5-8 | |
| Physical Pitch | 3.9*7.8mm | 5*8mm |
| Pixel Configuration | SMD1921 | SMD1921 |
| Pixel Density | 32,256pixels/m² | 25,000pixels/m² |
| Module Dimensions(W*H)(mm) | 500*125 | 480*320 |
| Panel Dimensions(mm) | 1000*500 | 960*640 |
| Physical Resolution of Module(W*H) | 128*16 | 96*40 |
| Physical Resolution of Panel(W*H) | 256*64 | 192*80 |
| Weight(kg/m²) | <14kg/m² | <14 kg/m² |
| Colors | 281 trillion | 281 trillion |
| Processing | 16 bit | 16 bit |
| Contrast Ratio | 2000:1 | 2000:1 |
| IP Rating | IP30 | IP30 |
| Viewing Angle | H:160°,V:140° | H:160°,V:140° |
| Panel Material | Aluminum | Aluminum |
| Expected Lifetime | 100,000Hrs | 100,000 Hrs |
| Operating Temp/Humidity |
-10ºC-60ºC/ 10%-60% |
-10ºC-60ºC/ 10%-60% |
| Storage Temp/Humidity |
-30ºC-60ºC/ 10%-60% |
-30ºC-60ºC/ 10%-60% |
| Servicing | Rear | Rear |
| Refresh Rate | >1920 Hz | >1920 Hz |
| Avg/Max. Power Consumption | 180 /560 W/m² | 203/670W/m² |
| Brightness | 1000-4200 nits | >5,500 nits |
| Scan | 1/7 scan | 1/6 scan |

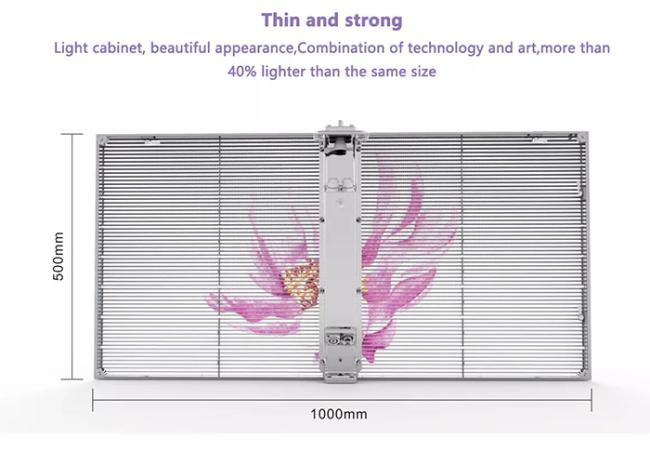

Product Details

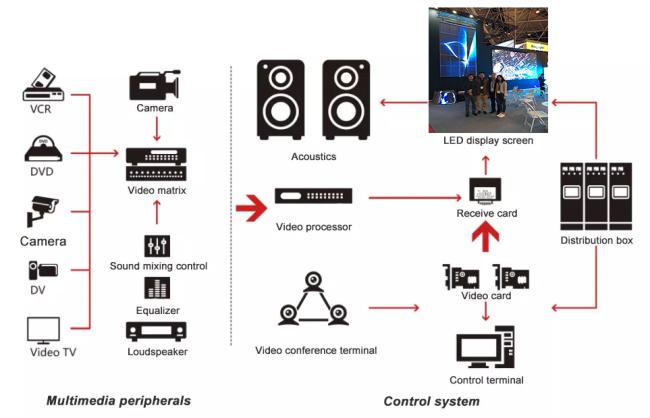

Control System
Packing/ Delivery
Application
Widely use bank, shopping mall, theater, commercial stage, chain store, hotel, public building and landmark building etc.
About us
BAKO VISION product lines have include UHD fine pitch, I/O rental, I/O fixed install, transparent screen, advertising poster, foldable screen, flexible screen, curtain, floor LED, perimeter display… meanwhile, based on our experienced R&D team and comprehensive management, we are always open and been proficient in breaking new model and tooling for customized solutions as well as creative products.
Our Service
1) Reply your inquiry in 24 working hours.
2) Customized design is available,OEM & ODM are welcomed.
3) Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staffs.
4) Special discount and protection of sales area provided to our distributor.
5) Warmly welcome your visit in our company if available.
6) . Warranty
(A) We provide warranty of all components for 24 months. During this time, we will replace or repair our goods for free if there is something wrong with them.
(B) We will provide maintenance for a lifetime and charge for the raw materials only.
7) Technology Training
(A) We provide the technology training for free, which contains the operation training and maintenance training in the factory.
(B) We will send our engineers to your country by negotiation.
