Magic Transparent Glass Led Display Video Wall Advertising Curtain 960*640mm
Curtain 960*640mm Magic LED display Transparent Glass Video Wall Advertising
Description
The transparent led display as a new glaring star in led display area with comprehensive advantages.
Super slim and less weight without any steel structure frame. You can install it like a window-shades.
It is a outstanding product which well beautify moden glass building, also enlarge the building function for adverts.
Advantage:
1. High Degree of Visibility
65% transparent see-through, so it is convenient for people inside and outside to look-through. The integreted LED lamps are ery tiny and almost invisible from outside of the building.
2.Cost savings
Simple steel frame structure, indoor maintenance, lightweight products, easy installation, a large number of installation costs. It also saves the cost of building lighting, which can not only replace the exterior wall lighting, but also bring you advertising benefits.
3. Front service
Full front maintenance,meeting various installation demands,fast but with low maintenance cost.
4. Energy saving: lower current ,saved 50% energy than normal SMD display,and high brighness.
5.Stable and reliable
Quality assurance
- Every production process has a special person to test 72 hours to ensure quality.
- Have professional engineers to check the quality.
- All products have passed CE, FCC, ROHS and other certifications.
- We have the local agency and you can enjoy the local service.
Specifications
| BG-3.9-7.8 | BG-5-8 | |
| Physical Pitch | 3.9*7.8mm | 5*8mm |
| Pixel Configuration | SMD1921 | SMD1921 |
| Pixel Density | 32,256pixels/m² | 25,000pixels/m² |

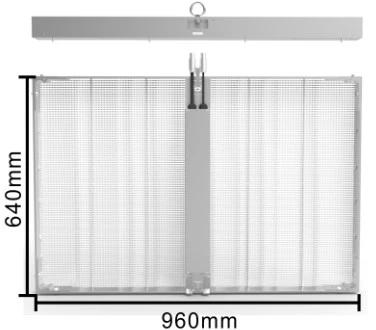

| Module Dimensions(W*H)(mm) | 500*125 | 480*320 |
| Panel Dimensions(mm) | 1000*500 | 960*640 |
| Physical Resolution of Module(W*H) | 128*16 | 96*40 |
| Physical Resolution of Panel(W*H) | 256*64 | 192*80 |
| Weight(kg/m²) | <14kg/m² | <14 kg/m² |
| Colors | 281 trillion | 281 trillion |
| Processing | 16 bit | 16 bit |
| Contrast Ratio | 2000:1 | 2000:1 |
| IP Rating | IP30 | IP30 |
| Viewing Angle | H:160°,V:140° | H:160°,V:140° |
| Panel Material | Aluminum | Aluminum |
| Expected Lifetime | 100,000Hrs | 100,000 Hrs |
| Operating Temp/Humidity |
-10ºC-60ºC/ 10%-60% |
-10ºC-60ºC/ 10%-60% |
| Storage Temp/Humidity |
-30ºC-60ºC/ 10%-60% |
-30ºC-60ºC/ 10%-60% |
| Servicing | Front | Front |
| Refresh Rate | >1920 Hz | >1920 Hz |
| Avg/Max. Power Consumption | 180 /560 W/m² | 203/670W/m² |
| Brightness | 1000-4200 nits | >5,500 nits |
| Scan | 1/7 scan | 1/6 scan |
Product Details

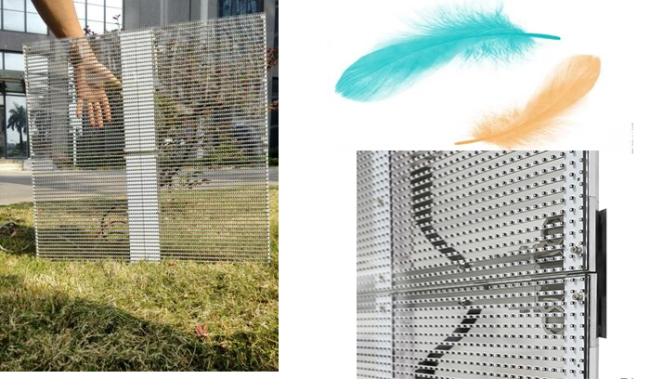

Unique displaying effect
Create such feeling of the advertising image being suspended on the glass wall with the feature of transparency. It can show perfect advertising and artistic effect.
Long-term Brightness
>5,500 nits brightness(for outdoor full color)(2000 nits brightness for indoor full color)capacity throughout product lifetime of the LED display.
Easy and conevient installation with the hanging beam and quick connector
Packing/ Delivery

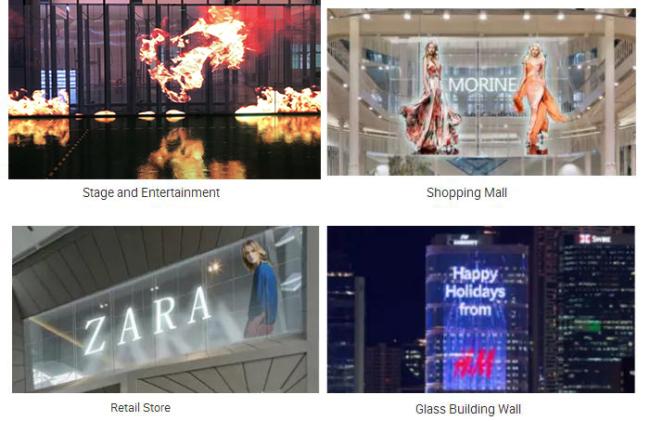

Application

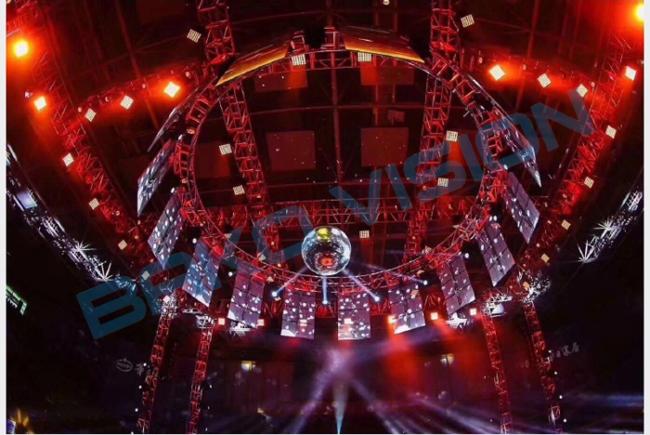

Wide application field: Advertising LED display, Stadium perimeter LED display, Mobile LED display for mobile media, shopping mall LED display for logo showing, bank , stock exchange LED display for rates showing, train, bus station, airport, telecommunication LED screen system for information showing and instruction, Stage performances and so on.
