Glass Advertising Led Display Wide Angle Screen High Brightness 1000X500mm Cabinet P5 Video Wall
Glass Advertising Led Display Wide Angle Screen High Brightness 1000X500mm Cabinet P5 Video Wall
Outdoor transparent led display specification:
| Model | P-5.2 |
| Pixel Pitch | 5.21mm;10.42mm |
| Scan Method | 1/2 scan |
| Driving IC | MY9866 QFN |
| Module Dimension | 500x250mm |
| Module Resolution | 96x24 |
| Pixel Density/Module | 2304 Dots |
| Panel Dimension | 1000x500mm |
| Panel Resolution | 192×48 |
| Module Quantity/Panel | 4pcs |
| Pixel Density | 18,432 Dots/m2 |
| Material | Die-casting Aluminum |
| Single Panel Weight | 8.5KG |
| Brightness | 5500cd/m2 |
| Viewing Angle | 140°(H), 120°(V) |
| Best Viewing Distance | ≥6m |
| Gray Scale | 16 bit |
| Colours | 281 trillion |
| Refresh Rate | ≥3840Hz |
| refresh frame frequency | 60Hz |
| IP Rating | IP65 |
| Input Voltage | AC220V/50Hz ; AC110V/60Hz |
Outdoor transparent led display features:
High guarantee for waterproof ability.
Highbrightness for outdoor daytime use.
Perferct choice for Mall/Skyscraper outdoor window advertising tool!

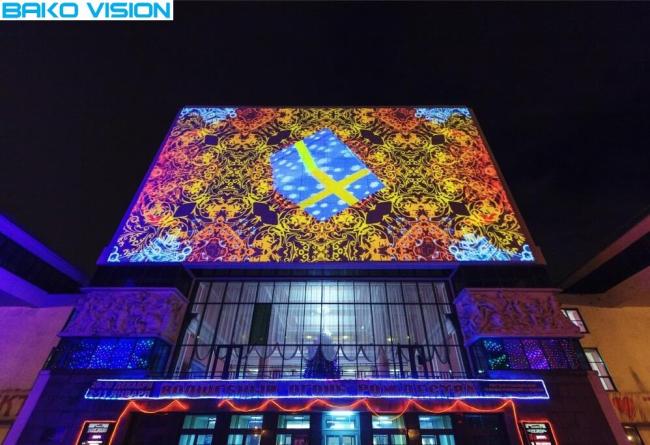

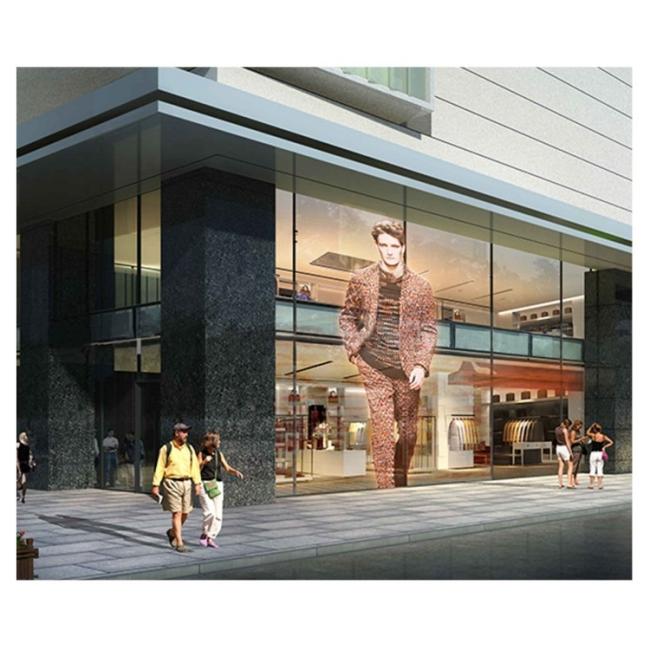

Outdoor transparent led display case and workshop:
Our advantage:
Rich experience: established in 2005; familiar with technical and material about LED display.
Absolute OEM service: providing the most suitable solution for you according to your different demands (such as quality, price and etc.). At least 3 different types in one material are provided for your choice , and with the lowest-cost custom service.
Powerful R&D ability: excellent engineers are constantly developing new products and improving them.
Good quality: all products have passed CE, ROHS, FCC certification.
Thoughtful service: we always serve you heart and soul, striving to make our products meet your demands in maximum degree.
Warranty: we guarantee all our LED products for 2 years and provide lifetime maintenance charging only for raw materials. We provide an excellent after-sale service, which contains free training, free CAD drawings, for more convenience and free consultation lifetime.
FAQ
Q1. Could I get a sample order of led display?
A: Yes, welcome to your sample order to check the quality.
Q2: Could we print our own logo on led display products?
A: Of course. Please let us know all the details soon before production.
Q3: Do you offer guarantee for the led display products?
A: Yes, we offer one year warranty for our products.
Q4: Whether to provide technical training (installation training and use training)?
A: Yes, we offer full service, Including pre-sale, sale, after-sales service, you can rest assured to buy.
