Stage Outdoor Rental LED Display Video Wall 500*500mm Panel 1920Hz Wide Viewing Angle
HD LED Video Wall 500*500mm Panel Stage Rental LED Display Screen 1920Hz
Description
Rental LED Video Wall designed for outdoor, high definition applications, the full color SMD LED video display is great for commercial advertising and information dissemination. It can also be used as a stadium LED display and outdoor rental LED display.
We offer different types of Rental Display at a number of different specifications, including P3.91, P4.81, P5.95. We can also provide custom LED displays according to specific customer needs.
Main Features :
1. SMD 3-in-1 LEDs, nice videos, wide viewing angle.
2. 500x1000mm Die-casting aluminum LED panel, nice appearance and good quality.
3. super thin, light weight,only 12Kg/pcs, with handles and fast locks, easy to install.
4. seamless and flatness to ensure high quality video effect.
5. support VGA,DVI,HDMI,TV programs,VCD,DVD,live show,etc.
6. flightcase package, easy to take the LED display to different places according to your need.
7. suitable for stage rental, event show, concert, mobile advertising, etc.
Parameter
| BOR-III-3 | BOR-III-4 | |
| Physical Pitch | 3.91mm | 4.81mm |
| Pixel Configuration | SMD1921 | SMD2727 |
| Pixel Density | 65,536 pixels/m² | 43,264 pixels/m² |
| Module Dimensions(W*H)(mm) | 250*250/250*500 | 250*250/250*500 |
| Panel Dimensions(mm) | 500*500*80/500*1000*80 | 500*500*80/500*1000*80 |
| NO. of Modules Per Panel (W*H) | 2*2 | 2*2 |
| Panel Material | Die-Casting Aluminum | Die-Casting Aluminum |
| Colors | 281Trillion | 281Trillion |
| Processing | 16 Bit | 16 Bit |
| Physical Resolution of Module(W*H)(mm) | 64*64 | 52*52 |
| Physical Resolution of Panel(W*H)(mm) | 128*128/128*256 | 104*104/104*208 |
| Single Cabinet Weight | 9/15kg/ panel | 9/15kg/ panel |
| Average Power Consumption | 75/150W/panel | 75/150W/panel |
| Max Power Consumption | 225/550W/panel | 225/550W/panel |
| Brightness | >60,00nits | >60,00nits |
| Viewing Angle | H:160°/ V:140° | H:160°/ V:140° |
| Expected Lifetime | 100,000 Hrs | 100,000 Hrs |
| Servicing | Front/Rear | Front/Rear |
| IP Rating(Front/Rear) | IP 65/IP54 | IP 65/IP54 |
| Max Stacking | 20/10 | 20/10 |
| Max Hanging | 20/10 | 20/10 |
| Refresh Rate | >1,920 Hz | >1,920 Hz |
| Contrast Ratio | 4000:1 | 4000:1 |
Products Image
No screw when install masks. The surface of the module will be very smooth.
After finished the led module,we will have 48 hours for the led module aging.then do the Cabinet Assembly-Software Configuration-LED Display Inspection-Labeling-High Voltage Test-Ground Resistance-Test-QC-Packing. After Packing,We will arrange the shipment to the worldwide Customers.UNIT LED with their own technology,can make the SMD Outdoor led display screen with 8000 nits (cd/m2) Brightness.
Better Grey Scale Grade
Stable and clear images, excellent dynamic showing, without scanning line, and the effect will be more nature if play point-to-point output image.

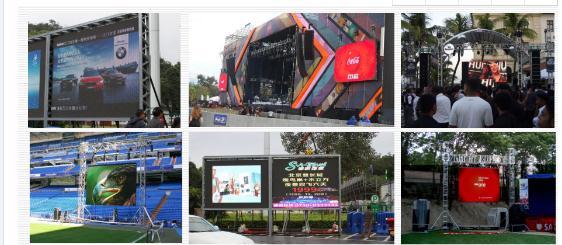

Application Case:
Widely used for shopping malls, entertainment venues, wedding hall, government agencies, trade fair, fair, aiming at the exhibition, press conference, meeting rooms, cinemas, airports, hotels, internal, station waiting area, outdoor stadium, and a variety of public facilities and etc.
