High Definition Rental LED Display P3.91 SMD2121 Event / Wedding / Church Screen
High Definition Rental LED Display P3.91 Event / Wedding / Church Screen
Parameters:
| Physical Pitch | 2.6mm | 2.97mm | 3.91mm |
| Pixel Configuration | SMD2121 | SMD2121 | SMD2121 |
| Pixel Density | 147456 pixels/m² | 112896 pixels/m² | 65536 pixels/m² |
| Module Dimensions (W× H) (mm) | 500x125/500x125 | 250x250/250x500 | 250x250/250x500 |
| Panel Dimensions (mm) | 500x500x80 | 500x500x80 | 500x500x80 |
| 500x1000x80 | 500x1000x80 | 500x1000x80 | |
| NO .of Modules Per Panel (W × H) | 1X4/1X8 | 2x2 | 2x2 |
| Physical Resolution of Module ( W× H) | 192x48/192x48 | 84x84/64x168 | 64x64/64x128 |
| Panel Material | 192x192/192x384 | 168x168/128x336 | 128x128/128x256 |
| Single Cabinet Weight | 7/13KG/Panel | 7/13KG/Panel | 7/13KG/Panel |
| Panel Material | Die-Casting Aluminum | Die-Casting Aluminum | Die-Casting Aluminum |
| Gray Scale | 16 bit | 16 bit | 16 bit |
| Colours | 281 trillion | 281 trillion | 281 trillion |
| Contrast Ratio | 4000 : 1 | 4000 : 1 | 4000 : 1 |
| Average Power Consumption | 60/120W/m² | 60/120W/m² | 60/120W/m² |
| Max Power Consumption | 110/400W/m² | 110/400W/m² | 110/400W/m² |
| Operating Temperature | -10~60℃/10~60℃ | -10~60℃/10~60℃ | -10~60℃/10~60℃ |
| Storage Temperature | -30~60℃/10~60℃ | -30~60℃/10~60℃ | -30~60℃/10~60℃ |
| Refresh Rate | >1920 Hz | >1920 Hz | >1920 Hz |
| Brightness | 900-1200 nits | 900-1200 nits | 900-1200 nits |
| Horizontal Viewing Angle | 160° | 160° | 160° |
| Vertical Viewing angle | 140° | 140° | 140° |
| Max Stacking | 20/10 | 20/10 | 20/10 |
| Max Hanging | 20/10 | 20/10 | 20/10 |
| Expected Lifetime | 100,000 Hrs | 100,000 Hrs | 100,000 Hrs |
| Servicing | Front/Rear | Front/Rear | Front/Rear |
| IP Rating (Front/Rear) | IP40 / IP21 | IP40 / IP21 | IP40 / IP21 |
| Scan Method | 1/32 Scan | 1/28 Scan | 1/16 Scan |
Description:

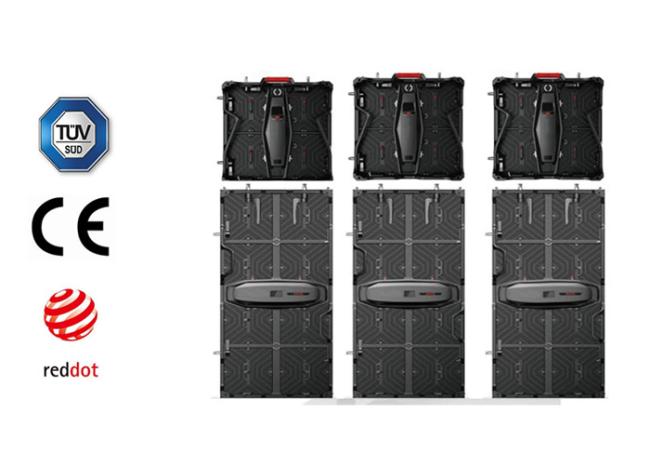

1. It's our premium version with CE, TUV and reddot awarded. 500 x 500mm and 500 x 1000mm cabinet available.
2. To ensure the performance goes well, we have dual signal backup port for this rental screen, you can decide which one to use.
3. This cabinet support front and rear access options, to meet different installation situation.

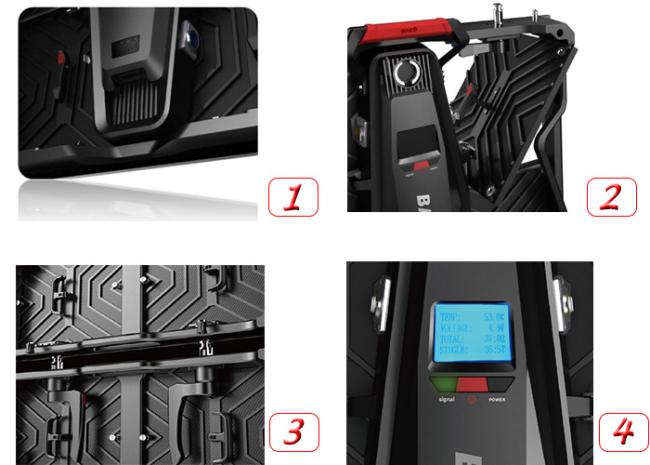

4. Fast lock system ensure fast installation with high precision, it's stable and play an important role in an event.
5. Optional LCD monitoring can let you know the working status of every panel, also helpful for whole screen management.

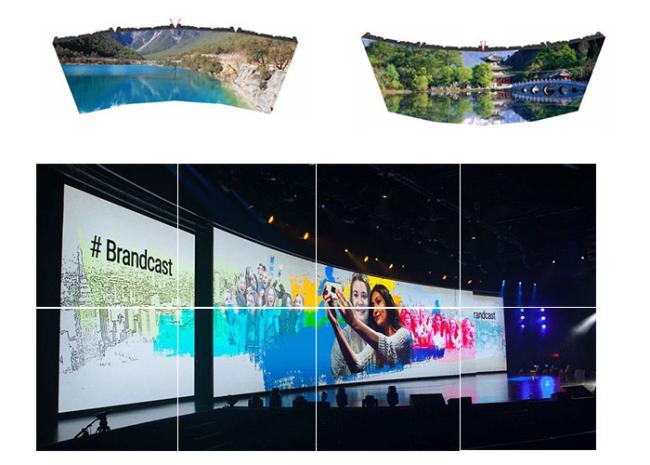

6. According to your stage needs, you can installed it as convex or concave screen, from -10 to 10 degree.

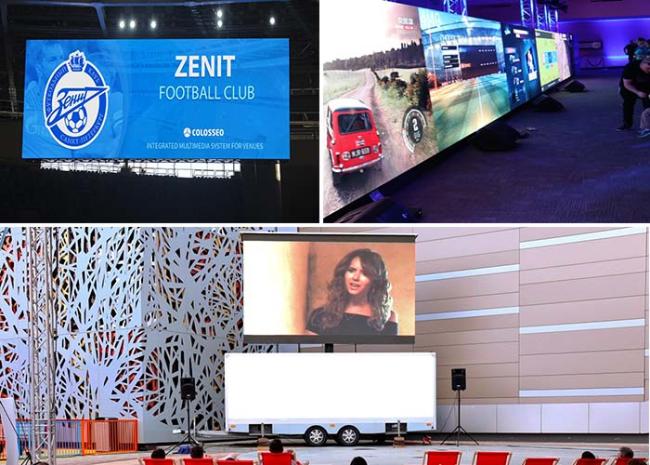

Application Reference:
Shenzhen Bako Vision Technology Co.,Ltd
Company Vision: Professional Team Focus on Professional Work, that is how to build BAKOVISION brand.
Company Mission: Offer professional solution to professional customers, create value for customers.
Company Spirit: Focus Efficiency Sincerity Innovation.
Warranty:
We guarantee all our displays, modules, parts for TWO years. During this time, we will replace or amend all our goods for free if there is something wrong with them.We provide lifetime maintenance service and only charge for the cost of raw materials needed. We provide technology training for free, which contains operation and maintenance training of the LED screens in the factory.We also provide operation manual software, test report and so on. Any associated CAD drawings on how to fix up the display. And some other expert suggestions will be provided for free.
