Energy Saving Outdoor Large LED Screen Display Full Color P4.81mm 6000 Nits Rental
Outdoor Large LED Screen Display P4.81mm Full Color 6000nits Rental LED Display
Quick Detail:
1) Stable quality,Goods be examined before delivery,Professional QC team.
2. Unit module of cabinet adopts to high-temperature spraying technology, the antirust function is
greatly improved
3. Service efficiency of the screen switch power supply is increased substantially, which reduces
power failure rate
4. High brightness design,it is also clear on the suny day.
Product advantages:
- Import unibody aluminum alloy,wih strong stell plate inside to resist shaking,Automatically heat disspation with over 10years'lifespan.
- Multifunction cabinet,just change the module to upgrade the product with low cost.

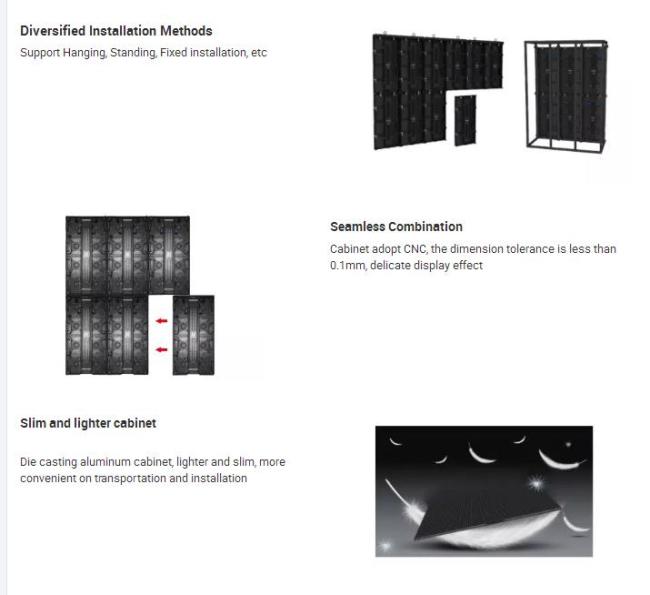

- Seamless assembly and excellent flatness to show you the high quality images.
- RGB meticuluos gray levle adjustment to make an abundant and exquisite colors and clear/natural images.
- Energy-saving designed to lower the 25% power consumption,save your cost well for your project.
- 120° horizontal/vertical viewing angle,perfect for outdoor advertisement.
Parameter
| BOR-III-4.81 | BOR-III-5.95 | BOR-III-6.25 | |
| Physical Pitch | 4.81mm | 5.95mm | 6.25mm |
| Pixel Configuration | SMD2727 | SMD2727 | SMD2727 |
| Pixel Density | 43,264 pixels/m² | 28,224 pixels/m² | 25,600 pixels/m² |
| Module Dimensions(W*H)(mm) | 250*250 | 250*250 | 250*250 |
| Panel Dimensions(mm) | 500*500*80/500*1000*80 | 500*500*80/500*1000*80 | 500*500*80/500*1000*80 |
| NO. of Modules Per Panel (W*H) | 2*2/ 2*4 | 2*2/ 2*4 | 2*2/ 2*4 |
| Panel Material | Die-Casting Aluminum | Die-Casting Aluminum | Die-Casting Aluminum |
| Colors | 281Trillion | 281Trillion | 281Trillion |
| Processing | 16 Bit | 16 Bit | 16 Bit |
| Physical Resolution of Module(W*H)(mm) | 52*52 | 42*42 | 40*40 |
| Physical Resolution of Panel(W*H)(mm) | 104*104/104*208 | 84*84/ 84*168 | 80*80/ 80*160 |
| Single Cabinet Weight | 9/15kg/ panel | 9/15kg/ panel | 9/15kg/ panel |
| Average Power Consumption | 75/150W/panel | 75/150W/panel | 75/150W/panel |
| Max Power Consumption | 225/550W/panel | 225/550W/panel | 225/550W/panel |
| Brightness | >60,00nits | >60,00nits | >60,00nits |
| Viewing Angle | H:160°/ V:140° | H:160°/ V:140° | H:160°/ V:140° |
| Expected Lifetime | 100,000 Hrs | 100,000 Hrs | 100,000 Hrs |
| Servicing | Front/Rear | Front/Rear | Front/Rear |
| IP Rating(Front/Rear) | IP 65/IP54 | IP 65/IP54 | IP 65/IP54 |
| Max Stacking | 20/10 | 20/10 | 20/10 |
| Max Hanging | 20/10 | 20/10 | 20/10 |
| Refresh Rate | >1,920 Hz | >1,920 Hz | >1,920 Hz |
| Contrast Ratio | 4000:1 | 4000:1 | 4000:1 |
Products Image
Features
1, Seamless connection.
2, Special design for the mask to realize higher contrast and larger viewing angle.
3, Signal backup and power backup.
4, Brightness and chromaticity calibration.
5. Lighter than ever
Slim and smart ideal substitution for traditional outdoor rental LED screen
The aluminum material makes the cabinet 20% lighter than before.

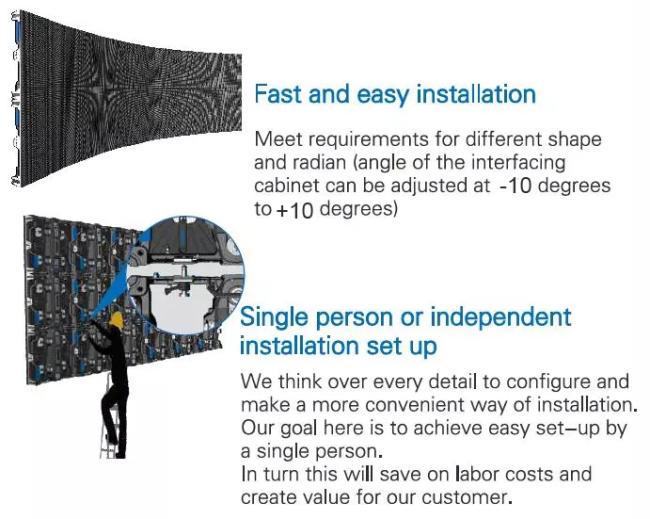

6. Curved design
Truss hanging and ground support both available
Concave and convex angle can reach to 0°-10° degree
Meeting the demands of creative and customized request.
Better Grey Scale Grade
Stable and clear images, excellent dynamic showing, without scanning line, and the effect will be more nature if play point-to-point output image.
Application Case:
Widely used for shopping malls, entertainment venues, wedding hall, government agencies, trade fair, fair, aiming at the exhibition, press conference, meeting rooms, cinemas, airports, hotels, internal, station waiting area, outdoor stadium, and a variety of public facilities and etc.
About us
LED Vision Technology Limited , started in Shenzhen in 2005, a world class manufacturer of technologically advanced LED displays, focusing on high end professional customers among domestic and overseas markets. BAKOVISION is fully capable to provide the tailor work of OEM, ODM, creative LED models beside of standard LED screens.
After service
Pre-producing:
- Get complete requirements of clients.
- To do a thorough analysis.
- Offer a most reasonable and scientific solution.
- Customized design.
In producing:
- Producing progress updating for clients
- Particular Installation CAD and Design Diagram for clients.
After service:
- 2 years free maintenance
- 7 days a week, 24 hours a day for 5 years on-line service for any technical support for any customers
- Free training for customers in factory
- Local Partner Installation Service
