LED Display Screen Sign P2.5 600-1000 Nits Die Casting Aluminum Cabinet
LED Display Screen Sign P2.5 600-1000 Nits Die Casting Aluminum Cabinet
Specification
| BHD-1.5 | BHD-1.6 | BHD-1.8 | BHD-2.5 | BHD-3 | |
| Physical Pitch | 1.579 mm | 1.667 mm | 1.875 mm | 2.5 mm | 3 mm |
| Pixel Configuration | SMD 1010 | SMD 1010 | SMD 1515 | SMD 2121 | SMD 2121 |
| Pixel Density | 401,956 pixels/m² | 360,000 pixels/m² | 284,444 pixels/m² | 160,000 pixels/m² | 110,889 pixels/m² |
| Module Dimensions (W × H) (mm) | 240 × 240 | 240 × 240 | 240 × 240 | 240 × 240 | 240 × 240 |
| Panel Dimensions (mm) | 480 × 480 × 80 | 480 × 480 × 80 | 480 × 480 × 80 | 480 × 480 × 80 | 480 × 480 × 80 |
| NO.of Modules Per Panel (W × H) | 2 × 2 | 2 × 2 | 2 × 2 | 2 × 2 | 2 × 2 |
| Physical Resolution of Module (W × H) | 152 × 152 | 144 × 144 | 128 × 128 | 96 × 96 | 96 × 96 |
| Physical Resolution of Panel (W × H) | 304 × 304 | 288 × 288 | 256 × 256 | 192 × 192 | 160 × 160 |
| Panel Material | Die-Casting Aluminum | Die-Casting Aluminum | Die-Casting Aluminum | Die-Casting Aluminum | Die-Casting Aluminum |
| Single Cabinet Weight | 7 kg/panel | 7 kg/panel | 7 kg/panel | 7 kg/panel | 7 kg/panel |
| Gray Scale | 16 bit | 16 bit | 16 bit | 16 bit | 16 bit |
| Colours | 281 trillion | 281 trillion | 281 trillion | 281 trillion | 281 trillion |
| Contrast Ratio | 4,000 : 1 | 4,000 : 1 | 4,000 : 1 | 4,000 : 1 | 4,000 : 1 |
| Average Power Consumption | 258 W /m² | 264 W /m² | 260 W /m² | 215 W /m² | 235 W /m² |
| Max Power Consumptionx | 715 W/m² | 680 W/m² | 690 W/m² | 640 W/m² | 670 W/m² |
| Operating Temp/Humidity | -10℃-60℃ / 10% -60% | -10℃-60℃ / 10% -60% | -10℃-60℃ / 10% -60% | -10℃-60℃ / 10% -60% | -10℃-60℃ / 10% -60% |
| Storage Temp/Humidity | -30℃-60℃ / 10%-60% | -30℃-60℃ / 10%-60% | -30℃-60℃ / 10%-60% | -30℃-60℃ / 10%-60% | -30℃-60℃ / 10%-60% |
| Refresh Rate | > 2,880 Hz | > 2,880 Hz | > 2,880 Hz | > 2,880 Hz | > 2,880 Hz |
| Srightness | 600 - 1,000 nits | 600 - 1,000 nits | 600 - 1,000 nits | 600 - 1,000 nits | 600 - 1,000 nits |
| Horizontal Viewing Angle | 160° | 160° | 160° | 160° | 160° |
| Vertical Viewing Angle | 140° | 140° | 140° | 140° | 140° |
| Expected Lifetime | 100, 000 Hrs | 100, 000 Hrs | 100, 000 Hrs | 100, 000 Hrs | 100, 000 Hrs |
| Servicing | Front / Rear | Front / Rear | Front / Rear | Front / Rear | Front / Rear |
| IP Rating (Front/Rear) | IP 40 / IP 21 | IP 40 / IP 21 | IP 40 / IP 21 | IP 40 / IP 21 | IP 40 / IP 21 |
| Scan Method | 1/38 Scan | 1/32 Scan | 1/38 Scan | 1/32 Scan | 1/20 Scan |

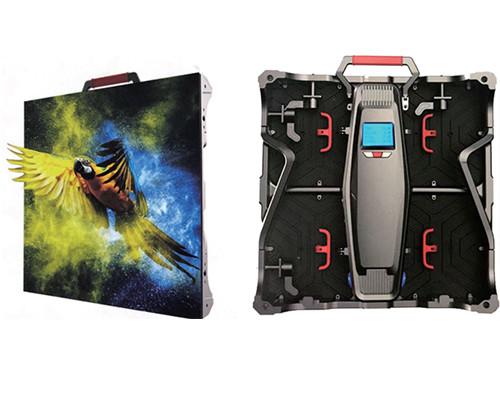

BHD Series HD Pixels for Stage and Fixed Install
● TUV EMC Certificated
● Both Front and Rear Service Available
● High Definition Indoor Display

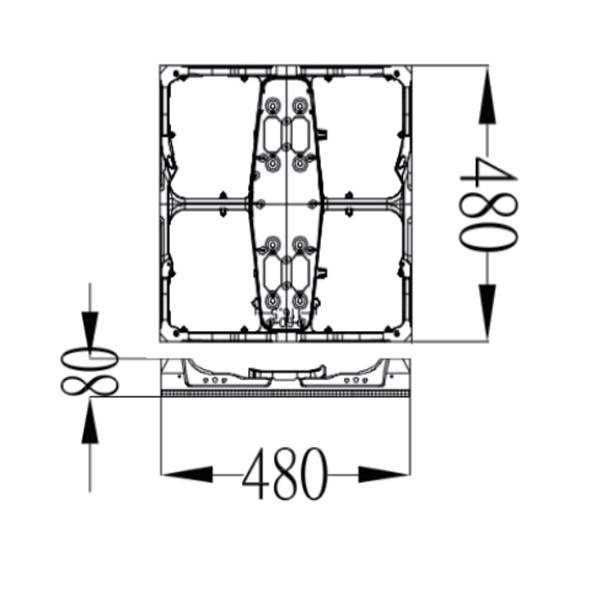

● 480mm X 480mm Chassis
Unsurpassed Color Uniformity
● Unique color calibration process
● Tight bin selection for LED wavelength
● Deep black levels, contrast ratio 4000:1

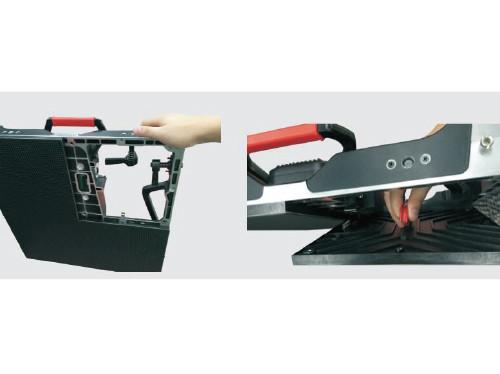

Fast Installation and Easy Maintenance
● Truss hanging and ground support both available
● Cable-less between modules
● Front and rear access
● Tools free installation
Superior Electrical Features
● Dural signal backup port

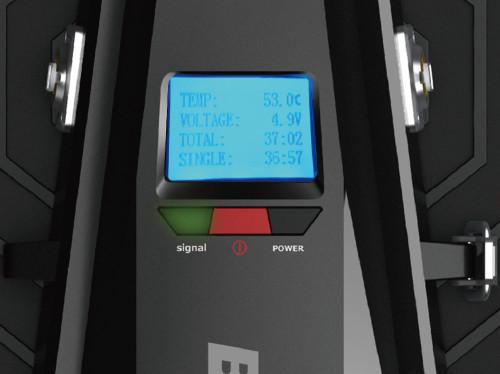

● UI LCD monitoring display indicates the status
Slim, Light Weight and Quiet
● 480mmx480mm cabinet
● 80mm thickness, 7 KG per cabinet
● Fanless design
FAQ
Q1: The warranty of your LED Display Board ?
A: We offer 2-3 year warranty for our different led display screen series, 100,000 hours life span for the led lamps, and lifetime technology support with 7/24 phone answering service if you have any problem with our led screen.
Q2: Whats your payment term? How long it takes to delivery?
A: We normally accept T/T and L/C,and other payment options is negotiable for your convenience. A 30% deposit is needed in advance, and the rest 70% be paid before delivery. Our average lead time is 15 days.
Q3:Why I should choose your company ?
A:We have been focusing on the development of led screen and have a good reputaion in the market.We strictly follow up the requirements of customers,and are committed to achieve a win-win situation with customers.Whatever the products stability or service we will do better and better.
Packaging and Shipping
About Us
LED Vision Technology Limited , started in Shenzhen in 2005, a world class manufacturer of technologically advanced LED displays, focusing on high end professional customers among domestic and overseas markets. BAKOVISION is fully capable to provide the tailor work of OEM, ODM, creative LED models beside of standard LED screens.
BAKO VISION contains of experienced team leaders and each of them has been working in LED display industry over 10 years. All of our R&D, Production, Sales, Technical Support depts….are running efficiently and smoothly by our great team work, moreover, delivering qualified product and offering timely pre-after service are also assured by BAKO VISION team.
BAKO VISION product lines have include UHD fine pitch, I/O rental, I/O fixed install, transparent screen, advertising poster, foldable screen, flexible screen, curtain, floor LED, perimeter display… meanwhile, based on our experienced R&D team and comprehensive management, we are always open and been proficient in breaking new model and tooling for customized solutions as well as creative products.
BAKO VISION main markets are among America, Europe, Middle East and Asia, all of our products are certificated by RoHS,CCC,CE,FCC,ETL,UL. Standing firmly by quality, winning firmly by proficient, in the past years of development, BAKO VISION continuous growth and brand positioning are all relied onto the long term partnership with variety channel customers over 120+ countries.
