Round Outdoor LED Display Screen 4.68mm For LOGO / Store Branding Advertising
Outdoor 4.68mm Round LED Display Screen for LOGO , Store Branding Advertising
Description:

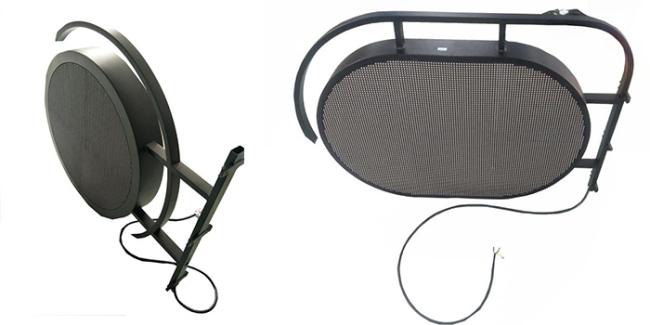

1. The LED display can be fixed to the wall.
2. It can also be hunging installation.

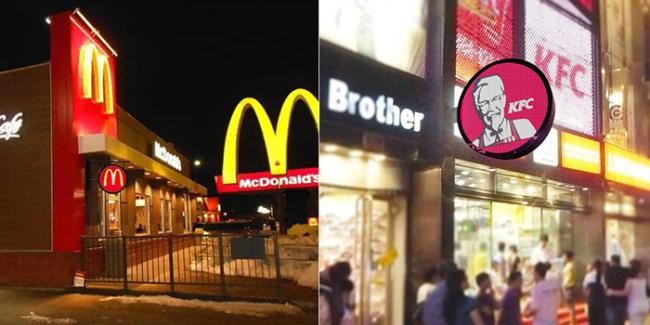

3. Suitable for company group LOGO brand promotion.
4. Can be installed in streets, shopping malls, shops, bars...
5. Support USB disk to download files and playback automatically; control by mobile phone
Parameters:
| BR(Round)-4.68 | BR(Oval)-8 | |
| Physical Pitch | 4.68mm | 8mm |
| Pixel Configuration | SMD 3-in-1 | SMD 3-in-1 |
| Pixel Density | 45,511 pixels/m² | 15,625 pixels/m² |
| Module Dimensions (W × H) (mm) | 300 x 300 | 320 x 320 |
| Inner Diameter (mm) | 600 | 960 x 640 |
| NO.of Modules Per Panel (W × H) | 2 x 2 | 2 x 2 |
| Physical Resolution of Module (W × H) | 64 x 64 | 40 x 40 |
| Physical Resolution of Panel (W × H) | 128 x 128 | 120 x 80 |
| Panel Material | Steel | Steel |
| Weight | 16 kg/unit | 19 kg/unit |
| Gray Scale | 16 bit | 16 bit |
| Colours | 281 trillion | 281 trillion |
| Contrast Ratio | 2,000 : 1 | 2,000 : 1 |
| Power Consumption | around 400 W/unit | around 400 W/unit |
| Driving Method | 1/8 Dynamic Scan | 1/8 Dynamic Scan |
| Operating Temp/Humidity | -20°-60°/10%-95% | -20°-60°/10%-95% |
| Brightness | >4,500 nits | >4,500 nits |
| Brightness Adjustment | Manual Adjustment | Manual Adjustment |
| Control Method | WIFI/USB/Cloud Platform | WIFI/USB/Cloud Platform |
| Refresh Rate | >1,920 Hz | >1,920 Hz |
| Working Voltage | Ac 240/100±10% 50 Hz/60 Hz | Ac 240/100±10% 50 Hz/60 Hz |
| Viewing Angle | 120°(V)120°(H) | 120°(V)120°(H) |
| Expected Lifetime | 100,000 Hrs | 100,000 Hrs |
| Servicing | Front | Front |
| IP Rating | IP65 | IP65 |
LED Vision Technology Limited , started in Shenzhen in 2005, a world class manufacturer of technologically advanced LED displays, focusing on high end professional customers among domestic and overseas markets. BAKOVISION is fully capable to provide the tailor work of OEM, ODM, creative LED models beside of standard LED screens.
BAKO VISION contains of experienced team leaders and each of them has been working in LED display industry over 10 years. All of our R&D, Production, Sales, Technical Support depts….are running efficiently and smoothly by our great team work, moreover, delivering qualified product and offering timely pre-after service are also assured by BAKO VISION team.
BAKO VISION product lines have include UHD fine pitch, I/O rental, I/O fixed install, transparent screen, advertising poster, foldable screen, flexible screen, curtain, floor LED, perimeter display… meanwhile, based on our experienced R&D team and comprehensive management, we are always open and been proficient in breaking new model and tooling for customized solutions as well as creative products.
