P3.91 Led Wall Screen Display Outdoor Stage Event Die Casting Aluminum Light Weight
Stage Event Die-casting Aluminum Cabinet Video Wall Screen P3.91 Outdoor Rental LED Display
Outdoor Rental LED Display.
Outdoor LED display may be widely used at advertising LED display,shopping mall LED display for logo showing,bank & stock exchange led display for rates showing,train & bus station,airport,telecommunication LED screen system for information showing and instruction,stage performances and so on.
Product Features:
Top-brand Accessories
MBI IC
Novastar controller, 3840Hz refresh rate
Perfect Design for Rental Use

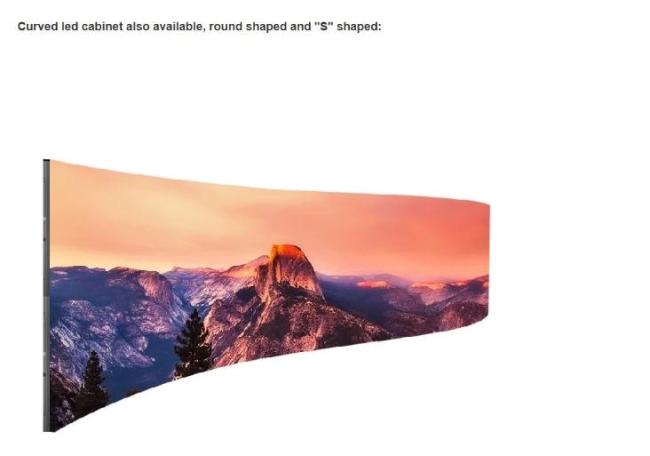

2. +/-10 degrees adjustable for curve LED screen;
3. Light weight, 9kg, die-casting aluminum;
4. 500*500/1000mm, 2 size cabinets can be mixed use.
Parameter
| BOR-III-3 | BOR-III-4 | |
| Physical Pitch | 3.91mm | 4.81mm |
| Pixel Configuration | SMD1921 | SMD2727 |
| Pixel Density | 65,536 pixels/m² | 43,264 pixels/m² |
| Module Dimensions(W*H)(mm) | 250*250/250*500 | 250*250/250*500 |
| Panel Dimensions(mm) | 500*500*80/500*1000*80 | 500*500*80/500*1000*80 |
| NO. of Modules Per Panel (W*H) | 2*2 | 2*2 |
| Panel Material | Die-Casting Aluminum | Die-Casting Aluminum |
| Colors | 281Trillion | 281Trillion |
| Processing | 16 Bit | 16 Bit |
| Physical Resolution of Module(W*H)(mm) | 64*64 | 52*52 |
| Physical Resolution of Panel(W*H)(mm) | 128*128/128*256 | 104*104/104*208 |
| Single Cabinet Weight | 9/15kg/ panel | 9/15kg/ panel |
| Average Power Consumption | 75/150W/panel | 75/150W/panel |
| Max Power Consumption | 225/550W/panel | 225/550W/panel |
| Brightness | >60,00nits | >60,00nits |
| Viewing Angle | H:160°/ V:140° | H:160°/ V:140° |
| Expected Lifetime | 100,000 Hrs | 100,000 Hrs |
| Servicing | Front/Rear | Front/Rear |
| IP Rating(Front/Rear) | IP 65/IP54 | IP 65/IP54 |
| Max Stacking | 20/10 | 20/10 |
| Max Hanging | 20/10 | 20/10 |
| Refresh Rate | >1,920 Hz | >1,920 Hz |
| Contrast Ratio | 4000:1 | 4000:1 |
Products Image
LED Display Module P3.91/P4.81.
This is P3.91/P4.81 indoor led module , module size is 250mm x 250mm , our common type is Sanan chip led , with chipone 2038s IC, we can also produce it with nationstar /kinglight led ,MBI5124IC, or other type as you like .

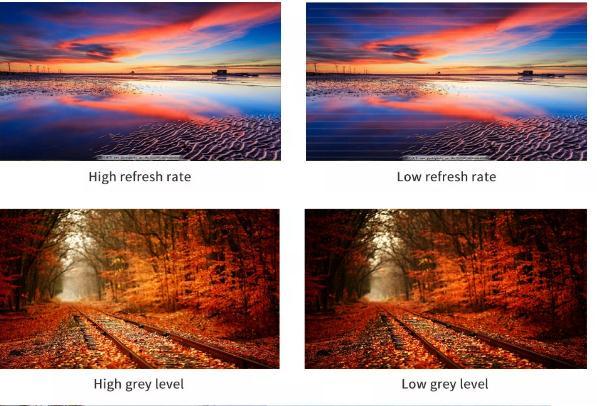

Fast refreshing, to swtich without water wave, no flash line, picture display is high definition, the picture display is the best effect. When comparing with ordinary LED display, Bako Vision's display doesn't have ghosting phenomenon, picture is clean and distinct, in addition, it is fast refreshing ratio without water wave. WHAY Display is to adopt high quality LED, to match black protection shade, the contrast ratio is 4000:1, which makes the picture display be more clear and colorful.
Packaging and Shipping
1. Payment terms: by TT, 30% advanced payment at time of order placement and the balance before shipment
2. Lead-time: 23 working days after receiving 30% deposit and balance before the shipment
3. Price terms: EXW Shenzhen or FOB Shenzhen
4. Shipment: by sea or by air, Shenzhen port
5. Packing: foam packing in wooden carton or flight case
6. Warranty: we offer 2 years warranty
About us
LED Vision Technology Limited , started in Shenzhen in 2005, a world class manufacturer of technologically advanced LED displays, focusing on high end professional customers among domestic and overseas markets. BAKOVISION is fully capable to provide the tailor work of OEM, ODM, creative LED models beside of standard LED screens.
After service
Pre-producing:
- Get complete requirements of clients.
- To do a thorough analysis.
- Offer a most reasonable and scientific solution.
- Customized design.
In producing:
- Producing progress updating for clients
- Particular Installation CAD and Design Diagram for clients.
After service:
- 2 years free maintenance
- 7 days a week, 24 hours a day for 5 years on-line service for any technical support for any customers
- Free training for customers in factory
- Local Partner Installation Service
