Indoor Poster LED Display P2.5 Mirror Screen 570*1897mm Die-Casting AL Wifi/4G/USB For Shopping Mall Advertising
| Specifications | |
| Pixel Pitch(mm): | 1.875 / 2 / 2.5 / 3 |
| Cabinet Material: | Die-casting aluminum |
| Refresh Rate(Hz): | > 1920 Hz |
| Key Point: | Light weight design, easy to move and carry, plug to play |
Digital LED Panel Features
· Plug-and-Play Design.
· Several Installation Way: Wall Mounted and Floor Stand Itself.
· Die-casting Aluminum Cabinet, Better Flatness.
· Light Weight Of Cabinet, Easy to Move.
· Cloud System Operation, One Control All.
| Pixel Pitch | 1.875mm | 2.5mm | 2.5mm Pro | 3.0mm |
| Pixel Configuration | SMD 1515 | SMD 2121 | SMD 2121 | SMD 2121 |
| Pixel Density | 279,936pixels/m² | 169,344pixels/m² | 157,464pixels/m² | 110,889pixels/m² |
| Module Dimention(mm) | 160 × 160 | 320 × 160 | 280 × 210 | 192 × 192 |
| Whole Set Dimention(mm) | 640 × 1920 × 35 | 640 × 1920 × 35 | 571× 1897 × 33 | 576 × 1920 × 35 |
| NO.of Modules Per Panel | 4 × 12 | 2 × 12 | 2 × 9 | 3 × 10 |
| Resolution of Module | 84 x 84 | 64× 64 | 108× 81 | 64 × 64 |
| Resolution of Whole Set | 336 × 1,010 | 256 × 768 | 216 × 729 | 192× 640 |
| Panel Material | Aluminum / Steel | |||
| Cabinet Weight | 32 kg | 32 kg | 28 kg | 32 kg |
| Gray Level | 16 bit(281 trillion colors) | |||
| Average Power Consumption | 250W/Set | 200W/Set | 100 W/ Set | 200 W/ Set |
| Max Power Consumption | 750W/Set | 600W/Set | 390 W / Set | 600 W / Set |
| Driving Method | 1/32 Scan | 1/32 Scan | 1/27 Scan | 1/32 Scan |
| Brightness | >1,000 nits | >1,000 nits | >1,000/3500 nits | >1,000 nits |
| Refresh Rate | ≥2,880 Hz | ≥2,880 Hz | ≥3,840 Hz | ≥2,880 Hz |
| Viewing Angle(V/H) | 160°/ 140° | |||
| Frame Rate | 60 fps | |||
| Operating Temp/Humidity | -10ºC~60ºC / 10%~60% | |||
| Storage Temp/Humidity | -30ºC~60ºC / 10%~60% | |||
| IP Rating (Front/Rear) | IP40 | |||
| Expected Lifetime | 100,000 Hrs | |||
· Lifting.
· Wall-mounted.
· Bracket/Base Floor-standing.

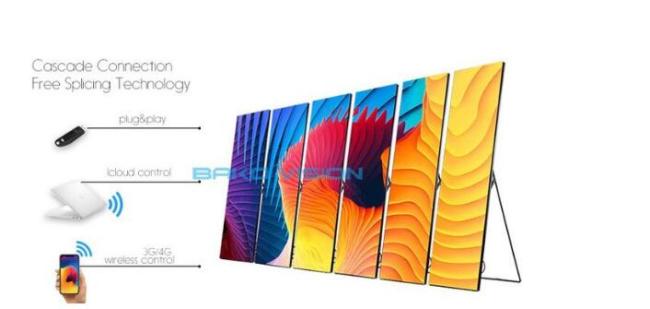

· Multi-screen Cascade.
· Creative Installation.
· Chinese Listed Company.
· 10+ Years Experience on LED Display Screen Manufacturing in China.
· Global Quality Standard with CE, EMC, ROHS, ETL, UL, FCC, ISO9001 Certificated.
· Overseas Customer in 120+ Countries in The World.
· Full Capable to Provide the Tailor Work of OEM, ODM.
1. Quality material starts it all
The idea of producing a quality LED screen is far-fetched when class is not keenly bserved and strictly implemented at the very beginning. How well a product turns out aesthetically, structurally and functionally at the end all depends on the quality of its starting raw materials.
The main parts for led display, is made by 1) the LED module 2) the control system and 3) the Cabinet. Therefore, including the LEDs, driving IC, PCB board, the module housing, cables, control card, and the cabinet, etc. Your LED Screen MUST pass the quality inspection strictly.
2. Experienced workers
Craftsmanship is at the heart of your LED screen manufacturer. We call ourselves craftspeople to express the passion we have for creating durable LED screens, and we are continually improving the manufacturing process, pushing your project to succeed as expected.
We believe only the most qualified staff can go that extra mile to meet the your expectations of perfection. It is the reason why we never stops to employ more LED screen experts in the LED display industry.
3. Efficient Plant & Machinery
We understand how important what the end-quality machine could bring brilliant and most stable led screen products for you.
Our investment in the latest technology also ensures that we can offer competitive pricing to make you satisfied. Four automated production lines allow us to achieve a higher output while maintaining the same high-quality product.
4. World class aging test
We are a very high focus on each process of inspection test when your led screen during production, and bring the quality report to you.
We have three parts for the test of your LED screen products to ensure when you receive the products without any problems. 1) 24 hours when we finish the SMT process of the LED module. 2) The first complete assembled LED cabinet light up and aging test; 3) 48 hours for full constructed LED screen aging test by playing the videos, single color carousel.
