Billboard LED Display Video Advertising Outdoor Led Display Signs , Digital Led Billboard 6500 Nits
Billboard LED Display High Quality Fixed LED Sign for Video Advertising
Billboard LED Display Specification
| Model | BOF P6.67 |
| Pixel Pitch | 6.67mm |
| Pixel Density | 22500 pixels/m2 |
| LED Type | SMD2727 |
| LED Configuration | 1R1G1B |
| Cabinet Dimension | 960mm*960mm |
| Cabinet Resolution | 144*144pixels |
| Weight | 65kg/sqm |
| Cabinet Material | Steel |
| Ingress Protection (front/rear) |
IP65/IP54 |
| Brightness | >6500nits |
| Viewing Angle(H/V) | 140°/140° |
| Driving Method | 1/6 scan |
| Frame Refresh | ≥ 60Hz |
| Data Refresh Rate | >1500Hz |
| Gray Scale | 16bit |
| Power Consumption(avg. ) | 300W/m2 |
| Input Voltage | AC 110/220±10% 50~60Hz |
| Temperature (operating/storage) |
-20~50°C / -40~60°C |
| Humidity(operating/storage) | 10%~90%RH / 10%~85%RH |
| MTBF | ≥1000hrs |
| Life Span | ≥100000hrs |
| Pixel Failure | <0.0003 |
Billboard LED Display Feature:
1. High difinition, wonderful visual performance;

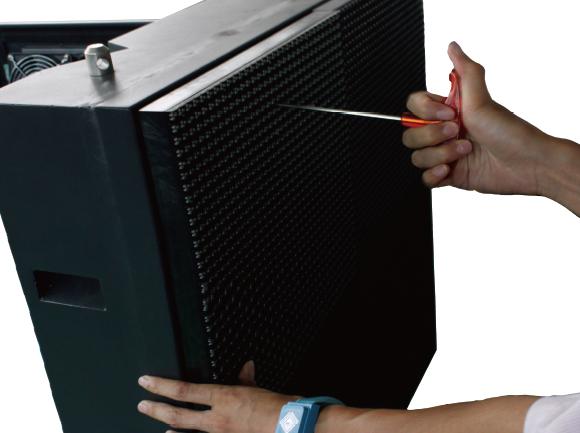

2. Fast Installation and Easy Maintenance.
Fast lock system guarantees a quick and easy installation
Conventional Rear Access
3. High refresh rate and high contrast, clear picture without flicker and distortion;
4. Outdoor Rated
IP65 Rating
Brightness adjustable for day and night
Selected LED for 7/24 work mode

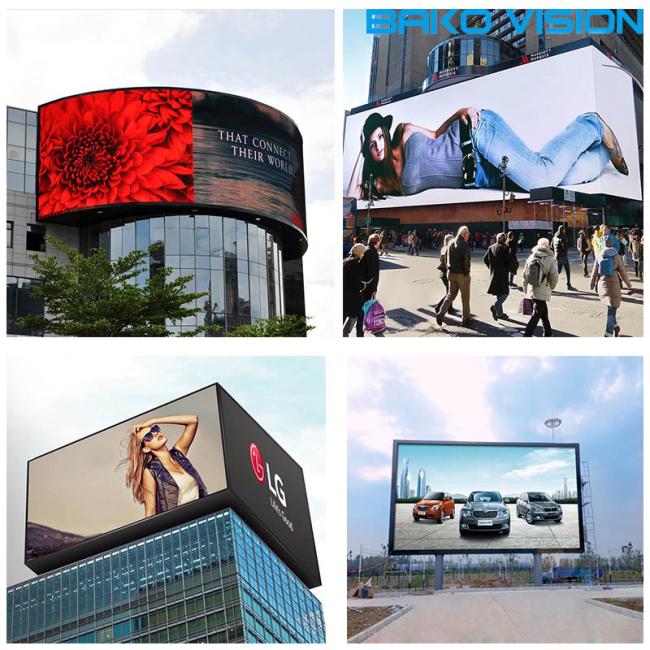

5. Multiple Application

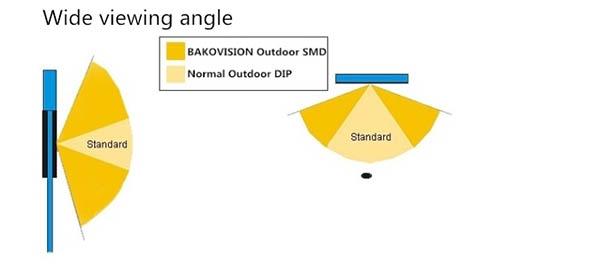

6.Wide Viewing Angle

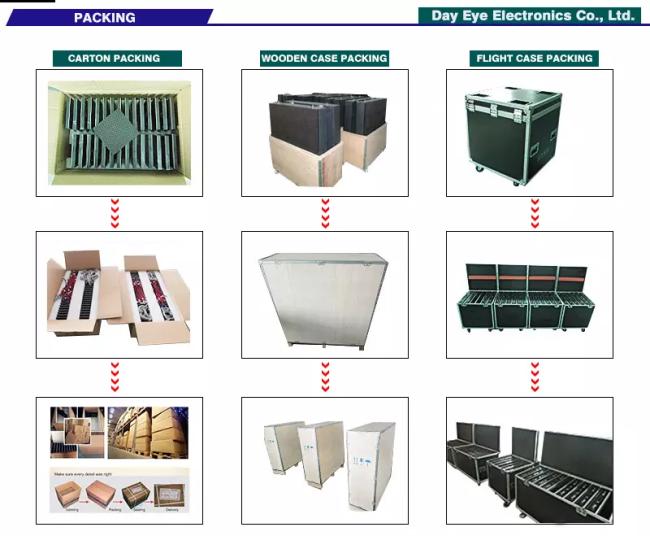

7. Package
Advantage:
Our company also can arrange our engineers to provide you professional installation guide and training for free via remote control, video and phone.
All of products will be tested many times and 100% promise the products are well before shipping.
The products can be customized according to your projects and offer you the CAD drawing for free.
We guarantee all of our displays, modules, spare parts for full two years. During the time, we will replace or fix our goods for free if there is something wrong with them.
Service
1.24-hour hotline service, including counseling and technical guidance.
2. On-line service.
3. Failure maintenance of LED panels.
4. Free professional technical training
5. Paid software upgrade.
6. Warranty service.
7. Engineering technical service.
FAQ:
Q1. Can I have a sample order for LED Display?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: Sample needs 3-5 days, mass production time needs 10-15days for order quantity more than
Q3. Do you have any MOQ limit for LED light order?
A: Low MOQ, 1PC for sample checking is available
Q4. Is it OK to print my logo on LED light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q5: Do you offer guarantee for the products?
A: Yes, we offer 3-5 years warranty to our products.
