Outdoor LED Display P6.67 P4.81 LED Screen Front Opening Cabinet for Highway Advertising
Outdoor LED Display P6.67 P4.81 LED Screen Front Opening Cabinet for Highway Advertising http://www.ledrentaldisplays.com
BOF-F Series ()
Outdoor LED Billboard
| Specifications | |
|---|---|
| Pixel Pitch(mm): | 4.81 / 5.95 / 6.67 / 8 / 10 |
| Brightness(nits): | Up to 7500 |
| Refresh Rate(Hz): | >1920 |
| Key Point: | Front service, wall mount installation, no need to make the maintenance space at the back |
Key Features
- Front Service.
- Energy-Saving Technology.
- Multifunctional Module Buckle.
- Steel/ Aluminum Cabinet.
- Fast Lock System.
- Waterproof with IP65.
Front Maintenance LED Billboard Electricity Parameter
| BOF-F-4 | BOF-F-5 | BOF-F-6 | BOF-F-8 | BOF-F-10 | |
| Physical Pitch | 4.81mm | 5.95mm | 6.67mm | 8mm | 10mm |
| Pixel Configuration | SMD2727 | SMD2727 | SMD2727 | SMD3535 | SMD3535 |
| Module Dimensions | 250×250mm | 320x320mm | 320x160mm | ||
| Panel Dimensions(W × H) | Customized | ||||
| Physical Resolution of Module (WxH) | 52x52 | 42x42 | 48×48 | 40x20 | 32×16 |
| Panel Material | Steel/Aluminum | ||||
| Grayscale | 16bit | ||||
| Colors | 281trillion | ||||
| Average Power Consumption | 90 W/m2 | ||||
| Max. Power Consumption | 230 W/m2 | ||||
| Refresh Rate | ＞1920Hz | ||||
| Brightness | > 5000 nits | > 5500 nits | > 6000 nits | > 6200 nits | > 6500 nits |
| Expected Lifetime | 100,000 Hrs | ||||
| Maintenance Way | Front | ||||
| IP Rating(Front/Rear) | IP65/IP54 | ||||
How do I install the outdoor led screen as I am new in this industry?
1. About how to install it :
The good thing is, in many countries and regions, there are companies that will do the work for you.
If you don't know much about this industry, we can recommend our partners to help you install your outdoor LED display.
Just hit us up.
2. About how to use and operate :
We will provide online remote technical support, which can teach you how to use the LED display.
If you don't like going that route, we have very clear video tutorials as well that will guide you on how to use and operate your LED display screens.
Third, once you become our customer, you can actually visit our factory and have our guys teach you.
Lastly, if you want to work in this industry for a long time, you can become one of our dealers. We will send our technical staff to your country and train your guys on site every two year.
About Bako Vision
- Over 10 Years Experience on LED Display Screen Manufacturing in China.
- Chinese Listed Company.
- 3 Years High Quality Warranty Provided.
- Global Quality Standard with CE, EMC, ROHS, ETL, UL, FCC, ISO9001 Certificated.
- Overseas Customer in 120+ Countries in The World.
- Full Capable to Provide the Tailor Work of OEM, ODM.
FAQ:
Q1. What is pixel pitch?
A1: The center distance between two adjacent pixels, the smaller the spacing, the shorter the visible distance. The industry is often referred to as P to indicate the point spacing.

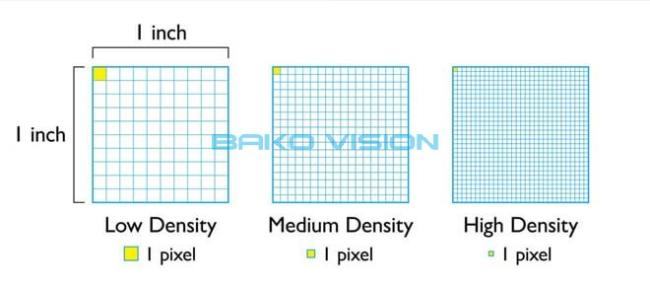

Q2. What is pixel density?
A2: Also known as dot matrix density, it usually refers to the number of pixels per square meter of display.
A3: A small unit consisting of several display pixels that are structurally independent and can form an LED display. Typical are 8*8, 8*7, etc.

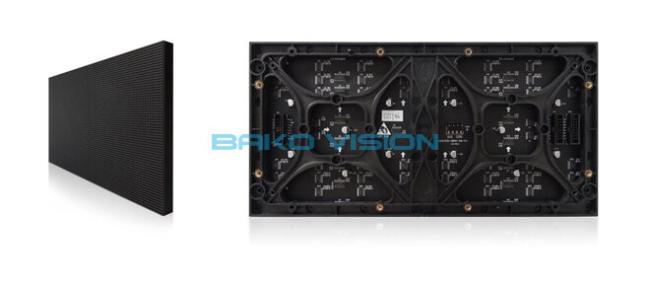

Q4. What is LED module?
A4: It has a basic unit with circuit and installation structure, display function, and display function by simple assembly.
A5: A display screen composed of an array of LED devices by a certain control method.
Q6: What is the refresh rate ?
A6: The number of times the display screen is repeatedly displayed by the display in unit time.
