Outdoor Mobile LED Screen Display P6 P8 P10 Truck Mounted Billboard Advertising Signage
Outdoor LED Mobile Display P6/P8/P10 Truck Mounted Billboard Advertising Signage Screen
BOF Series ()
Truck Mobile Billboard
| Specification | |
|---|---|
| Pixel Pitch(mm): | 5 / 6.67 / 8 / 10 |
| Brightness(nits): | Up to 8000 |
| Refresh Rate(Hz): | >1920 |
| Key Point: | Most common outdoor LED billboard |
Key Features
- SMD 3in1 Technology, wide view angle 160°/140°.
- Waterproof with IP65, suitable for every condition.
- High brightness up to 8000nits, visible from every direction even face to direct sunshine.
- Good heat dissipation with 4pcs fans in each cabinet.
- Giant TV set, providing moving advertising or broadcasting live feed for your event.
Movable Truck Screen Parameters
| BOF-5 | BOF-6 (Trend) | BOF-8(Hot sale) | BOF-10 | |
| Physical Pitch | 5mm | 6.67mm | 8mm | 10mm |
| Pixel Configuration | SMD2727 | SMD2727 | SMD3535 | SMD3535 |
| Module Dimensions | 320×160mm | |||
| Panel Dimensions(W × H) | Customized | |||
| Physical Resolution of Module (WxH) | 64x32 | 48×24 | 40x20 | 32×16 |
| Panel Material | Steel/Aluminum/Magnesium alloy | |||
| Grayscale | 16bit | |||
| Colors | 281trillion | |||
| Average Power Consumption | 360 W/m2 | |||
| Max. Power Consumption | 900 W/m2 | |||
| Refresh Rate | ＞1920Hz | |||
| Brightness | > 5500 nits | > 6000 nits | > 6200 nits | > 6500 nits |
| Expected Lifetime | 100,000 Hrs | |||
| Maintenance Way | Rear | |||
| IP Rating(Front/Rear) | IP65/IP54 | |||
Mobile LED Display Installation Effect

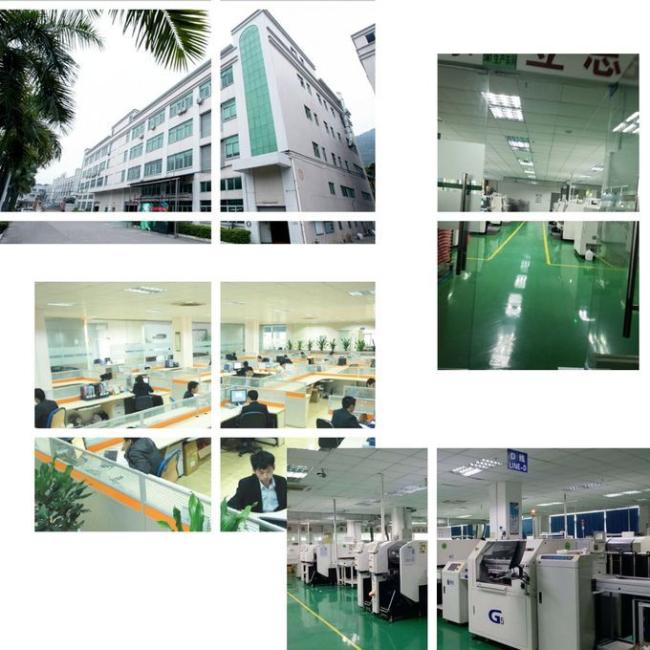

About Bako Vision
- Over 10 Years Experience on LED Display Screen Manufacturing in China.
- 3 Years High Quality Warranty Provided.
- Global Quality Standard with CE, EMC, ROHS, ETL, UL, FCC, ISO9001 Certificated.
- Overseas Customer in 120+ Countries in The World.
- Full Capable to Provide the Tailor Work of OEM, ODM.
FAQ:
Q1. What is pixel pitch?
A1: The center distance between two adjacent pixels, the smaller the spacing, the shorter the visible distance. The industry is often referred to as P to indicate the point spacing.
Q2. What is pixel density?
A2: Also known as dot matrix density, it usually refers to the number of pixels per square meter of display.
Q3. What is LED Cabinet?
A3: A small unit consisting of several display pixels that are structurally independent and can form an LED display. Typical are 8*8, 8*7, etc.
Q4. What is LED module?
A4: It has a basic unit with circuit and installation structure, display function, and display function by simple assembly.
Q5. What is LED display?
A5: A display screen composed of an array of LED devices by a certain control method.
Q6: What is the refresh rate ?
A6: The number of times the display screen is repeatedly displayed by the display in unit time.
