Taxi Top LED Screen Digital Mobile Roof Display Single / Double Sided Signage With Slim Light Aluminum Cabinet
Digital Taxi Top Advertising LED Screen Mobile Roof Display Double-Sided Wireless 3G 4G
BT Series ()
Taxi Top Advertising Display
| Specification | |
|---|---|
| Pixel Pitch(mm): | 2.5 / 3 / 5 |
| Brightness(nits): | Up to 6000 |
| Refresh Rate(Hz): | >1920 |
| Key Point: | Digital Moving Billboard |
Key Features
- Support 3G/4G/WIFI/USB/GPS.
- Aluminum cabinet with anti-UV, anti-pulverization painting, anti-aging resistance.
- Lower power consumption.
- Directly connect to taxi battery.
- Single or Double-sided
Taxi Mobile LED Screen Parameters
| BT-2 | BT-3(Hot sale) | BT-5 | |
| Physical Pitch | 2.5mm | 3mm | 5mm |
| Pixel Configuration | SMD 2121 | SMD 2121 | SMD 2727 |
| Pixel Density | 160,000 pixels/m² | 111,111 pixels/m² | 40,000 pixels/m² |

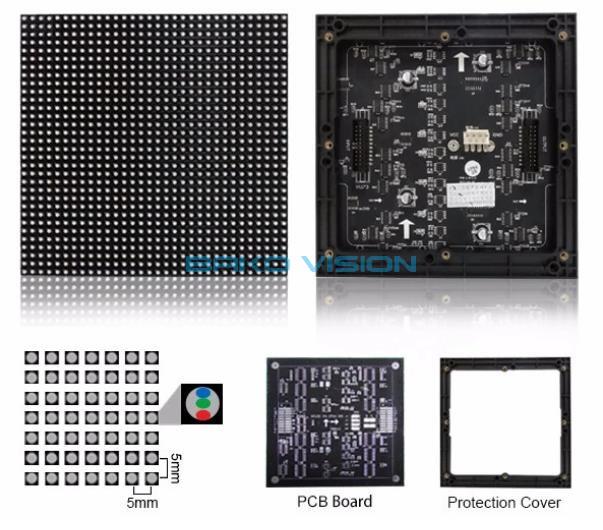

| Module Dimensions(W*H)(mm) | 160*160 | 192*196 | 160*160 |
| Screen Size(mm) | 960*320 | 768*288 | 960*320 |
| Screen Resolution | 384*128 | 256*96 | 192*64 |
| Panel Material | Aluminum | ||
| Screen Weight | 26kg | 15kg | 23kg |
| Gray Scale | 16 bit | ||
| Refresh Rate | >1920 Hz | ||
| IP Rating | IP65 | ||
| Operating Temp/Humidity | -40ºC-70ºC/ 10%-90% |
-40ºC-70ºC/ 10%-90% |
-40ºC-70ºC/ 10%-90% |
| Storage Temp/Humidity | -30ºC-60ºC/ 10%-60% |
-30ºC-60ºC/ 10%-60% |
-30ºC-60ºC/ 10%-60% |
| Avg./ Max. Power Consumption | 180/480W/ set | 80/2500W/ set | 150/450W/ set |
| Servicing | Back | ||

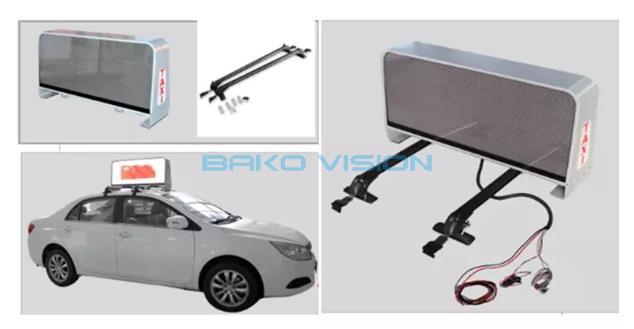

Digital LED Sign Product Details
Car Top LED Billboard Case Study
About Bako Vision
- Over 10 Years Experience on LED Display Screen Manufacturing in China.
- 3 Years High Quality Warranty Provided.
- Global Quality Standard with CE, EMC, ROHS, ETL, UL, FCC, ISO9001 Certificated.
- Overseas Customer in 120+ Countries in The World.
- Full Capable to Provide the Tailor Work of OEM, ODM.
Quality Assurance
QUALITY NOT ONLY MEANS EXCELLENCE BUT ALSO RELIABILITY
1. Quality material starts it all
The idea of producing a quality LED screen is far-fetched when class is not keenly bserved and strictly implemented at the very beginning. How well a product turns out aesthetically, structurally and functionally at the end all depends on the quality of its starting raw materials.
The main parts for led display, is made by 1) the LED module 2) the control system and 3) the Cabinet. Therefore, including the LEDs, driving IC, PCB board, the module housing, cables, control card, and the cabinet, etc. Your LED Screen MUST pass the quality inspection strictly.
2. Experienced workers
Craftsmanship is at the heart of your LED screen manufacturer. We call ourselves craftspeople to express the passion we have for creating durable LED screens, and we are continually improving the manufacturing process, pushing your project to succeed as expected.
We believe only the most qualified staff can go that extra mile to meet the your expectations of perfection. It is the reason why Bibiled never stops to employ more LED screen experts in the LED display industry.
3. Efficient Plant & Machinery
We understand how important what the end-quality machine could bring brilliant and most stable led screen products for you.
Our investment in the latest technology also ensures that we can offer competitive pricing to make you satisfied. Four automated production lines allow us to achieve a higher output while maintaining the same high-quality product.
4. World class aging test
We are a very high focus on each process of inspection test when your led screen during production, and bring the quality report to you.
We have three parts for the test of your LED screen products to ensure when you receive the products without any problems. 1) 24 hours when we finish the SMT process of the LED module. 2) The first complete assembled LED cabinet light up and aging test; 3) 48 hours for full constructed LED screen aging test by playing the videos, single color carousel.
