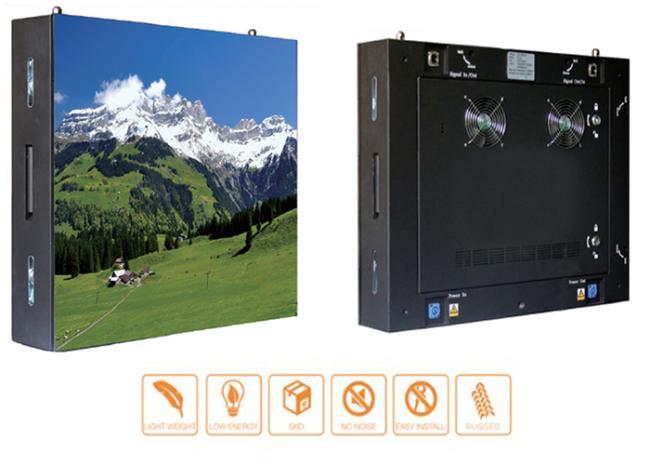

P4mm Fixed Led Video Wall Indoor 256x128mm Led Modules Front / Rear Access Service
P4mm Indoor Front or Rear Access service,256x128mm led modules , fixed led video wall
Indoor fixed led Main Features:
1. Indoor Fixed Display, Conventional and Cost Friendly
2. Conventional Pixel Pitch, High Cost Performance
3. Front / Rear Access Options
4. High Color Fidelity and High Contrast Ratio
5.Different control system to meet clients’ requirements. Synchronous or asynchronous. Different brands.
6.The integration of lamp and driving IC, together with with the multi-circuit structure, achievs evenly-distributed current, low power consumption and fast heat dissipation.
7.MBI5124 IC or MBI5153 IC is used to improve stablity of the whole led display. From SMT workshop to plastic bottom part. There are professional staff responsible for every step.
Indoor fixed led Parameter
| BIF-P4 | |
| Physical Pitch | 4mm |
| Pixel Configuration | SMD 2121 |
| Pixel Density | 62,500 pixels/m² |
| Module Dimensions(W*H)(mm) | 256 × 128 |
| Panel Dimensions(mm) | 1024 × 768 |
| NO. of Modules Per Panel (W*H) | 4X6 |
| Panel Material | Steel |
| Colors | 281Trillion |
| Processing | 16 Bit |
| Physical Resolution of Module(W*H)(mm) | 64*32 |
| Physical Resolution of Panel(W*H)(mm) | 256*192 |
| Single Cabinet Weight | 32 kg/panel |
| Average Power Consumption | 260W/panel |
| Max Power Consumption | 690W/panel |
| Brightness | 600-1000nits |
| Viewing Angle | H:160°/ V:140° |
| Operating Temp/ Humidity | -20ºC-50ºC/10%-90% |
| Storage Temp/ Humidity | -40ºC-60ºC/10%-90% |
| Expected Lifetime | 100,000 Hrs |
| Servicing | Front |
| IP Rating(Front/Rear) | IP 40 |
| Max Stacking | 20/10 |
| Max Hanging | 20/10 |
| Refresh Rate | >2,880 Hz |
| Scan Method | 1/16 Scan |
Indoor fixed led Pruduct details

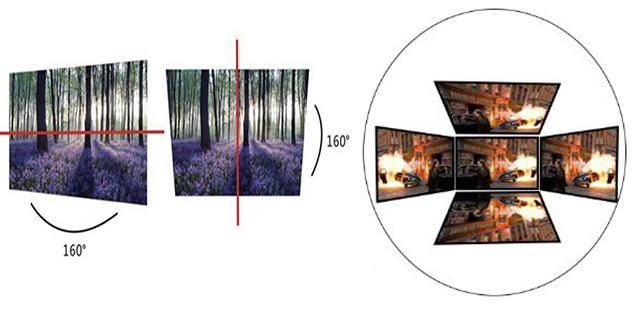

Wide viewing angles.
Both the horizontal viewing angle and vertical viewing angle can reach 160 degrees.
Indoor fixed led Pruduct Strict Aging Test
1.Kinglight or Nation Star LED lamp is used in led module, 48 hours' module aging test and 72 hours' led screen aging test before packing.
2.Screen after use for a long time still can keep perfect quality and white balance and enough brightness.
3.Advanced packaging equipment, guarantee the quality and life expectancy
Various Mountings
Front installation for most of wall mounting
Trade terms:
1. Payment terms: by TT, 30% advanced payment at time of order placement and the balance before shipment
2. Lead-time: 20 working days after receiving 30% deposit and balance before the shipment
3. Price term: EXW Shenzhen or FOB Shenzhen
4. Shipment: by sea or by air, Shenzhen Port, HS Code: 8528591090
5. Packing: foam packing in wooden carton or flight case
6. Warranty: we offer 2 years warranty, all products have age testing, shaking testing, waterproof testing, in general, module test is 24h, entire screen test is 72h, series of testing before delivery can ensure transportation and quality products.
About us
LED Vision Technology Limited , started in Shenzhen in 2005, a world class manufacturer of technologically advanced LED displays, focusing on high end professional customers among domestic and overseas markets. BAKOVISION is fully capable to provide the tailor work of OEM, ODM, creative LED models beside of standard LED screens.
After service
Pre-producing:
- Get complete requirements of clients.
- To do a thorough analysis.
- Offer a most reasonable and scientific solution.
- Customized design.
In producing:
- Producing progress updating for clients
- Particular Installation CAD and Design Diagram for clients.
After service:
- 2 years free maintenance
- 7 days a week, 24 hours a day for 5 years on-line service for any technical support for any customers
- Free training for customers in factory
- Local Partner Installation Service
