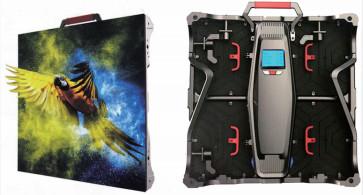

800 Nits Brightness HD LED Display P2.5mm AC 110/220V Die Casting Aluminum Cabinet
P2.5mm Small Pitch 480x480mm Die-Casting Aluminum Cabinet Indoor HD LED display for Meeting Room
Features&Advantages
♦ TUV EMC Certificated
♦ Both Front and Rear Service Available
♦ High Definition Indoor Display
♦ Unsurpassed Color Uniformity
♦ Fast Installation and Easy Maintenance
♦ Superior Electronic Features
♦ Slim, Light Weight and Quiet
| Module | |
| Pixel Pitch | 2.5mm |
| Pixel Density | 160,000 pixel/sqm |
| Physical Resolution (W * H) | 96* 96mm |
| Module Size | 240 * 240mm |
| LED Type | SMD2121 |
| LED Configuration | 1R1G1B |
| Cabinet | |
| Resolution (W * H) | 192* 192mm |
| Dimension(mm)(W * H) | 480*480mm |
| Cabinet Material | Die-Casting Aluminum |
| Cabinet Weight | 7kg/panel |
| IP Rating(Front/Rear) | IP40 |
| Screen | |
| Brightness | >800nits |
| Input Voltage | AC 110/220±10% 50~60Hz |
| Gray Scale | 16bits |
| Refresh Rate | >3840Hz |
| Dot Defects Rate | <0.0001 |
| Viewing Angle (H/V) | 160°/140° |
| Life Span | ≥100000hrs |
| Power Consumption(avg.) | 640W/m² |
| Operating Temp/Humidity | ﹣20℃～50℃ / 10%～90%RH |
| Storage Temp/Humidity | ﹣40℃～60℃ / 10%～85%RH |

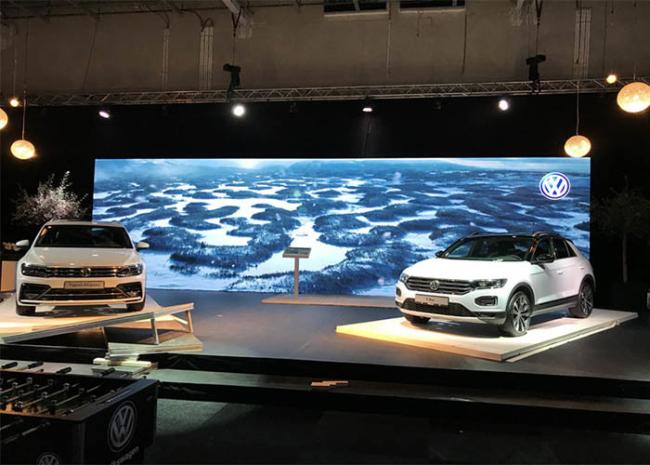

Appications:
FAQ
1. How many models are there in this series?
Yes, For indoor fine pitch HD led display we have P1.25mm P1.56mm P1.66mm P1.92 mm.
2. How about your warranty?
2 years warranty and lifetime maintenance
3. What's your delivery time?
Within 30 days after we receiving deposit.
4. What's your package and shipping way?
Goods are packed with wooden case or flight case; delivered by air shipping.road shipping or sea shipping
Trade Terms
1. Package: Wooden package, Flight case.
2. Payment: T/T, 30% deposits, 70% balance before delivery
3. Shipping port: Shenzhen
4. Warranty time: 2years
5. Delivery time:20-25 working days
Warranty service
- Free warranty for two year, providing lifetime maintenance service. A certain cost will be charged within a reasonable range after th
- warranty period. During the warranty period, we are responsible for the maintenance and maintenance of all equipment specified in
- the contract, and any replacement or repair of any equipment or components caused by product design, installation process,
- materials, product quality and components. Ensure that the system reaches the design life.
- Responsible for technical support and version upgrade of related software.
- During the maintenance period, if the customer has other transformation needs, our company will use its own technical advantages
- to help customers complete the transformation work in a timely, fast and safe manner.
