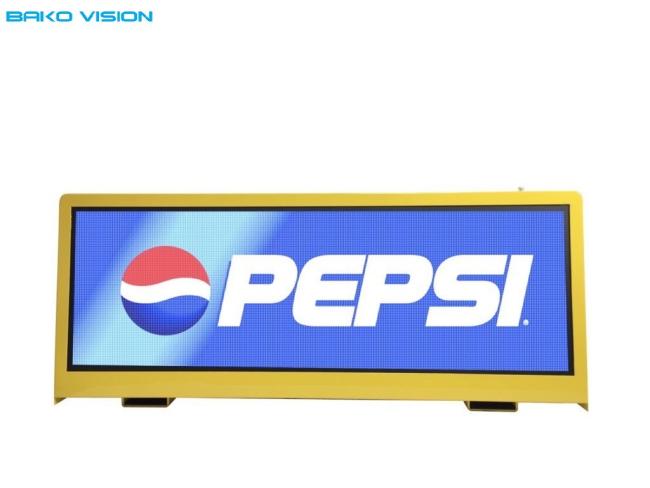

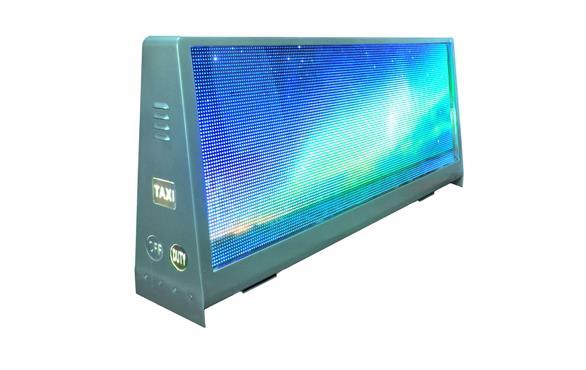

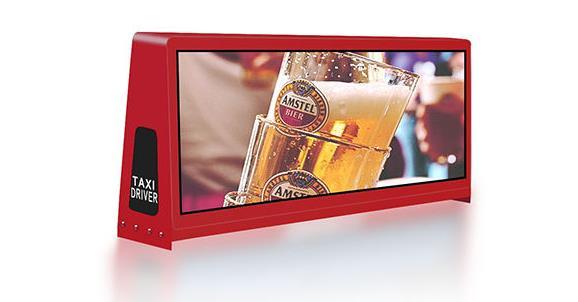

Movable Aluminum 5500 Nits Taxi Roof LED Advertising Screen
Digital Taxi Roof LED Advertising Screen Movable Waterproof LED Billboard Surpport USB/3G/4G/WIFI
Taxi Top LED Sign, Delivery Your Message !
BT Series ()
Taxi Top Advertising Display
| Specification | |
|---|---|
| Pixel Pitch(mm): | 2.5 / 3 / 5 |
| Brightness(nits): | 3,500 - 5,500 |
| Refresh Rate(Hz): | >1920 |
| Key Point: | Digital Moving Billboard |
Mobile Taxi Signage Features
1. Car Battery Protection
With the special car power supply, once the car battery was closed, the screen will be closed too. If the car battery is going to run out, the power supply will shut down automatically until the power is enough to play again.
2. Overvoltage and Over Current Protection
As the car battery offers the power to the screen when the car engine started, the voltage may rise to the highest, and also when there has some traffic, the voltage will be unstable, the special power supply could protect the screen.
3. Low Power Consumption
High power consumption will bring more problems to the car, so it is important to use low power consumption as a protection for the car.
4. High Brightness
Above 5000nits, it is visible under sunlight.
5. Cooling System Design
6. 100% Vibration Testing

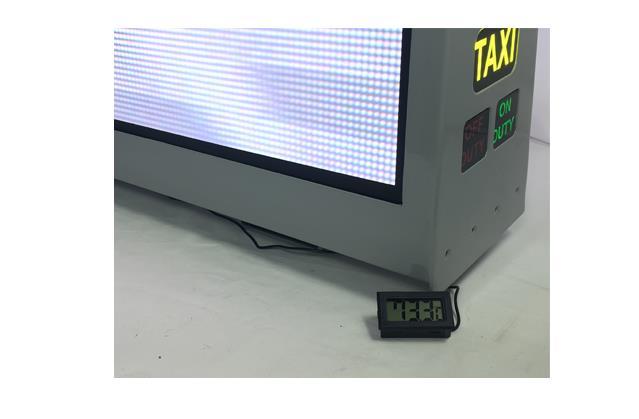

- Whole display tested at 70℃ for 24 hours.
- 100% vibration Testing.
- Easy installation and maintenance
- Easy SD-Card installation
- Easy installation with Card Bracket
- Easy replacement of module& power supply
- Location Precise Advertising
- Advertising Management System
- 3G/4G/WIFI/USB control
- GPS real-time monitoring
- Lower Power Consumption of whole sign, which enable to be running on any car embedded battery system.
- Intelligent Power Supply Management.
- Good Ventilation by using high speed & ball-bearing Fan.
Taxi LED Sign Electricity Parameters
| BT-2 | BT-3(Hot sale) | BT-5 | |
| Physical Pitch | 2.5mm | 3mm | 5mm |
| Pixel Configuration | SMD 2121 | SMD 2121 | SMD 2727 |
| Pixel Density | 160,000 pixels/m² | 111,111 pixels/m² | 40,000 pixels/m² |
| Module Dimensions(W*H)(mm) | 160*160 | 192*196 | 160*160 |
| Screen Size(mm) | 960*320 | 768*288 | 960*320 |
| Screen Resolution | 384*128 | 256*96 | 192*64 |
| Panel Material | Aluminum | ||
| Screen Weight | 26kg | 15kg | 23kg |
| Gray Scale | 16 bit | ||
| Refresh Rate | >1920 Hz | ||
| IP Rating | IP65 | ||
| Operating Temp/Humidity | -40ºC-70ºC/ 10%-90% |
-40ºC-70ºC/ 10%-90% |
-40ºC-70ºC/ 10%-90% |
| Storage Temp/Humidity | -30ºC-60ºC/ 10%-60% |
-30ºC-60ºC/ 10%-60% |
-30ºC-60ºC/ 10%-60% |
| Avg./ Max. Power Consumption | 180/480W/ set | 80/2500W/ set | 150/450W/ set |
| Servicing | Back | ||

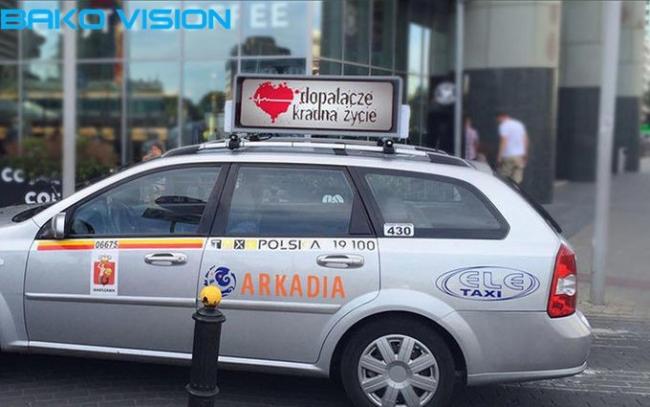

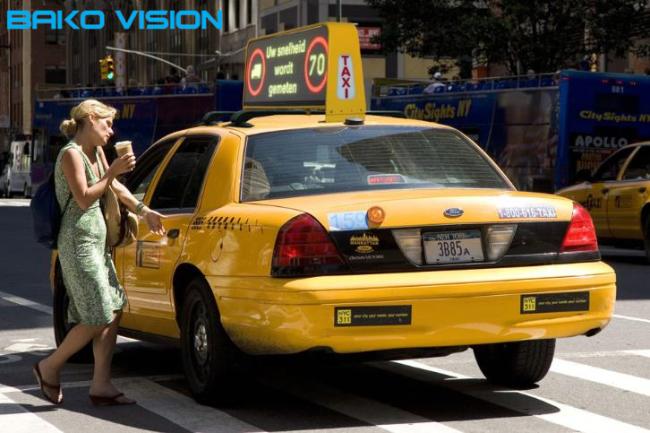

Taxi Top Billboard Case Study

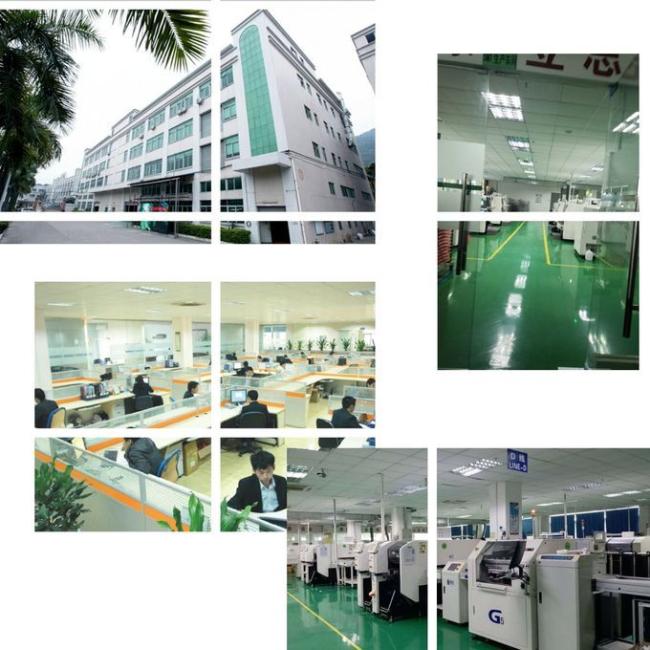

About Bako Vision
- Over 10 Years Experience on LED Display Screen Manufacturing in China.
- 3 Years High Quality Warranty Provided.
- Global Quality Standard with CE, EMC, ROHS, ETL, UL, FCC, ISO9001 Certificated.
- Overseas Customer in 120+ Countries in The World.
- Full Capable to Provide the Tailor Work of OEM, ODM.
FAQ:
A: For less quantity, you could choose the wifi controller card, the cost will more economic.
Q2: How to install the screen on the top of car?
A: Yes, we can provide you API, then your engineer can design your own platform.
A: We will provide a video guide for you, with a bracket to fix the screen on the car roof.
A: You can see the log on the platform. There will show you a list.
A: With a brightness sensor, the screen can adjust brightness automatical.
A: We will do 72 hours aging test and waterproof test.
