High brightness of 4500nits Double Sides P4.68 Outdoor Round Logo Sign
High brightness of 4500nits Double Sides P4.68 Outdoor Round Logo Sign
P4.68 Outdoor Round Logo Sign Specs
| BR(Round)-4.68 | |
| Physical Pitch | 4.68mm |
| Pixel Configuration | SMD 3-in-1 |
| Pixel Density | 45,511 pixels/m² |
| Module Dimensions (W × H) (mm) | 300 x 300 |
| Inner Diameter (mm) | 600 |
| NO.of Modules Per Panel (W × H) | 2 x 2 |
| Physical Resolution of Module (W × H) | 64 x 64 |
| Physical Resolution of Panel (W × H) | 128 x 128 |
| Panel Material | Steel |
| Weight | 16 kg/unit |
| Gray Scale | 16 bit |
| Colours | 281 trillion |
| Contrast Ratio | 2,000 : 1 |
| Power Consumption | around 400 W/unit |
| Driving Method | 1/8 Dynamic Scan |
| Operating Temp/Humidity | -20°-60°/10%-95% |
| Brightness | >4,500 nits |
| Brightness Adjustment | Manual Adjustment |
| Control Method | WIFI/USB/Cloud Platform |
| Refresh Rate | >1,920 Hz |
| Working Voltage | Ac 240/100±10% 50 Hz/60 Hz |
| Viewing Angle | 120°(V)120°(H) |
| Expected Lifetime | 100,000 Hrs |
| Servicing | Front |
| IP Rating |
IP65 |

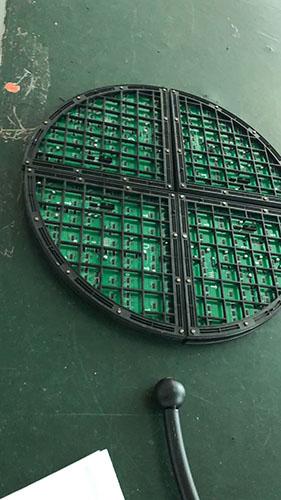

P4.68 outdoor circle logo sign dimension
P4.68 Outdoor Round Logo Sign Description
Nowadays led logo sign is becoming one the most popular media for Starbucks coffee stores, MacDonald stores, Kentucky stores, other retail chain stores, drug chain stores, etc. We have two different logo sign available: one is P4.68 outdoor logo sign with 300x300mm radius, the other is P8 outdoor logo sign with 320x320mm radius.Now we will explore what makes logo sign attractive, the main reason is like following features shows:
1. High brightness & high contrast ratio makes sharp pictures.
Max 4,500nits brightness make it still visible even under the sunshine.
While the contrast ratio is around 4,000:1, so dynamic pictures always available;
2. Easy operation, you plug in power switch then the logo sign displays video or pictures automatically;
Logo sign can be directly mounted on the wall by normal bolt.
You can deliver video to logo sign with your mobile phone, or via GPRS 3g 4g 5g, USB disk, or cloud system which can manager logo sign clusters esp. for logo sign in different cities.
3. Double sides logo with front access led modules makes maintenance easy;
4. IP65 makes completely water-proof;
5. for customs logo sign you only can show one ads, but with led logo sign you can play ads
from other clients, then you can get extra income;
