Dual Backup P0.9 HD LED Display Indoor Fine Pitch For Conference Center
Dual Backup P0.9 HD LED Display Indoor Fine Pitch For Conference Center
P0.9 Fine Pitch Led Display Specs
| UHD-0.937 | |
| Physical Pitch | 0.937mm |
| Pixel Configuration | SMD 0606 |
| Pixel Density | 11,138,489pixels/m² |
| Module Dimensions (W × H) (mm) | 150 × 168.75 |
| Panel Dimensions (mm) | 600 × 337.5 |
| NO.of Modules Per Panel (W × H) | 4 × 2 |
| Physical Resolution of Module (W × H) | 160 × 180 |
| Physical Resolution of Panel (W × H) | 640 × 360 |
| Panel Material | Die-casting |
| Single Cabinet Weight | 6 kg/panel |
| Gray Scale | 16 bit |
| Colours | 281 trillion |
| Contrast Ratio | 4,000 :1 |
| Average Power Consumption | ≤300 W/m² |
| Max Power Consumption | ≤600 W/m² |
| Brightness | 600~800 nits |
| Refresh Rate | >2,880Hz |
| Horizontal Viewing Angle | 160° |
| Vertical Viewing Angle | 140° |
| Expected Lifetime | ≥100,000 Hrs |
| Operating Temp/Humidity | -20°C-50 °C / 10%-90% |
| Storage Temp/Humidity | -40°C-60°C / 10%-85% |
| IP Rating (Front/Rear) | IP 40/ IP 21 |
| Scan Method | 1/60 Scan |
1. High gray scale under low brightness :Adjustable(>800nit) brightness not only meets the brightness requirements of indoor LED display screen, but also maintain the delicate and clear image by 16 bit gray level.Besides,high definition effect comes with uniform luminance and soft color is suitable for indoor. Under full white testing, pure white color is always available.
2. Wide viewing angle:Whether sitting in a spacious or narrow room, the horizontal and vertical viewing angles had reach 140 degrees, which greatly meets the viewing needs of the audience in different directions.The images effect will not change largely in the range.
3. Excellent thermal management:In a enclosed or Semi closed space, heat dissipation are very important, and the unique design allows this product have an excellent thermal management.We also add a mask to the surface, which due to heat dissipation, and focus light, to achieve better viewing effect.
4. Energy-saving:Constant voltage chip driving reduces the power consumption and prompts the stability. The power consumption per square meter is about 220W.
5. Lightweight and seamless:Ultra-lightweight box, it is easier and faster to operate and install, so it can save labor and time costs.
6. we can let our engineer to guide our clients to do installation.

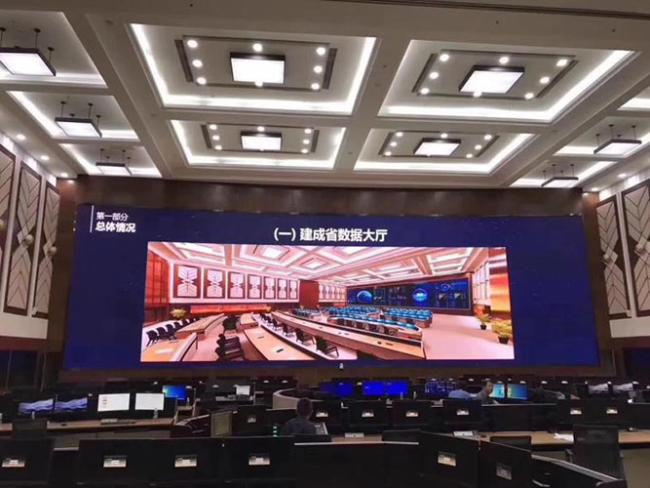

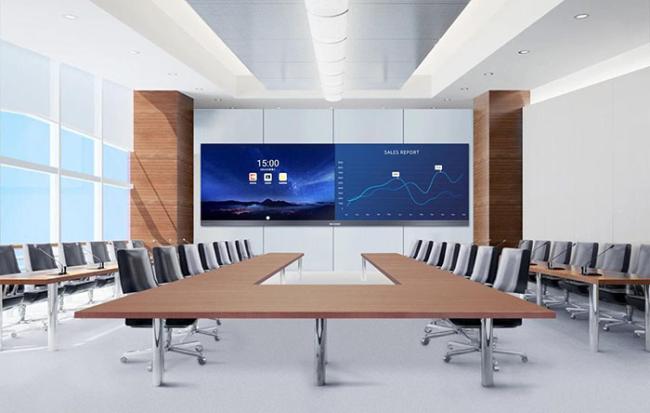

P0.9 indoor fine-pitch led display application
