Dovetail Style Metal Floor Decking Roll Making Machine For Construction PLC Control
Price:
Negotiable
MOQ:
1 set
Delivery Time:
50days
Brand:
BMS
Product Description

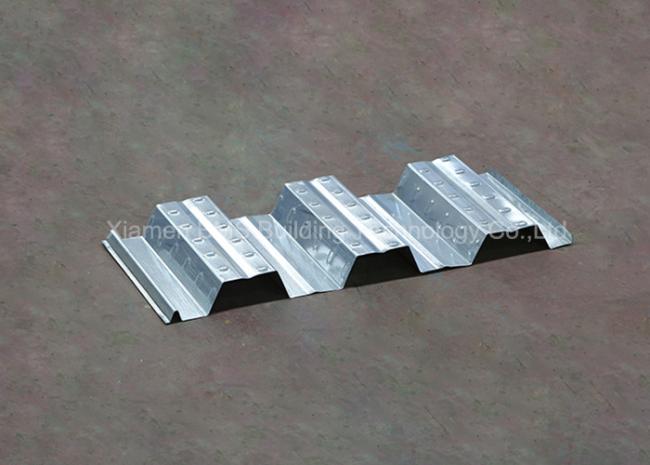

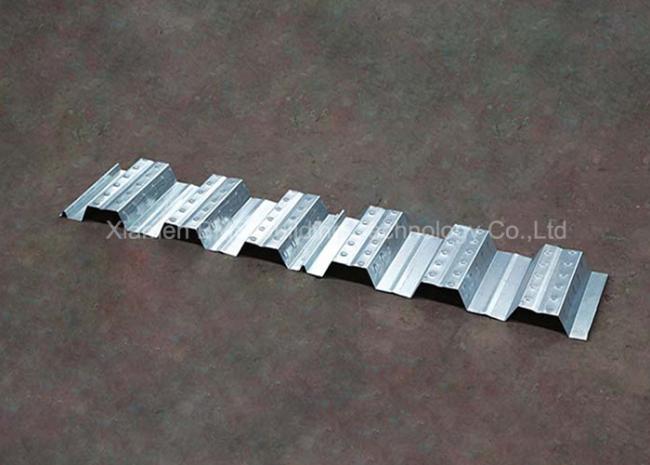

DOVETAIL STYLE Metal Floor Decking Roll Making Machine for YX54-175-700 Profile
1. Details of floor tile decking roll making machine
| Material |
| Material Thickness(&):0.5mm |
| Applicable material: Galvanized Steel Sheet, Q235-345Mpa Yield Strength |
| Machine Components |
| 1)Manual Decoiler: one set |
| Max. feeding width: 500mm, coil ID range 470mm±30mm |
|
Capacity: Max. 3Ton
|

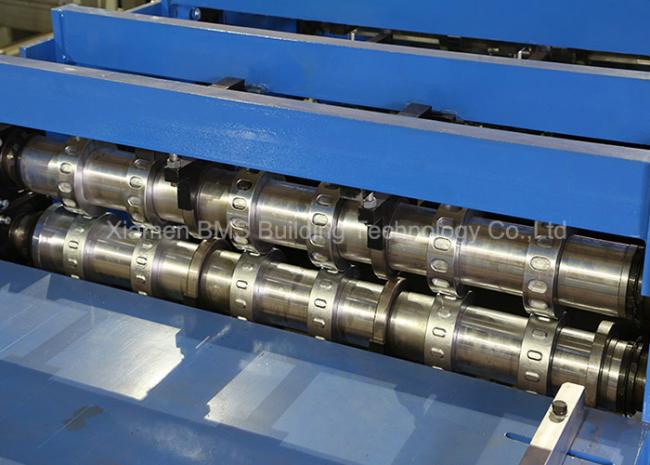

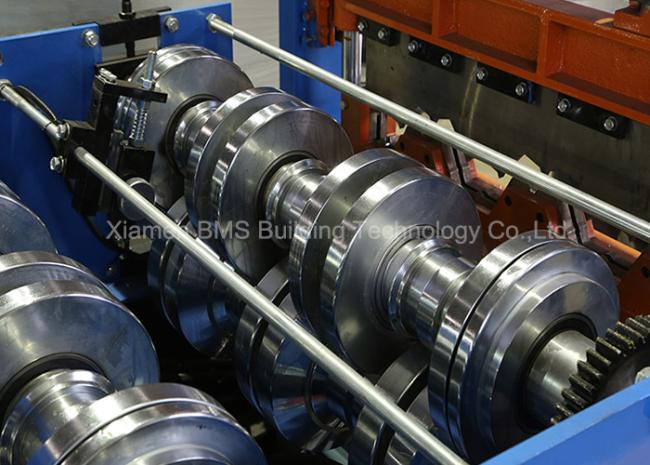

| 2) Cold Rolling Mills: |
|
Rollers manufactured from bearing steel GCr15, precision machined, hard Chrome Coated with thickness 0.04mm(for longer life and anti-rust) ;
|
| Motor Driving, Gear chain transmission, 28 forming stations and 7 rollers(3 upper rollers and 4down rollers)for straightening and leveling) |
| Main Motor=30KW, Frequency speed control |
| Forming speed of approx.12-18m/min |
| 3)Hydraulic Cutting device |
| hydraulic motor: 7.5KW, Hydraulic pressure range: 0-12Mpa |
| Cutting tool material: Cr12Mov, Heat treatment |
| 4)PLC Control System(Touch screen brand: Taiwan WEINVIEW, Inverter brand: Finland VOCAN/Denmark Danfoss, Encoder brand: Japan Koyo) |
| Control the quantity and cutting length automatically |
| Combined with: PLC, Inverter, Touch Screen, Encoder, etc |
| Cut-to-length tolerance≤±1mm |
| Control Voltage 24V |
| 5) Exit Rack Un-powered, two units |
2. Machine features of floor tile decking roll making a machine
The advantages of metal roof panel cold roll forming machine as follows:
1. Easy operation, low maintenance cost
2. Material saving
3. The type of panel is widely used.
4. Easy operation, short construction period
