Heavy Duty Cut To Length Line Machine 245-550MPa Yield Strength For Steel Coil
1. Details of Cut to Length Machine Line
| Material |
| Material Thickness(&):0.5-2.0mm |
| Applicable material: Galvanized Steel Coils, Hot Rolled Coils, Cold Rolled Coils, yield strength 245Mpa or 550Mpa |
| Machine Components |
| 1)Manual Decoiler: one set |
| Max. feeding width: 500mm, coil ID range 470mm±30mm |
|
Capacity: Max. 3Ton
|
| 2) Cold Rolling Mills: |
| Main Motor=4KW, Frequency speed control |
| Forming speed of approx.12-15m/min |
| 3)Hydraulic Cutting device |
| hydraulic motor: 3.7KW, Hydraulic pressure range: 0-12Mpa |
| Cutting tool material: Cr12, Heat treatment |
| 4)PLC Control System(Touch screen brand: Taiwan WEINVIEW, Inverter brand: Finland VOCAN/Denmark Danfoss, Encoder brand: Japan Koyo) |
| Control the quantity and cutting length automatically |
| Combined with: PLC, Inverter, Touch Screen, Encoder, etc |
| Cut-to-length tolerance≤±1mm |
| Control Voltage 24V |
| 5) Exit Rack Un-powered, three units |

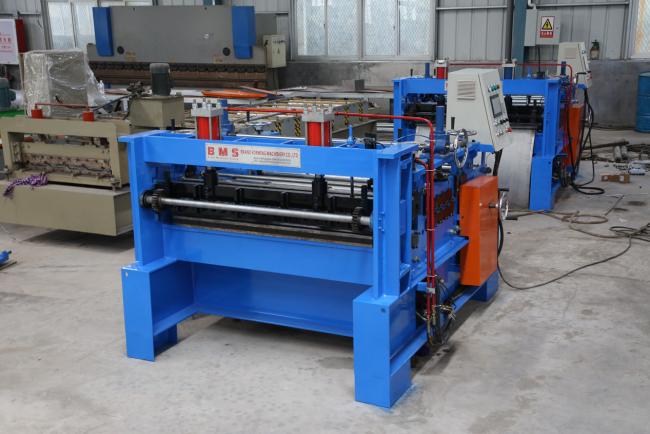

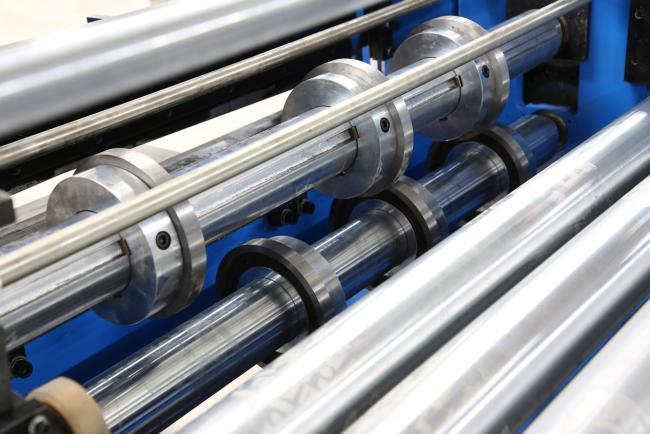

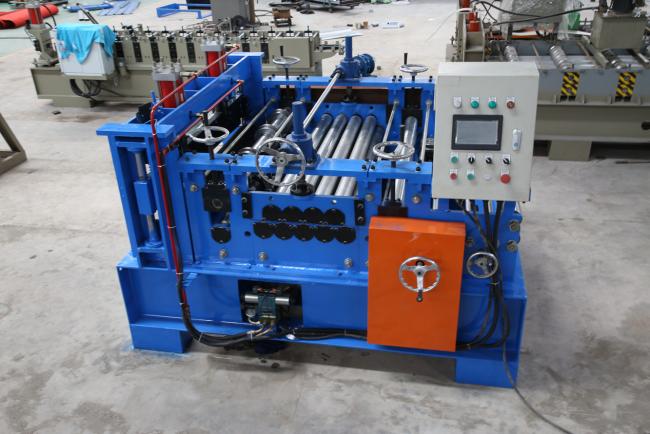

Detailed Images of Cut to Length Machine Line
After-sale service of cut to length line
1. The warranty of cut to length line
is one year after the client receives the machine.
Within one year, we will courier the replacement parts to the client free of charge.
2. We offer technical support for the entire life of our machines.
3. We can send our technicians to install and train the workers in the clients' factories at extra cost.
Terms of trade
1. Minimum order quantity (MOQ): 1 piece
2. Delivery time: about 45 workdays
3. Port of loading: port of Xiamen
4. Type of payment: by T/T or by L/C
5. Export: Australia, UK, Ireland, Mexico, Brazil, Israel, Dubai, Russia, India, Taiwan, Singapore,
Malaysia, Thailand, Philippines, Myanmar, Vietnam, South Africa, Mozambique,
Zambia, Zimbabwe, Nigeria, Egypt, Sudan, etc.
