Stable Running Steel Bar Truss Deck Roll Forming Machine H450beam Housing
| 1.Main features of steel bar truss deck roll forming machine The advantages of floor decking machine are as follows: 1. Low cost, lightweight but high strength, short building period, and re-cycle use 2. Save material, no waste. 3. Easy operation, low maintenance cost |
2. Detailed of steel bar truss deck roll forming machine
Machine Parts
1) Steel bar truss deck roll forming machine pre-cutter
Brand: BMS Original: China
With feeding material guide.
Made by high-quality mold steel Cr12 with heat treatment
Cutter frame made from high quality 20mm steel plate by welding
hydraulic motor:2.2 KW, Hydraulic pressure range: 0-16Mpa
2) Steel bar truss deck roll forming machine rollers
Brand: BMS Original: China
Rollers manufactured from high quality 45# steel, CNC lathes, Heat Treatment.
with black treatment or Hard-Chrome Coating for options.
Body frame made from 350# H type steel by welding

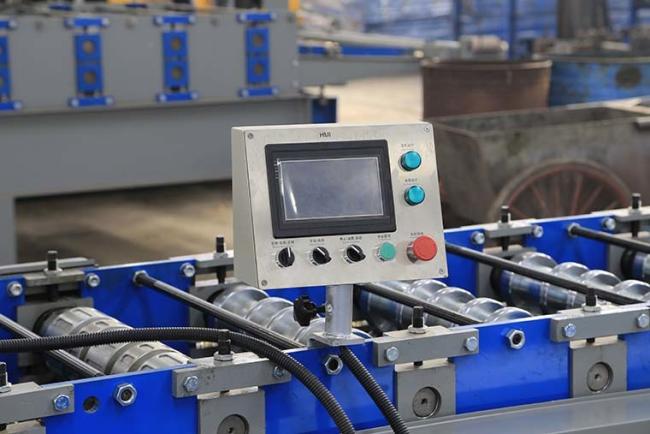

3) Steel bar truss deck roll forming machine touch screen
Brand: BMS Original: China
4) Steel bar truss deck roll forming machine product show
Brand: BMS Original: China
5) Steel bar truss deck roll forming machine decoiler
Brand: BMS Original: China
ManualDecoiler: one set
Un-powered, manually control steel coil inner bore shrinkage and stop
Max. feeding width: 1200mm, coil ID range 508mm±30mm
Capacity: 5-9 Ton
6) Steel bar truss deck roll forming machine exit rack
Brand: BMS Original: China
Un-powered, one unit
Other detailes of steel bar truss deck roll forming machine
Suitable for material with thickness 0.5-0.6mm
Shafts manufactured from 45#, Main shaft diameter=φ65mm, precision machined
Motor driving, Gear chain transmission, 11 steps to form.
Main motor: 5.5KW, Hydraulic motor: 2.2KW
Frequency speed control. Forming speed of approx.12-15m/min
PLC Control System (Touch screen brand: German Schneider Electric/Taiwan WEINVIEW,
Inverter brand: Finland VOCAN/Taiwan DELTA/ALPHA, Encoder brand: Japan Koyo/OMRON)
Combined with: PLC, Inverter, TouchScreen, Encoder, etc
Cut-to-lengthtolerance≤±2 mm
Control Voltage 24V
User's manual in English
After-sale service of steel bar truss deck roll forming machine
1. The warranty of the purlin steel bar truss deck roll forming machine
is one year after the client receives the machine.
Within one year, we will courier the replacement parts to the client free of charge.
2. We offer technical support for the entire life of our machines.
3. We can send our technicians to install and train the workers in the clients' factories at extra cost.
Terms of trade
1. Minimum order quantity (MOQ): 1 piece
2. Delivery time: about 45 workdays
3. Port of loading: port of Xiamen
4. Type of payment: by T/T or by L/C
5. Export: Australia, UK, Ireland, Mexico, Brazil, Israel, Dubai, Russia, India, Taiwan, Singapore,
Malaysia, Thailand, Philippines, Myanmar, Vietnam, South Africa, Mozambique,
Zambia, Zimbabwe, Nigeria, Egypt, Sudan, etc.
