5.5KW Fully Automatic 600AType Steel Bar Truss Plate Bottom Cold Rolling Forming Machine with Galvanized Sheet

The production process:

Decoiler—→Guiding device—→Roll-forming Machine—→Dit—→Hydraulic cutting —→Roll-forming Machine—→Run out table

Components details:

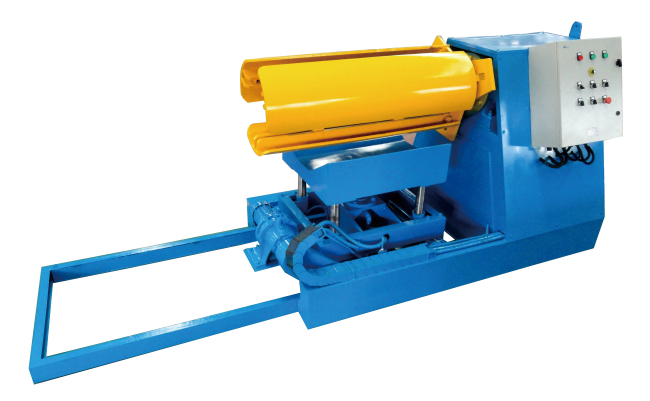

3T Manual De-coiler

1.Maximum capacity:3tons
2.Maximum width: 800mm
3.Inner diameter:508mm±30mm
4.Maximum outer diameter: 1450mm
5.Way of expansion: Manual

Guiding device

Pit system

Pit Roller: GCr15

Hydraulic cutting system
1.Power source: The hydraulic system up and down is powered by hydraulic station
2.Hydraulic station power: 3KW
3.Length tolerance: 6m±1mm
4.Cutting blade: Cr12Mov

Main roll forming machine

The machine is Automatically adjustable wide.
You can change the width by PLC on the cabinet screen.
1.Matching material: galvanized sheet, etc
2.Stations: 11stations
3.The material of the rollers:45#steel heat treatment, with chrome treatment.
4.The material of the shaft: 45#steel quenching and tempering treatment, hardness HRC 48-52
5.Main motor power:5.5 KW motor
6.Hydraulic station power: 3KW
7.Line speed: 14-16m/min
8.Voltage:380V/50Hz/3phase
9.Total Weight of the line:6 tons
10.Length line: 7meters Main machine: 5.5meters
11.Transmission:18teech chain
12. Side plate: 18mm double-wall side plate

PLC control system
1.The brand for the control cabinet:

2. There will be an emergency button on the control panel, once an emergency issue happens, then all the lines will be stopped. It’ll protect the users’ safety.

Run out table
1.Way of drive: unpower
2. Length: 3meters
3. Quantity: 2 sets
