Automatic Fire Damper Blade Forming Machine With GCr15 Mould Roller
Price:
Negotiable
MOQ:
1 set
Delivery Time:
35days
Brand:
BMS
Product Description
CE Certification Automatic Fire Damper Blade Forming Machine with GCr15 Mould Roller
Fire damper blade forming machine process
Uncoiler-Feeding guide-Main roll former-Punching-cutting-Support rack
| 1 | Applicable | Fire Damper Blade |

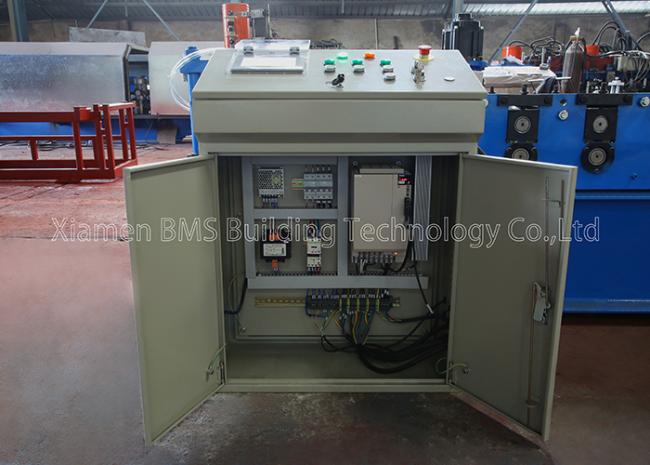

| 2 | Control System | PLC(GERMAN Brand) |
| 3 | Roller forming station | 14 station |
| 4 | The thickness of the feeding material | 0.5-1.2mm |
| 5 | Productivity | 40-50m/min |
| 6 | Rollers' material | Galvanized sheet |
| 7 | Diameter of shaft | 60mm |
| 8 | Weight | About 13.0T |
| 9 | Size | 8.0m*0.6m*1.2m |
| 10 | Voltage | 380V 50Hz 3phases |
| 11 | Cutter Mould | Cr12Mov with quenched treatment |
| 12 | Mainframe | H400 steel welding |
| 13 | Power | 7kw |
Brief parameters of fire damper blade forming machine
Mould material
The mould uses Gr15, heat treatment 55-58° degrees hard plated, to maintain mould finish and durability
Raw material
2.0mm galvanized steel sheet, calculate the material width according to the drawing.
Sidewall
Wallboard uses A3 board, thickness 25mm
Bearing
Main bearing Model 6308 made in HRC
Shaft
The shaft is finished with 45# steel material after quenching and tempering heat treatment, the main shaft diameter is 48mm
Transmission
Transmission motor 4kw*1 three-phase 380V50HZ
Transmission main chain 1.2 inches
Operation
Operation mode: manual feeding, automatic forming
Cutting

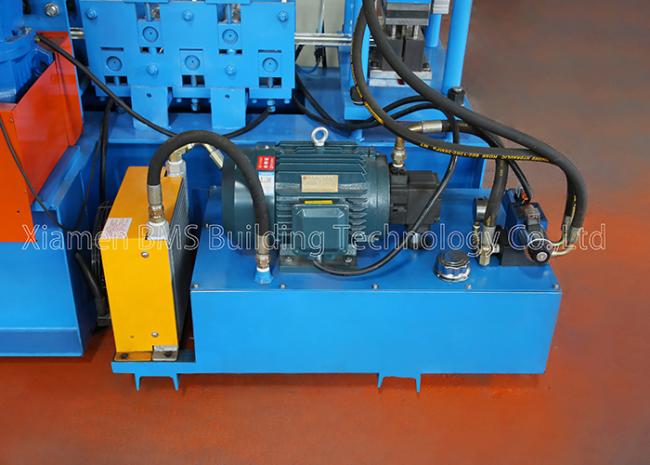

Cutting method Fully automatic hydraulic cutting and punching.
Forming speed
Forming speed 8-10m/min
Exit rack
Material rack 1 set of vertical material rack
Production
Production 35 working days
