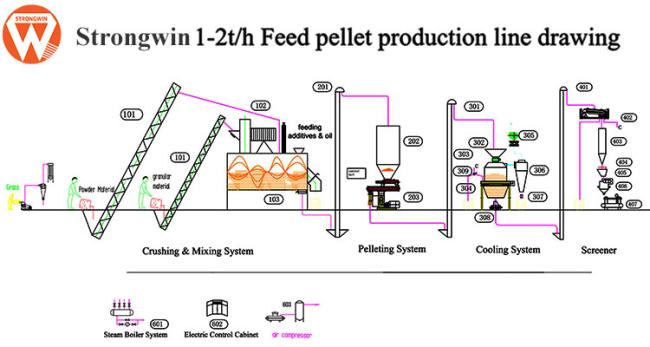

380V 50Hz Pellet Making Equipment , SZLH 250 1-2TPH Animal Feed Processing Plant

No.

Product

type

Power(KW)

1.Raw materials receiving and crushing and mixing system

101

Screw Conveyor

TSLL16

2.2

102

Hammer Crusher

SFPZ56*20

15.00

103

Ribbon Mixer

SHW1.0

7.5

2.Pelleting system

201

Bucket Elevator

TDTG36/18

2.2

204

Pellet Machine(include control box)

SZLH25

11*2+2.2+0.75

3.Cooling system

303

Airlock

GFY250

0.75

304

Counter Flow Cooler

SKLN11×11

0.75

305

Air Blower

4-72-4A

5.50

308

Pellet crusher

SSLG15*80

5.5

309

Manual Three-way

SD20*20

4.Auxiliary System

402

Rotary Screener

SFJH80*2d

1.5

5.Auxiliary System

601

Boiler

Hammer Crusher
Adopts regrinding crushing technology, widen the screen in 360°,the materials can be crushed averagely.

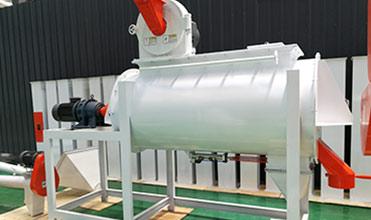

Ribbon Mixer
Coefficient of variation is less than 5%, the mixing time is 5 minutes, then the materials can be discharged form one side. There is no dead corner when mixing, and this machine is easy to maintenance.

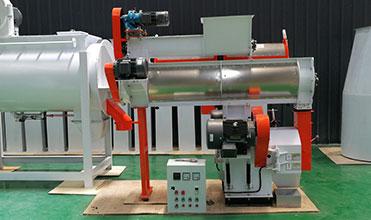

SZLH250 Pellet Machine(include control box)
Good quality ting die, stainless steel conditioner, reliable working, adopts double motors driving, over-loading protection.

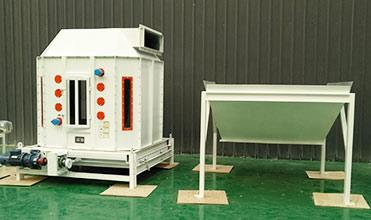

Counter Flow Cooler
Adopts counter-flow cooling technology, the pellets can be cooled averagely and no crack. The cooling time and volume can be adjusted, and there are no residues by discharging.

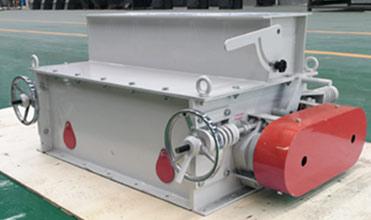

Crumbler for animal pellet production plant
Different poultry, livestock or aquatic feed pellets are with different sizes. Some big ones should be crushed into small ones. Double-roll feed pellet crumbler is suitable for crushing poultry feed, such as chicken feed, duck feed and goose feed etc.

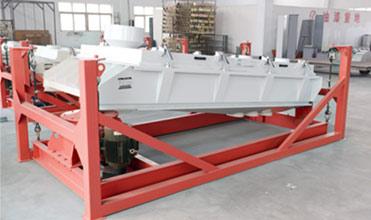

Rotary Screener for animal feed plant
The crushed feed pellets are with different sizes, and there may be some powder. The rotary grading sieve can be used to screen and grade the feed pellets. After processing, you can get the qualified feed pellets without fine powder.

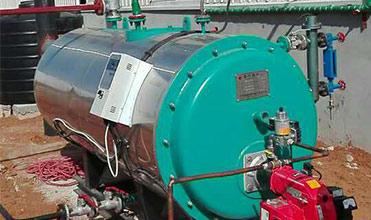

Boiler for animal feed production plant

Provide steam for SZLH250 feed pellet machine

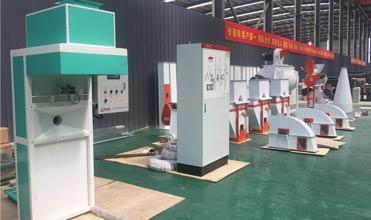

Feed Pellet Packing Process

The feed pellets should be packed for transporting, storing or selling. Automatic weighing and packing machine can weigh and pack the pellets automatically with high accuracy.

The raw material and finished pellet

The feed pellets are usually made of corn, brown rice, paddy, alfalfa ,elephant grass, Ryegrass,sorghum and soybean meal etc
