1-2.5TPH Yield Feed Pellet Machine For Poultry Farm 2mm 4mm Screw 12-120rpm
1-2.5TPH Yield Feed Pellet Machine To Make Animal Feed For Poultry Farm 2mm 4mm

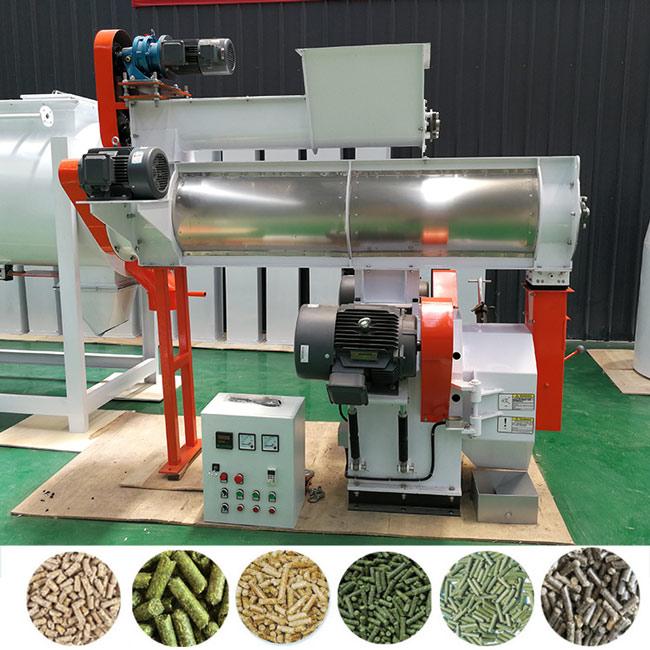

Introduction of SZLH250 Feed Pellet Machine
SZLH250 ring die feed pellet machine is widely used to produce pellets for animals,such as, chicken, pig, horse, cattle and other poultry and livestock animal. The pellets by our machine have firm and smooth structure and easy operate.
Application
Widely used in large,medium and small aquaculture,grain feed factory,livestock farm,poultry farm,individual farmers, small and medium sized farms, as well as feed manufacturer plant.
Advantage
1. Conditioner spindle, paddle, bolt ,wall tube are 304 stainless steel,Motor is Siemens motor
2. Conditioner paddle stainless steel castings, bolts fixed installation, angle adjustable, but other factory is welding, the angle can not be adjusted. Conditioner can be adjusted by adjusting the paddle then adjust the material to stay time in conditioner. This is the welding pad can not do!
3. Holder, the ring die, roller high-strength alloy forged pieces, the CNC machining heat treatment, high precision, high strength and long service life!
Technical Parameter
| Items | SZLH250 |
| Production Capacity | 1-2t/h |
| Power of Main Motor | 22kw |
| Power of Feeding Screw Motor | 0.75 KW |
| Power of conditioner Motor | 1.5 KW |
| Diameter of ring die | Φ250mm |
| Speed of ring die(r/min) | 300rpm |
| Speed of feeding screw | 12-120rpm |
| Pellet specification | φ2,φ3,φ4,φ4.5,φ5,φ6,φ8,φ10mm |
| Amount of roller | 2 |
| Diameter of roller | Φ110mm |
| Shaping rate of pellet | ≥ 95% |
| Pulverization rate of pellet | ≤12% |
| Stability of pellet in the water | ≥20min |
| Noise (dB(A)) | ≤85dB(A) |
| Working temperature of ring die | ≤85℃ |
| Working pressure of steam | 0.3Mpa |
| Steam consumption(t/h) | 0.05 |
| Temperature of steam(℃) | 130-150℃ |
| Shape dimension | 2250*1430*2040mm |
| Voltage | 3phase 380V,50Hz Can be customized) |
| Control cabinet | Included |
