Ring Die Animal Feed Manufacturing Machines For Zambia Chicken Duck 220V 380V
Ring Die Feed Pellet Machine Price For Zambia Chicken Duck Turkey Pigeon
Brief Description of ring die feed pellet machine

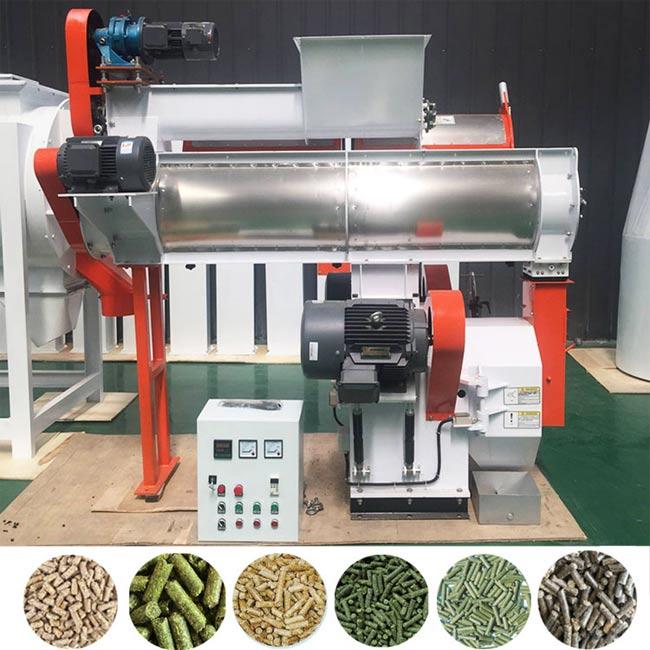

SZLH250 Ring die feed pellet machine Capacity is 1-2t/h, can be single used or application in feed pellet production line.
Advantages of ring die feed pellet machine
1. Conditioner spindle, paddle, bolt ,wall tube are 304 stainless steel,Motor is Siemens motor
2. Conditioner paddle stainless steel castings, bolts fixed installation, angle adjustable, but other factory is welding, the angle can not be adjusted. Conditioner can be adjusted by adjusting the paddle then adjust the material to stay time in conditioner. This is the welding pad can not do !
3. Holder, the ring die, roller high-strength alloy forged pieces, the CNC machining heat treatment, high precision, high strength and long service life !
Technical Parameters
| Items | SZLH250 |
| Production Capacity | 1-2t/h |
| Power of Main Motor | 22kw |
| Power of Feeding Screw Motor | 0.75 KW |
| Power of conditioner Motor | 1.5 KW |
| Diameter of ring die | Φ250mm |
| Speed of ring die(r/min) | 300rpm |
| Speed of feeding screw | 12-120rpm |
| Speed of stirrer | |
| Pellet specification | φ2,φ3,φ4,φ4.5,φ5,φ6,φ8,φ10mm |
| Amount of roller | 2 |
| Diameter of roller | Φ110mm |
| Shaping rate of pellet | ≥ 95% |
| Pulverization rate of pellet | ≤12% |
| Stability of pellet in the water | ≥20min |
| Noise (dB(A)) | ≤85dB(A) |
| Working temperature of ring die | ≤85℃ |
| Working pressure of steam | 0.3Mpa |
| Steam consumption(t/h) | 0.05 |
| Temperature of steam(℃) | 130-150℃ |
| Shape dimension | 2250*1430*2040mm |
| Machine weight | |
| Voltage | 3phase 380V,50Hz Can be customized) |
| Control cabinet | Included |
