Livestock Feed Pellet Machine America CPM Model Individual Farmers 350r/Min Stirrer

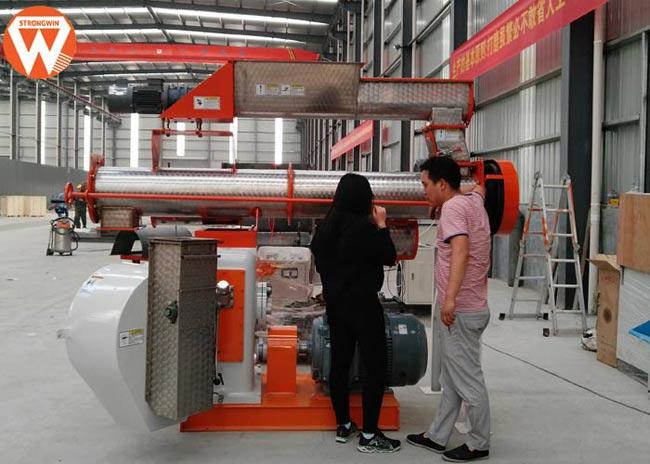

America CPM Model Poultry Livestock Feed Pellet Machine For Sale In Philippines
Features of Poultry Livestock Feed Pellet Machine
1. Driven by variable frequency motor, the feeder can be adjusted automatically within a certain scope according to the production;
2. The interlock device, outer machine discharging device and over-load protection device work together to ensure the safety and reliability;
3. Magnetic separation and removal mechanisms are configured to prevent the iron impurities from entering into the suppression of granulation chamber.
4. The cooking time and result are highly improved by the extended stainless steel feeding conditioner with the axial inlet steam.
Application of Poultry Livestock Feed Pellet Machine
Widely used in large,medium and small aquaculture,grain feed factory,livestock farm,poultry farm,individual farmers, small and medium sized farms, as well as feed manufacturer plant.
Technical Parameters
| Items | SZLH350 |
| Production Capacity | 5t/h |
| Power of Main Motor | 55kw |
| Power of Feeding Screw Motor | 1.5kw |
| Power of conditioner Motor | 3kw |
| Diameter of ring die | Φ350mm |
| Speed of ring die(r/min) | 336r/min |
| Speed of feeding screw | 12-120rpm |
| Speed of stirrer | 350r/min |
| Pellet specification | φ2,φ3,φ4,φ4.5,φ5,φ6,φ8,φ10mm |
| Amount of roller | 2 |
| Diameter of roller | Φ165mm |
| Shaping rate of pellet | ≥ 95% |
| Pulverization rate of pellet | ≤12% |
| Stability of pellet in the water | ≥20min |
| Noise (dB(A)) | ≤85dB(A) |
| Working temperature of ring die | ≤85℃ |
| Working pressure of steam | 0.1-0.4Mpa |
| Steam consumption(t/h) | ≥0.3 |
| Temperature of steam(℃) | 130-150℃ |
| Shape dimension | 2235*1010*2445mm |
| Machine weight | 2200kg |
| Voltage | 3phase 380V,50Hz Can be customized) |
| Control cabinet | Included |
