Pneumatic Conveyor Fish Feed Production Line With Cooler Machine 0.9-15mm Pellet

Pneumatic Conveyor Fish Food Processing Equipment With Cooler Machine

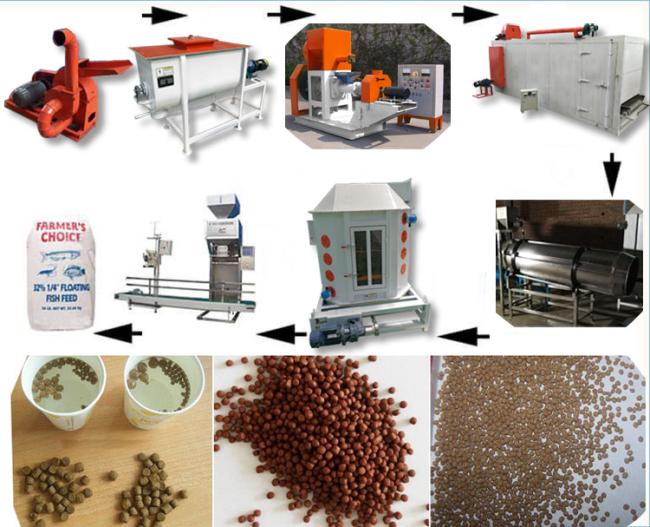

Main Procedures of Fish Food Processing Equipment

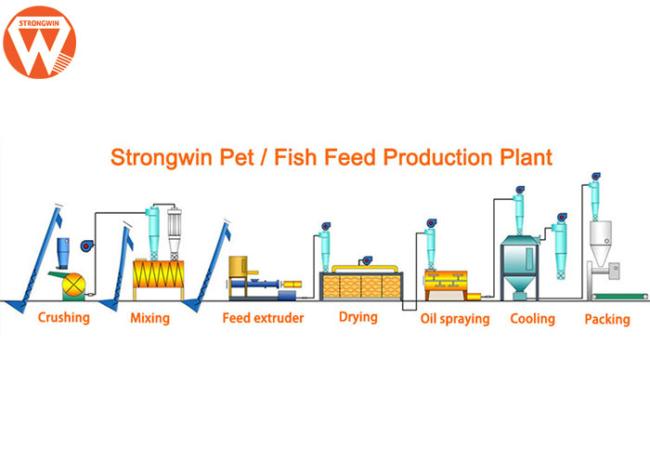

Material crushing→material mixing→extruding process→pellets drying→oil spraying process→pellets cooling→pellet packing

Fish feed crusher: Screen mesh has sieve disk with 1mm hole. The crushing chamber can realize the idealized water drop type and the unique air inlet mode, avoid the circulation phenomenon during the crushing process. The bottom of the crushing chamber is provided with a “U” type of secondary combat tank, which greatly improves the output. The full open type operation door starts quickly, with the elastic press screening mechanism, is convenient to maintenance and change screen.

Fish feed mixer: It‘s characterized by advanced technology & reliable performance. Power:7.5-11kW, carbon steel plate material.

Dry type fish feed extruder: Application of parted type, sleeve of bulking machine is easy to tear down and change parts. When the machine is in wear condition, it only needs to change barrel liners.

Pneumatic conveyor: It is collectively known as pneumatic tube conveyor, welded together by carbon steel plate. Fix unloader and chakroun into the next connected machinery. Granulated fertilizer is dropped into feed inlet from bulking machine.

Mesh-belt Type fish feed dryer: The dryer machine often applies in drying maters, when material via belt conveyor transported into dry tunnels, hot air will soon touch them and dry them.

Counter-flow type fish feed cooler: Mainly used in the process of cooling granular feeds in large and middle sizes feed mills ,to easily transport,storage and save, SKLN contraflow cooler cools granules with temperature 60-80 degrees and moisture 13-15 % from front dryer down to little higher than room temperate and moisture 12-13%.

Technical Parameters of Fish Food Processing Equipment
