Simple Structure Animal Feed Manufacturing Plant , 500 Kg/H Animal Feed Processing Plant
500 Kg/H Simple Structure Animal Feed Processing Plant For Poultry Farms
Introduction

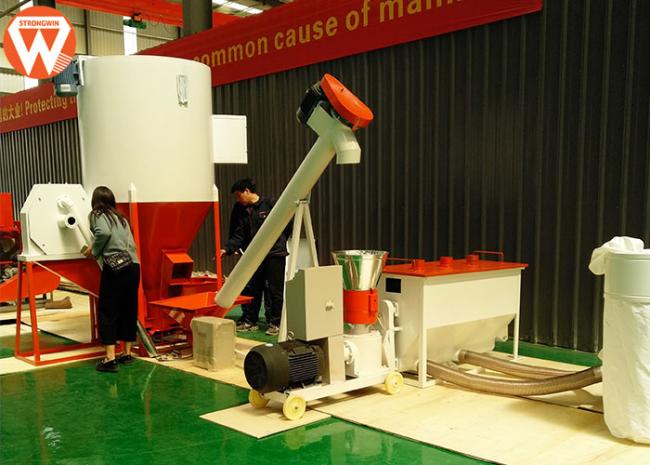

The animal feed plant is a small animal feed plant operating at 500kg/h. This animal feed plant combines all-in-one crushing & mixing, pelletizing, cooling, conveying n a whole unit, which is quite convenient for small pellet making workshops or farms. All processes can be CUSTOMIZED !
Small animal feed pellet production line makes 2-8 mm diameter animal feed pellets 500kg/h. Such as 2-4mm diameter chick feed pellets and pig feed pellets.2-5mm rabbit feed pellet, 4-8mm cattle or sheep feed pellets. The last pellet length can be adjusted.
Application of feed pellet plant
In general, this pellet machine can be make 2-8mm feed pellets for different animals, dia. 5mm pellets can used to feed cows, dia.4mm pellet can feed pigs and goats, dia.3mm feed pellet can feed chicken, duck, goose, dia. 2.5mm feed pellet can used to feed birds, etc. you can choose different size flat die according the animal you want to feed.
Perfectly suitable for home use and individual use, with large enough pellets capacity.
Makes nutritious, healthy, and tasty pellets for cow, pig, sheep, chicken and other animals.
The Technical Parameters
| Machine Name | Model | Yield | Quantity | Power kw | Remarks |
| Feed Grinder Mixer | 9FH-1000 | 1000kg/h | 1 | 11 |
crushing capacity 1t per hour, mixer volume 2m³(1t) |
| Screw conveyor | TLSS16 | 1000kg/h | 1 | 1.5 | |
| Flat die Pellet Machine | ZLSP260B | 400-600kg/h | 1 | 15 |
can make feed pellet for chicken, pigs, cattle and other animal |
| Cooling and sieve | LQSF50 | 500-800kg/h | 1 | 2.95 |
