250mm Ring Die Animal Feed Pellet Machine With Siemens Motor And SKF Bearing
250mm Ring Die Animal Feed Pellet Machine With Siemens Motor And SKF Bearing
Introduction of 250mm Ring Die Animal Feed Pellet Machine
Host bearings adopt the top ten brands in the world of SKF (Switzerland) bearings, reliable quality, long service life! Particle machine tail has a protective switch device installed, when the spindle bearing and spindle lock, the timely cut off the power, the spindle and has an effective protective effect !
Features of 250mm Ring Die Animal Feed Pellet Machine
1. US CPM models, use of high-strength precision gear transmission, transmission efficiency up to 99%
2. Die roller fixed with stainless steel knife pelletizing device

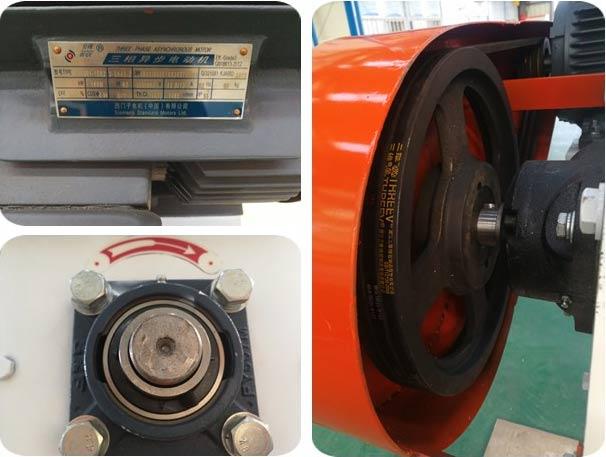

3. Siemens Motor and SKF Bearing
4. This pellet mill die roller is suitable for making high quality livestock and poultry, pig,
dog, chicken feeds and other materials in feed pelleting.
Application
Widely used in large,medium and small aquaculture,grain feed factory,livestock farm,poultry farm,individual farmers, small and medium sized farms, as well as feed manufacturer plant.
Technical Parameter of 250mm Ring Die Animal Feed Pellet Machine
| Items | SZLH250 |
| Production Capacity | 1-2t/h |
| Power of Main Motor | 22kw |
| Power of Feeding Screw Motor | 0.75 KW |
| Power of conditioner Motor | 1.5 KW |
| Diameter of ring die | Φ250mm |
| Speed of ring die(r/min) | 300rpm |
| Speed of feeding screw | 12-120rpm |
| Pellet specification | φ2,φ3,φ4,φ4.5,φ5,φ6,φ8,φ10mm |
| Amount of roller | 2 |
| Diameter of roller | Φ110mm |
| Shaping rate of pellet | ≥ 95% |
| Pulverization rate of pellet | ≤12% |
| Stability of pellet in the water | ≥20min |
| Noise (dB(A)) | ≤85dB(A) |
| Working temperature of ring die | ≤85℃ |
| Working pressure of steam | 0.3Mpa |
| Steam consumption(t/h) | 0.05 |
| Temperature of steam(℃) | 130-150℃ |
| Shape dimension | 2250*1430*2040mm |
| Voltage | 3phase 380V,50Hz Can be customized) |
| Control cabinet | Included |
