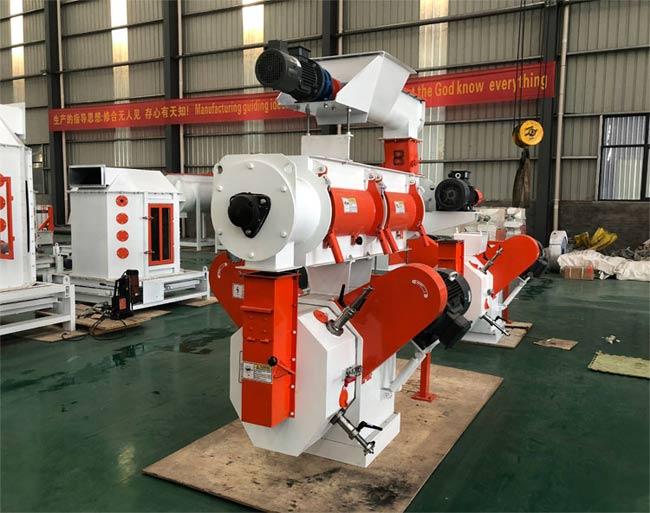

380V 50Hz 3 Phase 22 KW Animal Poultry Feed Pellet Processing Machine
380V 50Hz 3 Phase 22 KW Animal Poultry Feed Pellet Processing Machine
Introduction of Animal Poultry Feed Pellet Processing Machine
Frequency conversion feeding to ensure homogeneous material,lengthen and thickening stainless steel materials,dig open door intensity conditioner, more than 2-4 times volume capacity, long curing time, the return rate of feed improve 3-5%, adopt steam injection equipment to prevent the steam reflection.
Series ring die pellet mill main engine drives, high precision gear, ring die in quick detaching encircling hoop type, output higher 20% than belt drive
Equipped with steam automatic regulatory system to keep refining temperature constant
The complete machine transmission parts include electric motor with Switzerland “SKF” high quality bearing, ensure high-efficiency, stable and low noise drive
Larger type strengthen feeding conditioner in entire stainless steel with frequency speed control, ensure the high quality of pellet feed.
Application
Widely used in large,medium and small aquaculture,grain feed factory,livestock farm,poultry farm,individual farmers, small and medium sized farms, as well as feed manufacturer plant.
Advantage of Animal Poultry Feed Pellet Processing Machine
1.SIEMENS Motor
2.SKF Bearing
3.Frequency conversion feeding motor
3.Plate is 2mm thicker than the common, durable to use
Technical Parameter of Animal Poultry Feed Pellet Processing Machine
| Items | SZLH250 |
| Production Capacity | 1-2t/h |
| Power of Main Motor | 22kw |
| Power of Feeding Screw Motor | 0.75 KW |
| Power of conditioner Motor | 1.5 KW |
| Diameter of ring die | Φ250mm |
| Speed of ring die(r/min) | 300rpm |
| Speed of feeding screw | 12-120rpm |
| Pellet specification | φ2,φ3,φ4,φ4.5,φ5,φ6,φ8,φ10mm |
| Amount of roller | 2 |
| Diameter of roller | Φ110mm |
| Shaping rate of pellet | ≥ 95% |
| Pulverization rate of pellet | ≤12% |
| Stability of pellet in the water | ≥20min |
| Noise (dB(A)) | ≤85dB(A) |
| Working temperature of ring die | ≤85℃ |
| Working pressure of steam | 0.3Mpa |
| Steam consumption(t/h) | 0.05 |
| Temperature of steam(℃) | 130-150℃ |
| Shape dimension | 2250*1430*2040mm |
| Voltage | 3phase 380V,50Hz Can be customized) |
| Control cabinet | Included |
